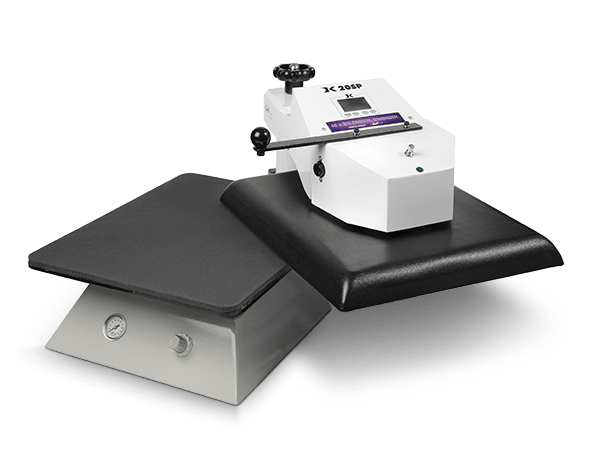

Digital Knight 16x20 Swinger | DK20S

• Digital Integrated Temperature & Time control
• Available in 230V 3-Phase or 480V 3-Phase Power
• Available in Single shuttle or Dual loading table format
• Multi Air Bag Pressure design for Self Leveling of Pressure (compressor req)
• Precision PLC Motor Controlled Automatic Indexing of Tables
• Uniform Lift / Parallel Platen Action & Adjustable Applied Force
• Productive Foot Pedal Operation & Emergency Release Safety Circuit
• Electronic Photo Eye Safety Sensor Light Curtain Around Heat Platen
• 2" Thick Solid Mirror Surface Ground Aluminum Heater Platen
• Oversized heat platens ranging up to 8ft x 12ft available on request

The 931 TRITON answers the demand for a more stable, solid work base along with the capability of pressing transfers in an oversized large-area environment. Typical applications include heat transfer printing onto fabrics such as banners & garments, thicker materials such as carpets & mats, rigid goods like tiles & ceramics, as well as woods, sheet metal, plastics, polyester coated synthetics and a vast range of other substrates. Typical processes used are sublimation printing, hot splits, foiling, embossing, laminating, hot-stamping, heat sealing and other applications requiring a massive size heat transfer press.

FREE LIFETIME Tech Support!

1 year warranty on parts

394-TS 16" x 20" Twin Shuttle Press

Air Compressor Required (min): 15gal, 2cfm, 100psi, 3/8" line

Weight: 850 Lbs

Electrical: 3600W / 17A / 220V

Shipping Dims: 60" W x 48" D x 55" H

394-MTS 20" x 25" Twin Shuttle Press

Air Compressor Required (min): 15gal, 2cfm, 100psi, 3/8" line

Weight: 950 Lbs

Electrical: 4500W / 21A / 220V

Dimensions: 60" W x 48" D x 55" H
