Professional Dual-Laser Engraving for Commercial & Production Use
The xTool F1 Ultra is a high-performance dual-laser engraver designed for shops, print businesses, and commercial users who need speed, precision, and material versatility in a compact footprint.

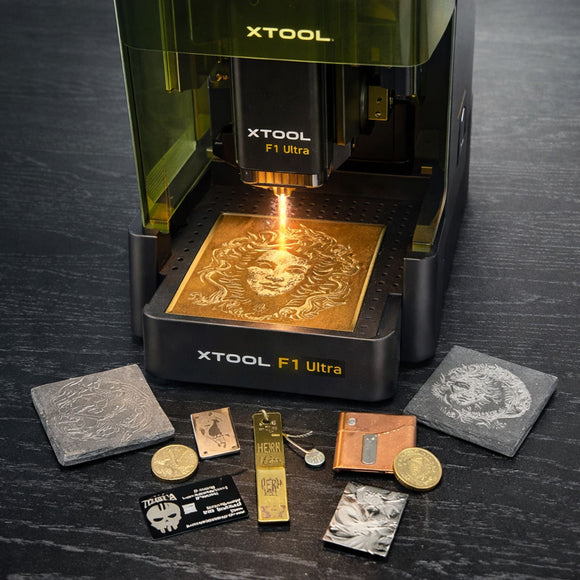

Featuring both a 20W fiber laser and a diode laser in one machine, the F1 Ultra allows you to engrave and mark metals, plastics, coated materials, wood, leather, acrylic, and more without switching machines.
As an authorized distributor, GPI Supplies provides expert guidance, dealer support, and expansion options tailored for professional workflows.
Ideal For
-
Print & sign shops
-
Apparel decorators & branding studios
-
Promotional product businesses
-
Small manufacturing & fabrication shops
-
Custom engraving services
Why Buy the xTool F1 Ultra from GPI Supplies
✔ Authorized dealer support
✔ Expert equipment consultation
✔ Expansion & accessory guidance
✔ Trusted commercial supplier
We don’t just sell equipment, we help businesses deploy it successfully.

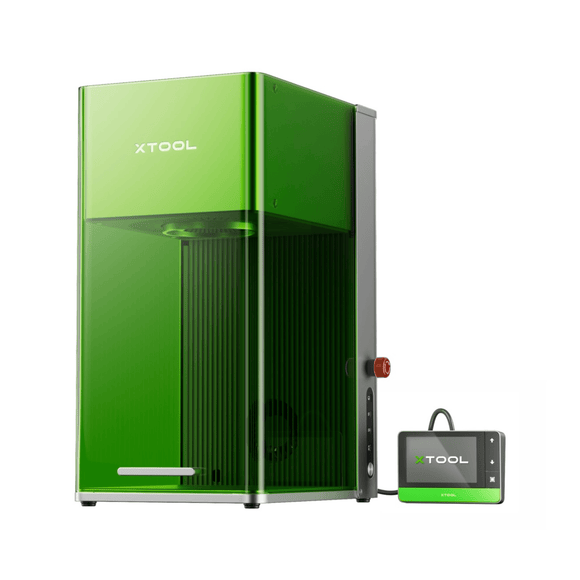

xTool F1 Ultra Dual-Laser Engraver
20W Fiber + Diode

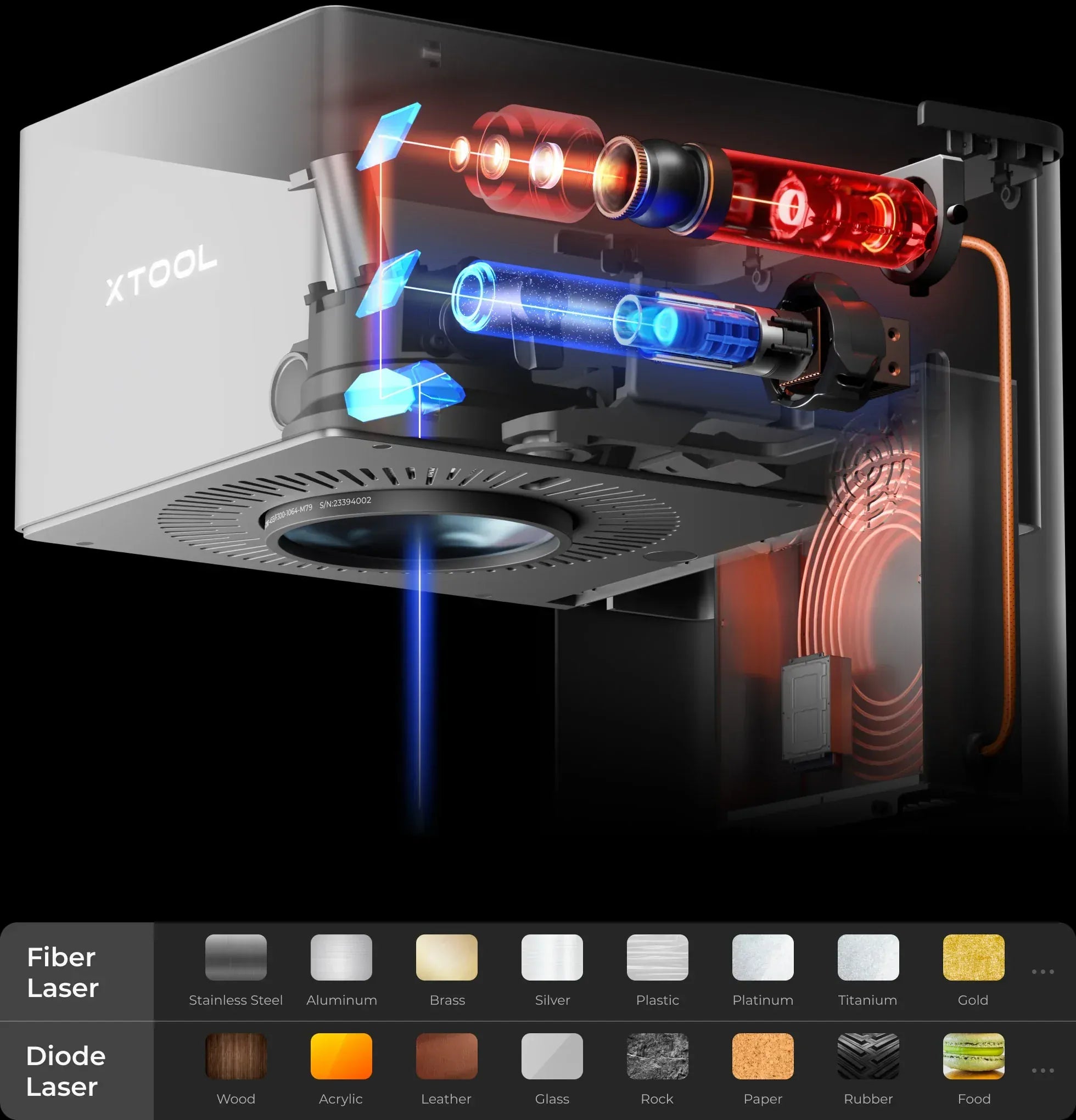

World's First 20W Fiber & 20W Diode Dual Laser
Why We Use This Engraver

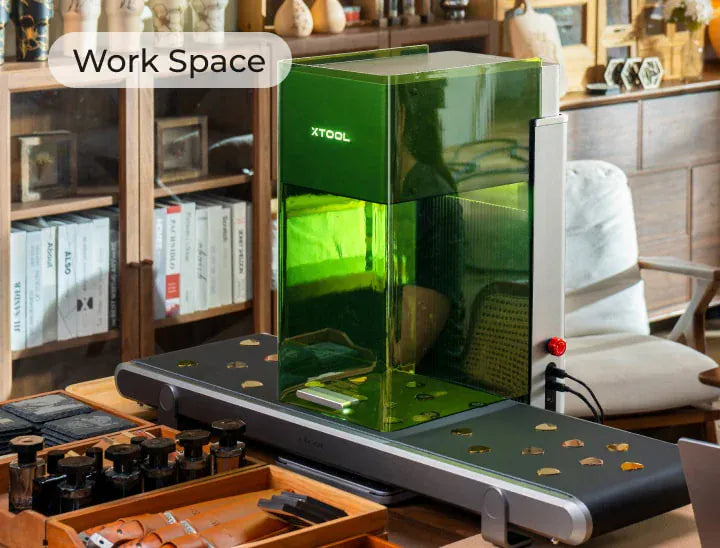

Batch Your Production
Create Your Own Shop
Is xTool F1 Ultra the Best Choice?

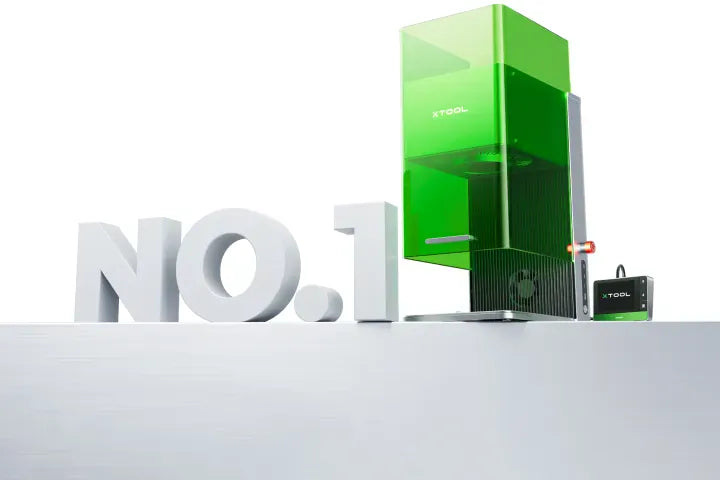

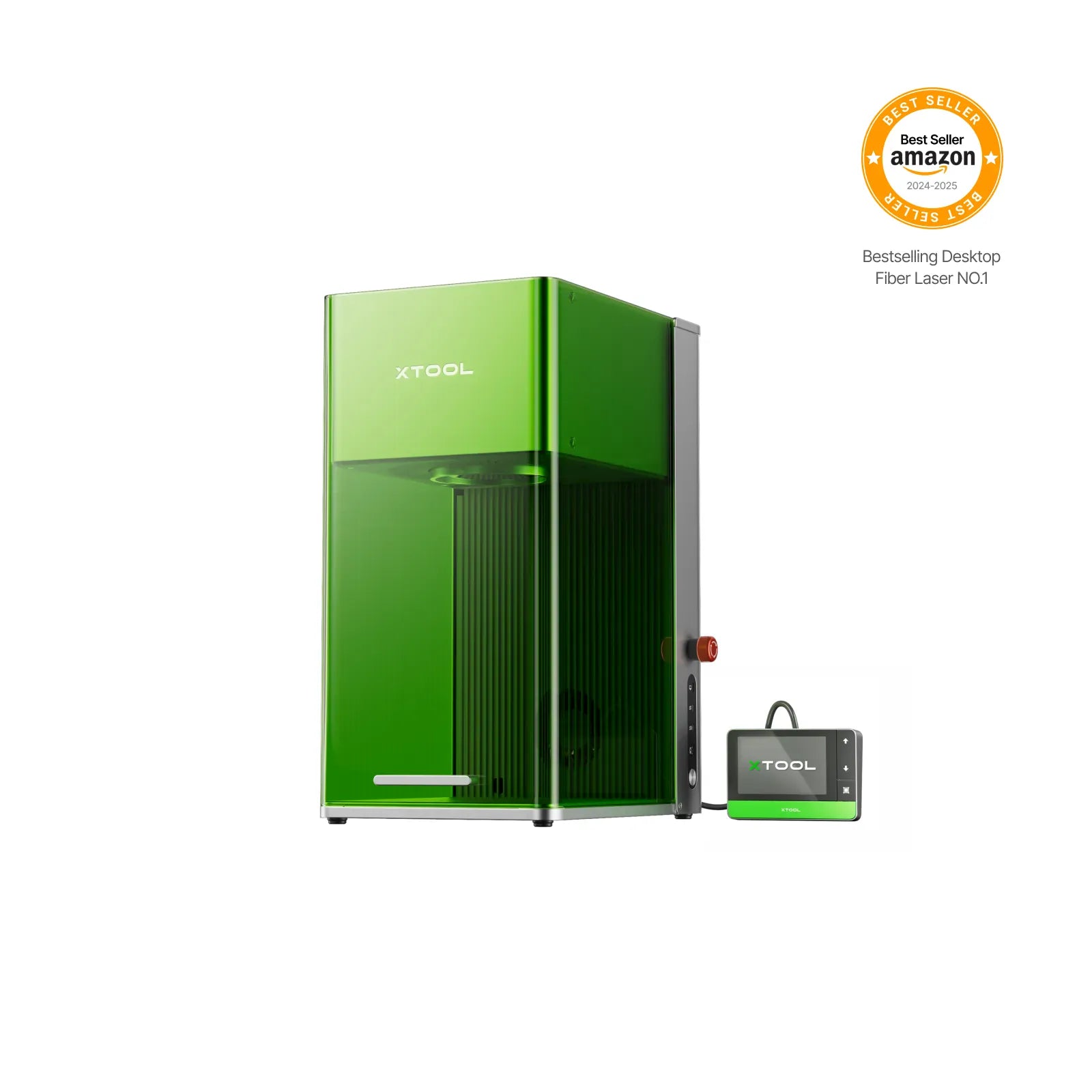

Bestselling Desktop Fiber Laser
Top-Rated by Leaders
Why xTool F1 Ultra Outperforms the Rest?
xTool F1 Ultra
Other Fiber Lasers
Materials Capability
Almost All Materials Applicable
Fiber & diode dual laser
Limited Materials
Only metals, plastic, and rock
Only fiber laser

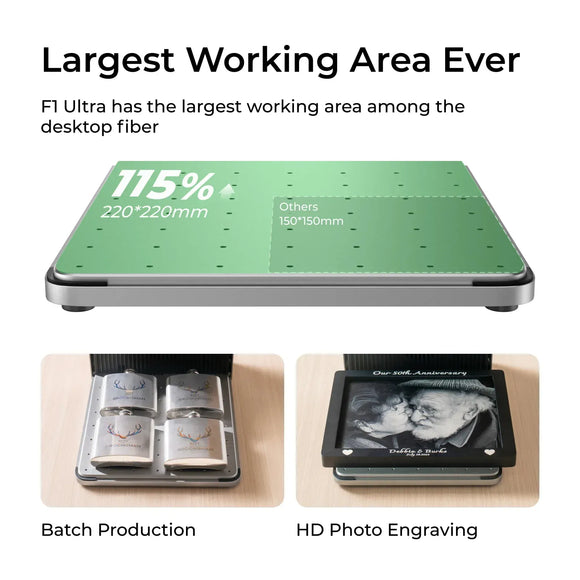

Working Area
Largest & Most Productive
220 × 220 mm
220 × 500 mm with conveyor
Limited Space
120 × 120 mm – 200 × 200 mm

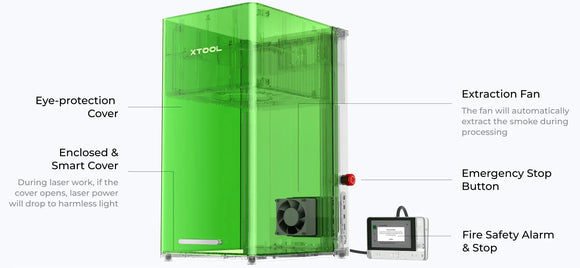

Safety
Fully Enclosed Safe Cover
Effective dust ventilation
No Protective Cover
Exposed to harmful dust
Camera
Smart & Easy to Use
16MP smart camera
Manual Positioning
No camera
Exclusive Technology

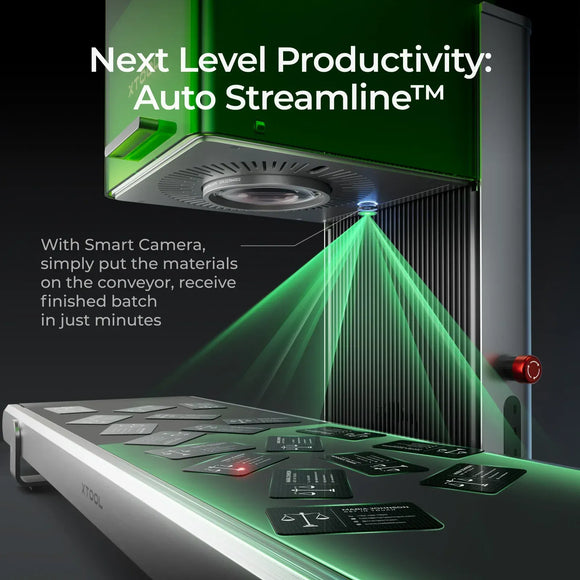

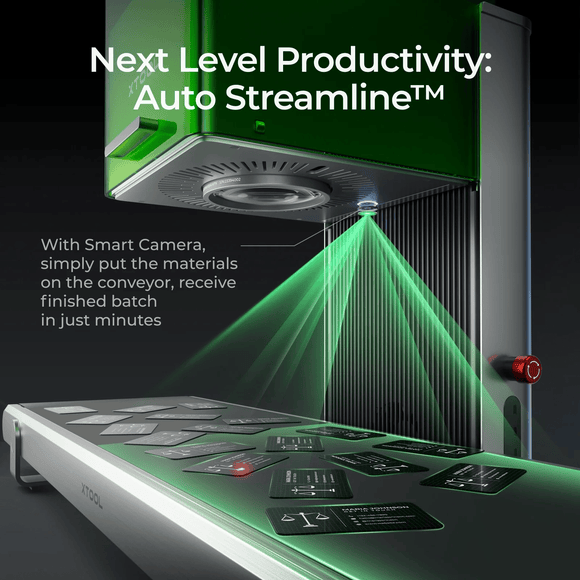

Auto Streamline™ Production
Manual Production

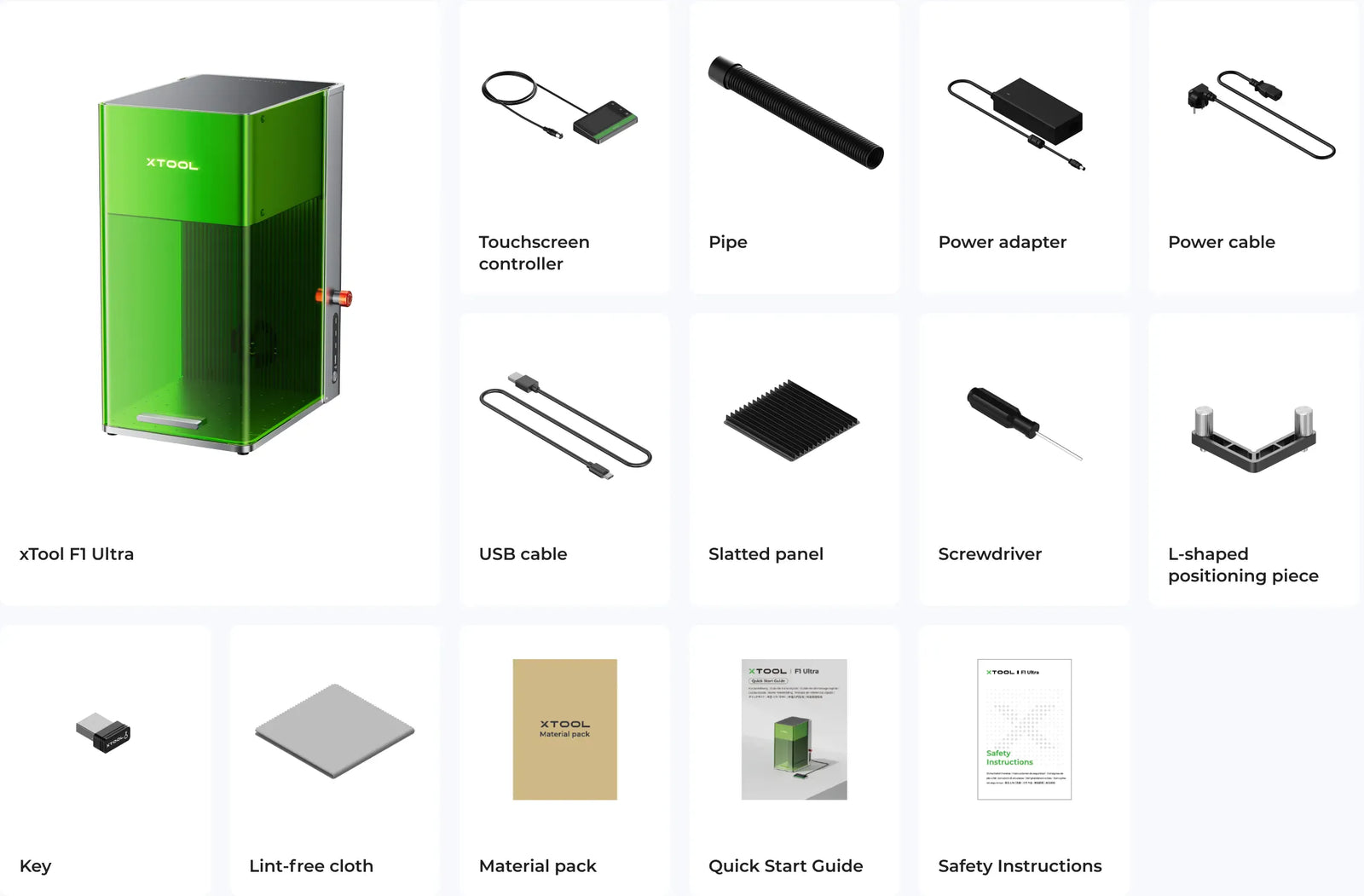

What’s Included with xTool F1 Ultra

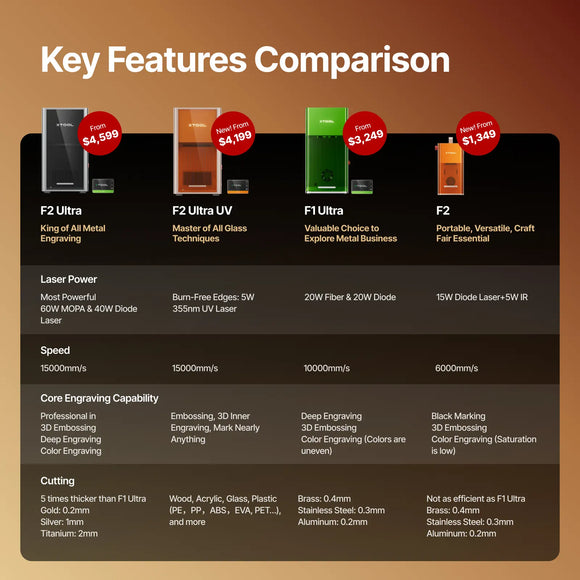

Compare Other xTool Options
Frequently Asked Questions About xTool F1 Ultra
What materials can the xTool F1 Ultra engrave?
The xTool F1 Ultra is a true dual-laser machine featuring a 20W fiber laser and a 20W blue diode laser. This allows it to engrave almost all common materials used in daily production.

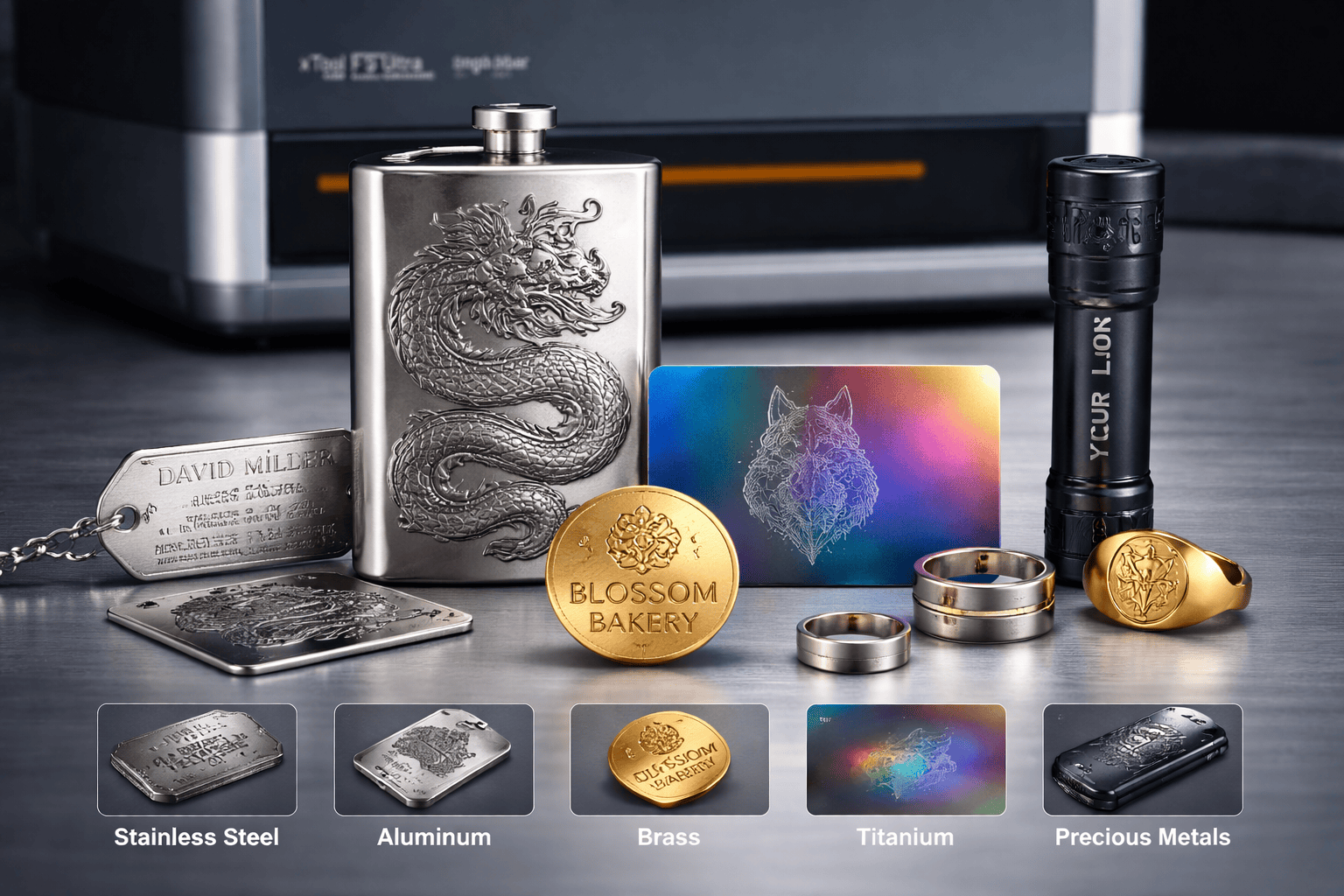

The diode laser performs best on wood, acrylic, leather, slate, glass, ceramic, and coated surfaces. The fiber laser engraves clearly on all metals, including stainless steel, aluminum, brass, gold, silver, iron, platinum, and many plastics.
Is the xTool F1 Ultra a real fiber laser?
Yes. The xTool F1 Ultra is a true fiber laser system. It uses an infrared (IR) laser source combined with a fiber gain medium, which is essential for generating high-power fiber laser output.
Unlike IR or DPSS lasers used in many desktop engravers, the fiber gain medium in the F1 Ultra enables deeper engraving and more efficient cutting at the same power level.
Can the xTool F1 Ultra cut metal?
Yes. The xTool F1 Ultra can deeply engrave, emboss, and cut thin metal sheets. It supports cutting up to:
- 0.4 mm brass
- 0.3 mm stainless steel
- 0.2 mm aluminum
Cutting is achieved using high-speed repeated passes for clean and precise results.
What is the working area of the xTool F1 Ultra?
The xTool F1 Ultra offers one of the largest working areas in a desktop fiber laser. Its standard engraving area is 220 × 220 mm.

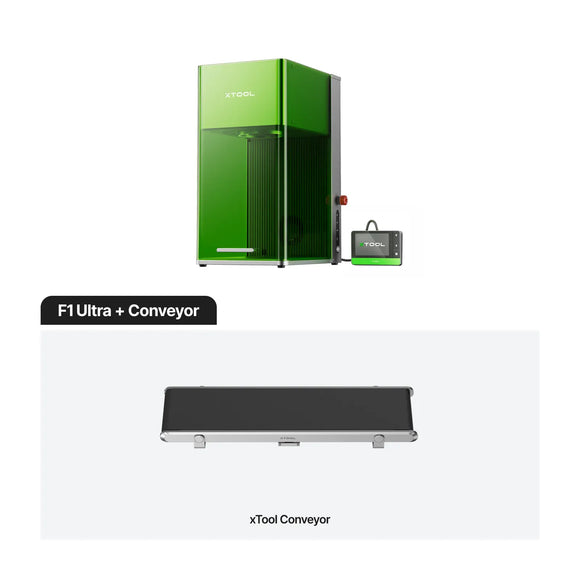

With the conveyor accessory, the working length expands up to 220 × 500 mm, making it ideal for batch production and long objects.
Does the xTool F1 Ultra require changing the field lens?
No. The xTool F1 Ultra does not require changing the field lens.
This is because it combines a large working area, microbeam technology for edge-to-edge detail, and a protected internal airflow system that keeps dust away from critical optical components.
What camera does the xTool F1 Ultra use?
The xTool F1 Ultra features an ultra-HD smart camera for accurate positioning and workflow efficiency. It delivers the same high-resolution performance found in the xTool F1.
The fiber laser compression spot is 0.03 × 0.03 mm, while the diode galvo laser compression spot is 0.08 × 0.1 mm.
What is the lifespan of the xTool F1 Ultra laser?
The xTool F1 Ultra is designed for long-term production use. Its laser system is rated for over 10,000 hours of active operating time under normal working conditions.

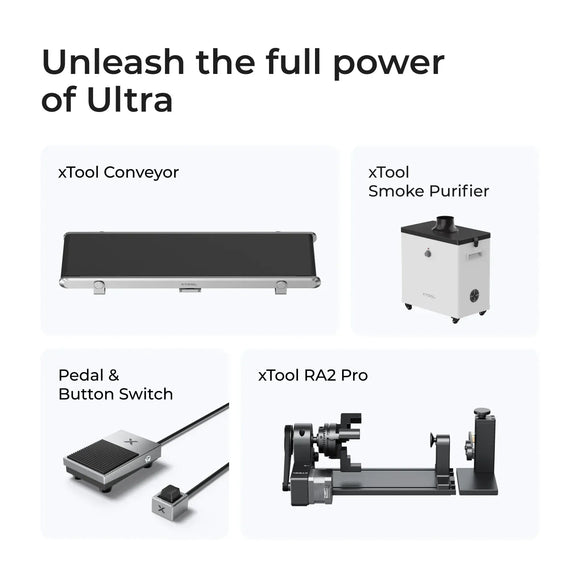

What accessories are compatible with the xTool F1 Ultra?

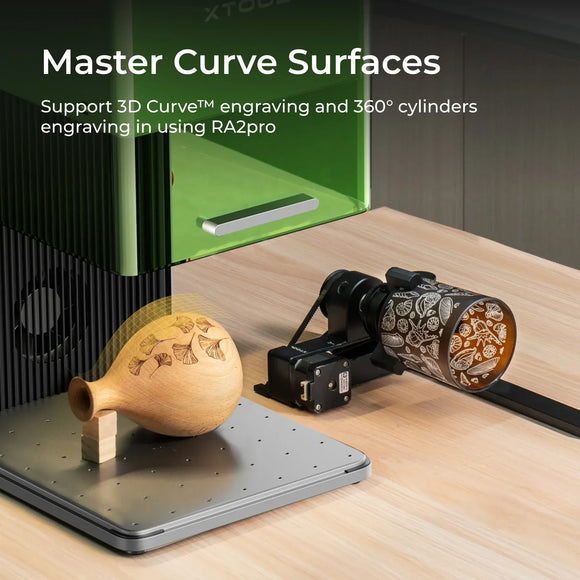

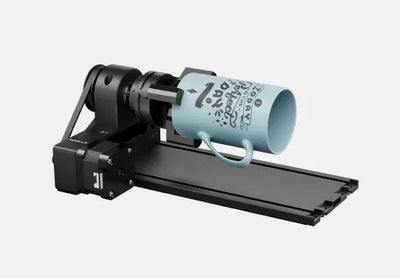

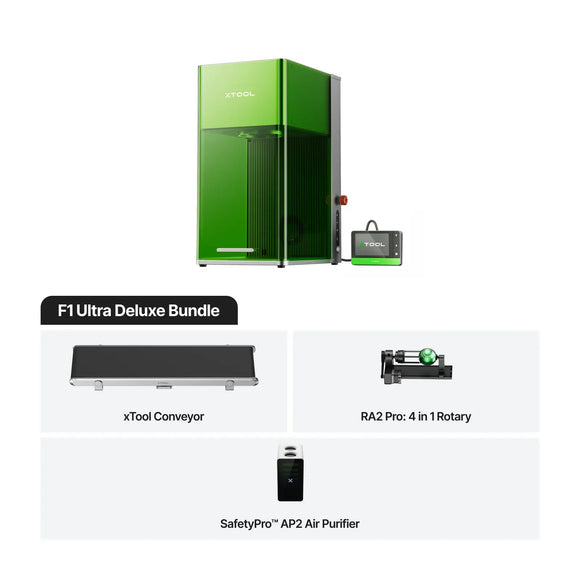

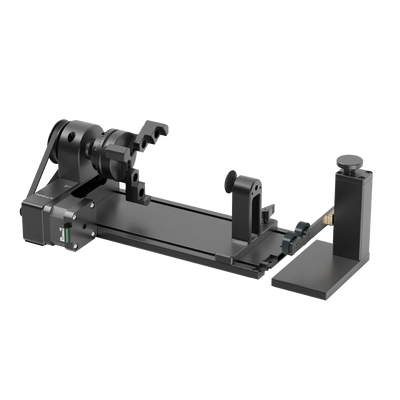

The xTool F1 Ultra is compatible with the RA2 Pro rotary attachment. For air filtration, xTool recommends the SafetyPro™ AP2 Air Purifier, which offers larger filters and a longer purification lifespan.
How much does the xTool F1 Ultra cost?
The xTool F1 Ultra has a listed retail price of approximately $3,599. Promotional pricing and rewards discounts may reduce the purchase price, depending on available offers and selected accessories.
What makes the xTool F1 Ultra different from the xTool F1?
The xTool F1 Ultra is designed for high-volume production and advanced material versatility. It combines dual 20W lasers, faster engraving speeds up to 10,000 mm/s, a larger working area, and Auto Streamline™ batch production.
The xTool F1 is more compact and portable, making it ideal for craft fairs, onsite personalization, and beginner users.
Can the xTool F1 Ultra adjust laser frequency?
Yes. The xTool F1 Ultra supports adjustable laser frequency ranging from 30 kHz to 60 kHz, allowing precise control for different materials and engraving effects.
