GeoKnight Heat Presses Geo Knight 931 Triton Large Format Heat Press Series

Geo Knight 931 Triton Large Format Heat Press Series

Size: 54 X 60 Manual Loading Single Station

$40,600.00

Overview Details Supplies Specs Instructions

The 931 TRITON answers the demand for a more stable, solid work base along with the capability of pressing transfers in an oversized large-area environment. Typical applications include heat transfer printing onto fabrics such as banners & garments, thicker materials such as carpets & mats, rigid goods like tiles & ceramics, as well as woods, sheet metal, plastics, polyester coated synthetics and a vast range of other substrates. Typical processes used are sublimation printing, hot splits, foiling, embossing, laminating, hot-stamping, heat sealing and other applications requiring a massive size heat transfer press.

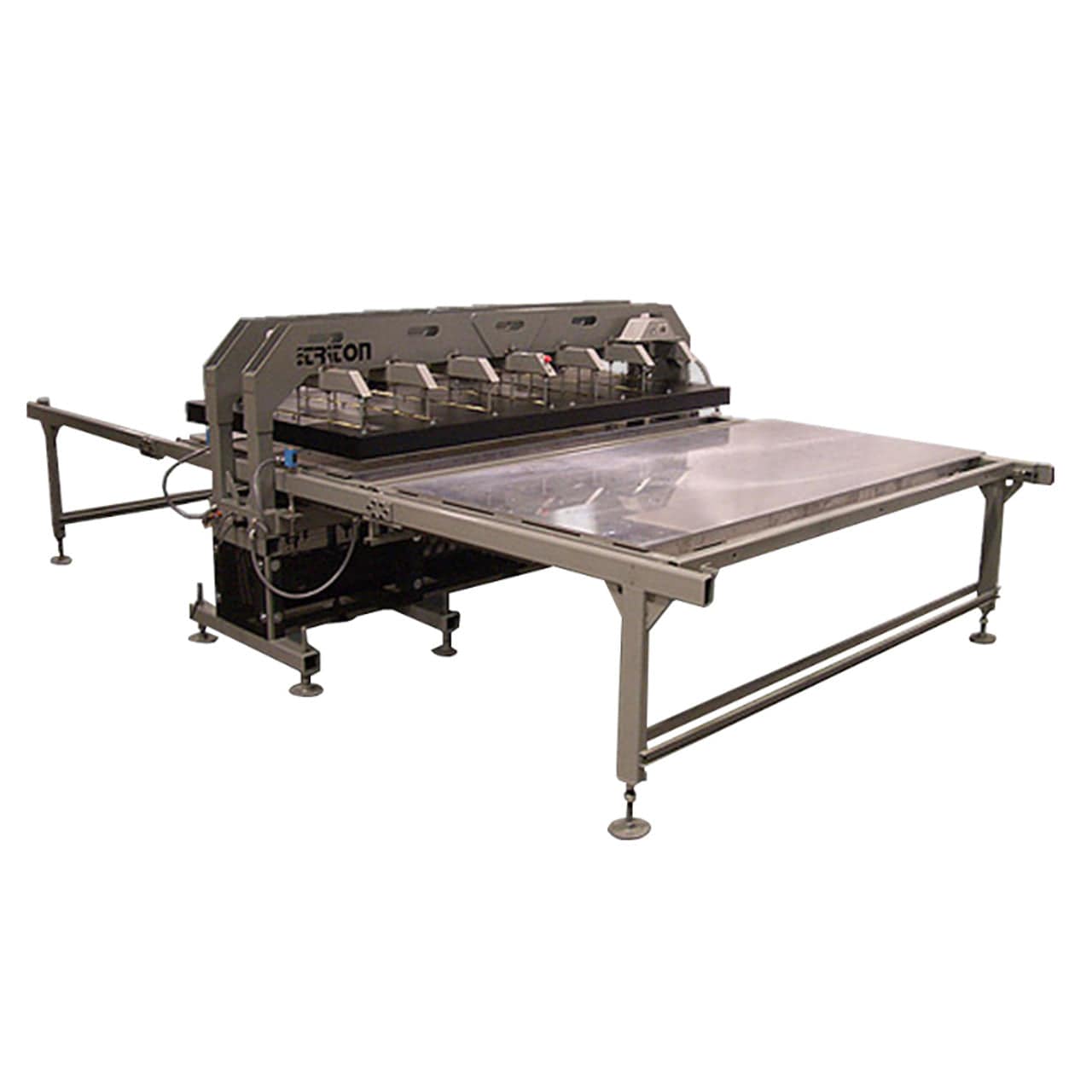

Geo Knight 931 Triton Large Format Heat Press

The 931 TRITON presses are air operated automatic large format twin station shuttle presses that range in platen sizes up to 4 feet by 8 feet standard, and 8 feet by 12 feet custom!

Ideal Applications Include

  • Large fabrics & piece goods
  • Full-bleed printed sportswear panels
  • Banners
  • Floor mats
  • Carpets and more

The 931 TRITON is a large format pneumatic heat transfer press built for pressing a wide variety of materials. It is geared towards high-production pressing of multiple piece goods as well as 4' x 8' sheet materials.

Geo Knight 931 Triton Large Format Heat Press
Download Triton PDF Brochure & Pricing

Key Features

  • Digital Integrated Temperature & Time control
  • Available in 230V 3-Phase or 480V 3-Phase Power
  • Available in Single shuttle or Dual loading table format
  • Multi Air Bag Pressure design for Self Leveling of Pressure (compressor req)
  • Precision PLC Motor Controlled Automatic Indexing of Tables
  • Uniform Lift / Parallel Platen Action & Adjustable Applied Force
  • Productive Foot Pedal Operation & Emergency Release Safety Circuit
  • Electronic Photo Eye Safety Sensor Light Curtain Around Heat Platen
  • 2" Thick Solid Mirror Surface Ground Aluminum Heater Platen
  • Oversized heat platens ranging up to 8ft x 12ft available on request


The 931 TRITON answers the demand for a more stable, solid work base along with the capability of pressing transfers in an oversized large-area environment. Typical applications include heat transfer printing onto fabrics such as banners & garments, thicker materials such as carpets & mats, rigid goods like tiles & ceramics, as well as woods, sheet metal, plastics, polyester coated synthetics and a vast range of other substrates. Typical processes used are sublimation printing, hot splits, foiling, embossing, laminating, hot-stamping, heat sealing and other applications requiring a massive size heat transfer press.

PRICING

Available in Twin Station or Single Station loading table configurations. (Twin station automatic 54x103 shown)

Smaller sizes are available without automatic table indexing. (Operator Manually shuttles loading table)

54 X 60 Manual Loading Single Station $ 40,600.00
54 X 60 Auto-Shuttle Single Station $ 42,700.00
54 X 60 Auto-Shuttle Twin Station $ 45,800.00
54 X 72 Manual Loading Single Station $ 42,600.00
54 X 72 Auto-Shuttle Single Station $ 44,700.00
54 X 72 Auto-Shuttle Twin Station $ 48,800.00
54 X 84 Auto-Shuttle Single Station $ 48,700.00
54 X 84 Auto-Shuttle Twin Station $ 53,800.00
54 X 103 Auto-Shuttle Single Station $ 53,700.00
54 X 103 Auto-Shuttle Twin Station $ 58,700.00

Warranty

FREE LIFETIME Tech Support!

1 year warranty on parts

Industrial Air Bag Pneumatics provide many times heavier pressing force than cylinders. They are also selfleveling and 100% maintenance free.

Photo Eye safety circuitry provides safety protection around the heat platen.

Redundant Micro Switches confirm location of loading tables before beginning pressing cycle.

High-Strength Roller Cams & smooth computer controlled indexing allow the loading tables to quietly & gently bring the work in and out of the pressing area.

High Wattage Fire Rod Heaters are embedded deep in the core of the extra thick 2" aluminum heat platen. The platen is gun-barrel drilled and heaters are placed in close proximity along the entire length of the heat platen for the most even heat possible over the entire heat platen surface.

Product Type Heat Presses
Heat Press Type Manual
Single

Instructions for the Geo Knight 931 Triton Large Format Heat Press Series

No additional instructions found for this product.
