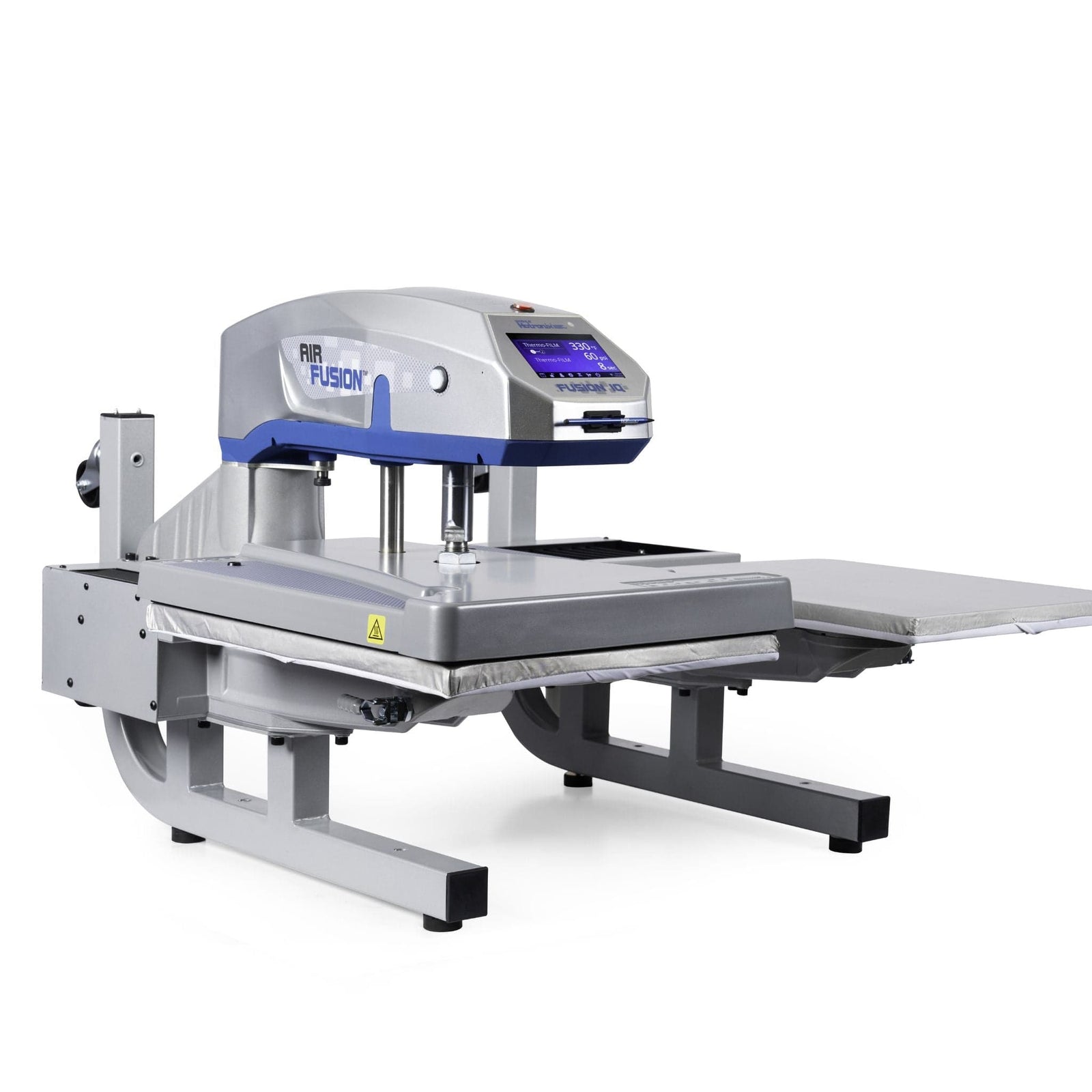

Hotronix® Dual Air Fusion™ 16x20 Heat Press

• Dual Air Fusion Heat Press
• Dual Air Fusion with Integrated ProPlace IQ
• Retrofit ProPlace IQ Computer
• Dual Air Fusion ProPlace IQ™ 120v

• 16" x 20" Dual Quick Change Platens
• Cloud-based time and temperature settings for transfers
• Bright, large LCD with a wide viewing angle
• Self-Diagnostic ability reduces guesswork and tech support calls
• Password restricted machine settings
• Machine statistics available via Fusion IQ website
• Manage multiple Fusion IQs via web with minimal effort
• Auto-Adjust Pressure automatically adjusts to the thickness of the item being printed
• Fully Threadable on the lower platen: position the garment, rotate, and decorate any area
• Dual platens allow a heat-free workspace on one platen while the other is being pressed
• Perfect for Direct-to-Garment printing – cut production time in half by programming one station for pre-treatment and the other for curing
• Rodless transmission for smooth, quiet operation
• Operates in full-auto, semi-auto, or manual modes
• Included laser alignment system helps ensure accurate placement and alignment
• Touch screen stores frequently used settings, production cycle counter, and auto on/off capability
• 120 PSI for high-pressure applications
• Optional quick-change platens; no tools required
• Program up to four different pressure and time settings
• Requires air compressor (not included) with minimum 1 horsepower and 5-gallon hold tank. Uses 2.3 CFM
• Recommended table size: 24" x 36" x 28" with 30" height
• Not compatible with Hotronix Air Compressor

Optional Platens:

• 7" round
• 6" x 10"
• 8" x 10"
• 11" x 15"



Introducing the Hotronix® ProPlace IQ™, a cutting-edge addition to the renowned Dual Air Fusion heat press. Experience the unmatched power of precision printing, rapid production, and heightened efficiency with this revolutionary system.

Paired with the best-selling Hotronix® Dual Air Fusion heat press, the ProPlace IQ™ features a patented projection alignment system, ensuring the perfect print every time. Custom designs are projected directly onto blank garments, enabling decorators to swiftly and accurately align transfers. This innovative system eliminates errors, saves valuable production time, and reduces waste, making it an essential tool for your printing needs.

The Retrofit ProPlace IQ Computer is designed to enhance your existing Dual Air Fusion Heat Press with advanced projection alignment technology. Easily integrate this system into your current setup to achieve unparalleled precision and efficiency in your heat pressing operations.

For detailed installation instructions, including setting up the integrated unit and the retrofit, please refer to the Hotronix Dual Air Fusion Assembly & Operation Instructions for ProPlace IQ and Retrofit in the Details tab on this product listing.

Whether your customers are operating out of their home, a strip mall, garage or small warehouse, they can take their business to the next level with the ultimate heat printing efficiency of the Dual Air Fusion IQ! This option is now available for both the Dual Air Fusion IQ and ProPlace IQ, and can be used in standard electrical outlets.

Please note that a dedicated circuit breaker is still required as with all our heat presses. We encourage you to communicate this to your customer and make a notation on your website.
