Mimaki UV Printer Mimaki JFX200-2513 EX 4' x 8' UV Flatbed Printer

Mimaki JFX200-2513 EX 4' x 8' UV Flatbed Printer

1 Year Warranty

  • Print on one 4’ x 8’ board or a variety of pre-cut pieces up to 2” thick.
  • Maximum print speed of up to 12 boards per hour
  • Three staggered printheads for simultaneous printing when using white and clear inks
  • Foot pedal to easily control vacuum when loading media

$76,994.00

Overview Details Supplies Specs Instructions

The Mimaki JFX200-2513EX transforms your shop into a high-value production center by combining true 4′× 8′ UV-LED flatbed printing with speeds up to 200 m²/h in a cost-effective entry model. Its 2.5D Texture Maker and white ink circulation deliver striking textured graphics, while the 60 mm thick-media bed and dual-zone vacuum table adapt to everything from signs to dimensional décor. User-focused front-access controls and RasterLink RIP ensure you hit deadlines with minimal downtime

Features:

  • 4′ × 8′ Print Bed
  • 200 m²/h Draft Mode
  • 2.5D Texture Maker
  • White Ink Circulation
  • 60 mm Media Thickness

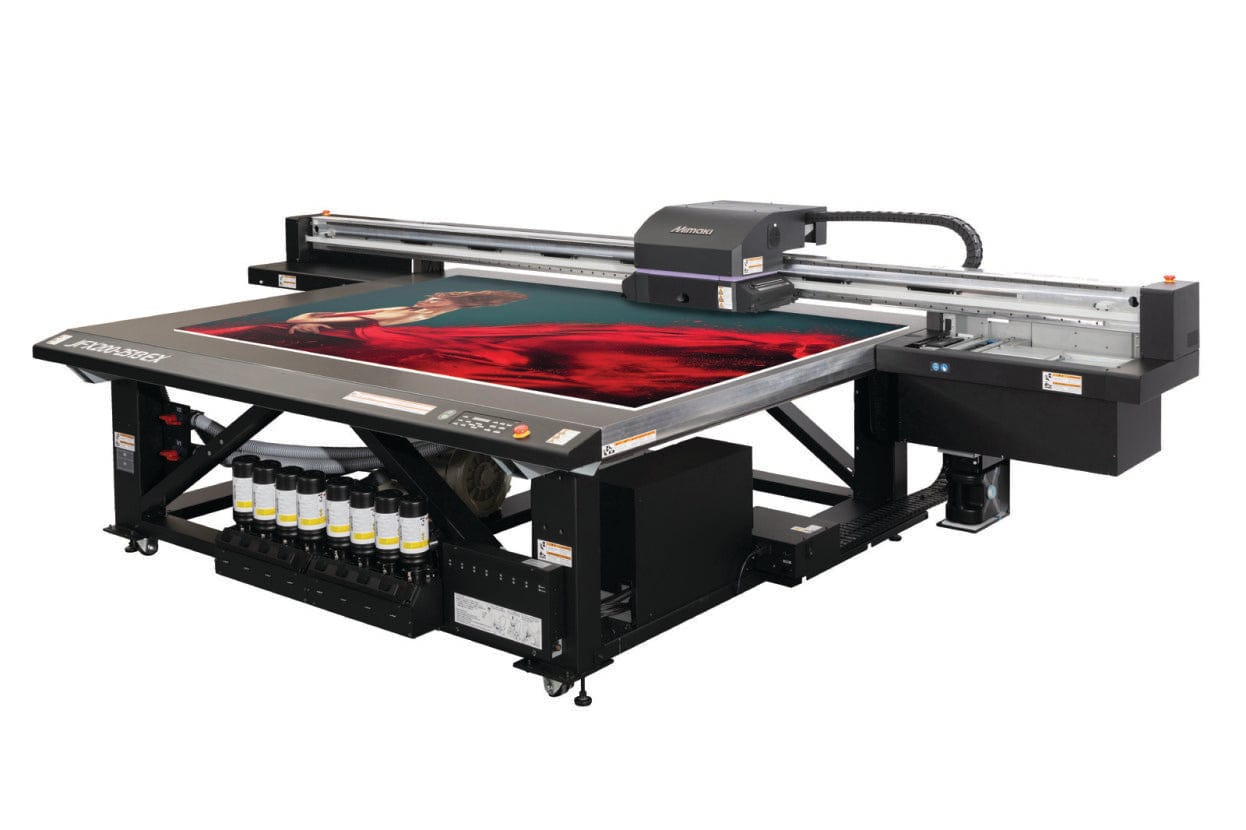

Mimaki JFX200-2513EX

Flatbed UV Printer

The Mimaki JFX200-2513EX transforms your shop into a high-value production center by combining true 4′× 8′ UV-LED flatbed printing with speeds up to 200 m²/h in a cost-effective entry model. Its 2.5D Texture Maker and white ink circulation deliver striking textured graphics, while the 60 mm thick-media bed and dual-zone vacuum table adapt to everything from signs to dimensional décor. User-focused front-access controls and RasterLink RIP ensure you hit deadlines with minimal downtime

Features:

  • 4′ × 8′ Print Bed
  • 200 m²/h Draft Mode
  • 2.5D Texture Maker
  • White Ink Circulation
  • 60 mm Media Thickness
Mimaki JFX200-2513EX
Download Datasheet

Compact Design, Maximum Output

Large Print Area

Large Print Area Supports media up to 2,500 × 1,300 mm (98.4" × 51.2") for true 4′× 8′ applications.

High-Speed Production

High-Speed Production Three staggered heads and draft mode ramp print speeds to 200 m²/h for rapid turnaround.

2.5D Texture Maker

2.5D Texture Maker RasterLink6Plus-driven embossing delivers up to 17 layered textures from a single grayscale image.

White Ink Circulation

White Ink Circulation MCT ensures continuous white ink flow for even coverage on dark or clear substrates.

Thick-Media Capability

Thick-Media Capability Prints on boards and objects up to 60 mm thick, expanding into dimensional signage.

Dual-Zone Vacuum Table

Dual-Zone Vacuum Table Independently controlled vacuum zones hold varied media sizes securely during printing.

Nozzle Recovery System

Nozzle Recovery System Automatic nozzle check and recovery minimize downtime and maintain print quality.

Eco-Friendly LED-UV Curing

Eco-Friendly LED-UV Curing LED-UV lamps reduce energy use and VOCs while delivering fast, uniform curing.

Know before you buy

Choose what type of signage or packaging you are creating to outfit this flatbed printer with the correct ink set up.

Items included with the Mimaki JFX200-2513 EX 4' x 8' UV Flatbed Printer

  • Dual-zoned vacuum table and user-adjustable layout pins
  • Foot pedal to easily control vacuum when loading media
  • Nozzle Recovery System and Nozzle Check Unit
  • Variable Dot Technology and Mimaki Advanced Pass System (MAPS) for smooth gradients and solids
  • Greenguard Gold
  • UV-LED inks in 4 and 6 color configurations plus Clear, Primer and White
  • Updated RasterLink6 Plus to support textured print workflows (2.5D)
  • USB/Ethernet connectivity

Mimaki DTG Supplies PR-200 Ink Primer 1L Bottle

PR-200 Ink Primer 1L Bottle

$339.00
Mimaki ink Mimaki LH-100 UV Ink 1 liter / Yellow Mimaki LH-100 UV Ink Mimaki ink Mimaki LH-100 UV Ink 1 liter / Cyan Mimaki LH-100 UV Ink

Mimaki LH-100 UV Ink

From
$77.00
View
Mimaki UV Cleaning Mimaki UV Maintenance Liquid 07 | 1L

Mimaki UV Maintenance Liquid 07 | 1L

$62.00
Mimaki UV Cleaning Mimaki UV Maintenance Liquid 15 (100ml Bottle) Mimaki UV Cleaning Mimaki UV Maintenance Liquid 15 (100ml Bottle)

Mimaki UV Maintenance Liquid 15 (100ml Bottle)

$37.00
Mimaki UV Cleaning PR-200 Maintenance Liquid

PR-200 Maintenance Liquid

$37.00
Save
$12.43
STS DTF Film Propeel UV Transfer Film STS DTF Film Propeel UV Transfer Film

Propeel UV Transfer Film

$229.00 | $241.43
Mimaki Parts Mimaki Kebab MKII Series Mimaki Parts Mimaki Kebab MKII Series

Mimaki Kebab MKII Series

From
$3,026.00
View
Mimaki Parts Mimaki Kebab HS Rotary System Mimaki Parts Mimaki Kebab HS Rotary System

Mimaki Kebab HS Rotary System

$6,599.00

Printhead

JFX200-2513 EX: Three on-demand piezo heads in a staggered array
JFX200-2531: Two on-demand piezo heads in a staggered array

Print resolution

JFX200-2513 EX: 300, 450, 600, 900, 1,200dpi

Print Speed (4 Color Mode)

JFX200-2513 EX: up to 377 SqFt/Hr (31.9 m2/h)
JFX200-2531: up to 269 SqFt/Hr (25 m2/h)

Maximum Print Area

JFX200-2513 EX: 98.4″ x 51.2″ (2500 x 1300 mm)
JFX200-2531: 98.4″ x 122.0″ (2500 x 3100 mm)

Maximum media area

up to 101.6” x 80.3”

Maximum Media Thickness

up to 1.97″ (50 mm)

Maximum Media Weight

110.3 lbs. (50.0 kg)

Ink Type

JFX200-2531: Rigid: LH-100, Flexible: LUS-120, LUS-150, LUS-200 Thermoforming: LUS-350

JFX200-2513 EX: Rigid: LH-100, Flexible: LUS-120, LUS-150, Thermoforming: LUS-350

Interface

JFX200-2531: USB2.0 Hi-speed
JFX200-2513 EX: Ethernet 1000BASE-T USB2.0 Hi-speed

Power Supply

JFX200-2513 EX: Single phase, 200 V AC-240 V AC, 50 Hz/60 Hz, less than 12 A

JFX200-2531: Single-phase AC200-240V 12A or less, 8A or less (Two inlets)

Power Consumption

JFX200-2513 EX: AC200V: 2.88 kVA or less
JFX200-2531: AC200V: 4.8 kVA

Operational Environment

Temperature 59° – 86° F (15-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

JFX200-2513 EX: 173.2″ x 96.4″ x 49.2″ (439.9 x 244.9 x 125 cm)
JFX200-2531: 173.2″ x 168.9″ x 49.2″ (439.9 x 429 x 125 cm)

Weight

JFX200-2513 EX: 1433 lbs. (650 kg)
JFX200-2531: 2205 lbs. (1000 kg)

Certifications

JFX200-2513 EX: VCCI class A, CE mark, CB report, U.S. safety standard UL (UL62368-1), RoHS Directive, FCC Class A, Machinery directive, EAC, RCM

JFX200-2531: VCCI CLASS A / FCC CLASS A / ETL UL60950-1 /CB / CE Marking (EMC, Low voltage, machinery directive and RoHS)

Instructions for the Mimaki JFX200-2513 EX 4' x 8' UV Flatbed Printer

No additional instructions found for this product.
