Mimaki laminator Mimaki LA-160W Heat Assisted Laminator

Mimaki LA-160W Heat Assisted Laminator

In Stock and Ready to Ship!

$7,072.00

Overview Details Supplies Specs Instructions

Its heat-assisted technology ensures superior adhesion, particularly on surfaces printed with UV-LED ink, eliminating the dreaded silvering effect common with pressure-sensitive laminates. Ideal for achieving professional-grade prints of the highest quality.

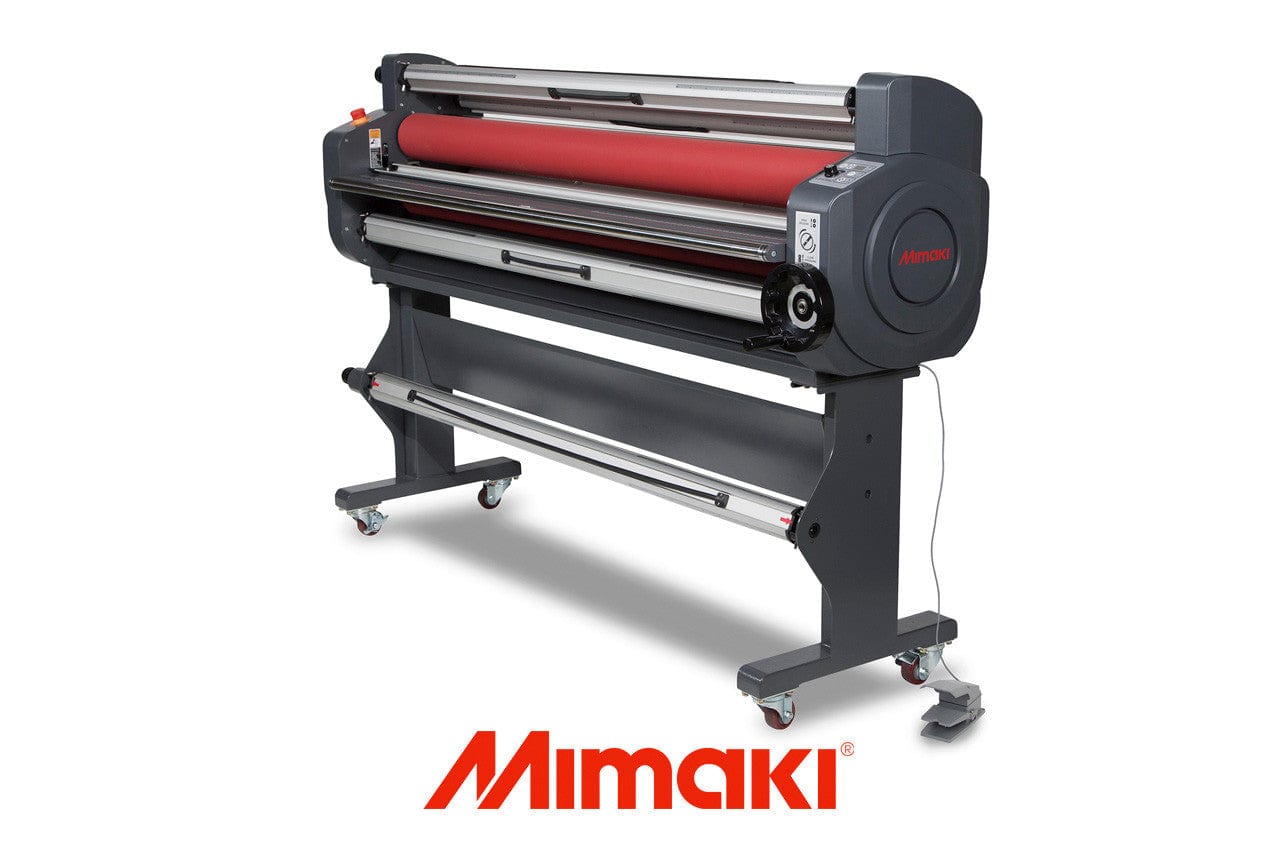

Get flawless laminated prints with Mimaki's LA-160W Heat Assisted Laminator!

Its heat-assisted technology ensures superior adhesion, particularly on surfaces printed with UV-LED ink, eliminating the dreaded silvering effect common with pressure-sensitive laminates. Ideal for achieving professional-grade prints of the highest quality.

Get flawless laminated prints with Mimaki's LA-160W Heat Assisted Laminator!
Download Brochure

Key Features:

  • Achieve fast throughput speeds of up to 295 linear inches per minute.
  • Streamlined operations with all functions accessible from one panel.
  • Convenient access to pressure handle and foot pedal for easy use.
  • Simplified operation with a take-up reel, enabling one-person operation of the entire process.
  • Specifically engineered for use with Mimaki Vision Laminate 310 (gloss) film.

With a maximum width of 62.2 inches, the LA-160W ensures efficient processing while maintaining ease of use. Enhance your workflow with this reliable laminator, compatible with Mimaki Vision Laminate film and our range of roll-to-roll printers.

Maximum processing width

62.2″ (1,580 mm)

Roller diameter

4.72″ (120 mm)

Processing thickness

1.38″ (35 mm max.)

Processing temperature

From room tempereture to 60 °C (140 °F)

Processing speed

0 to 295.3″ min (0 to 7500 mm/min)

Core diameter

3 inch

Power

USA: 120V | EU: 230V | other: 100V

Rated current

USA: 14A | EU: 8A | other: 15A

Power consumption

1800W or less

Preheating time

About 30 minutes

Pedal swich

One

Attachment shaft (with measure scale)

3″ x 5 pcs.

Dimensions (W×D×H)

78.7″ x 21.7″ x 50.4″ (2,000 x 550 x 1,280 mm)

Weight

451.9 lbs. (205 kg)

Instructions for the Mimaki LA-160W Heat Assisted Laminator

No additional instructions found for this product.

Applications

drag for more

garmentprinterink mascot inky dressed as an explorer

Explore the Mimaki LA-160W Heat Assisted Laminator
