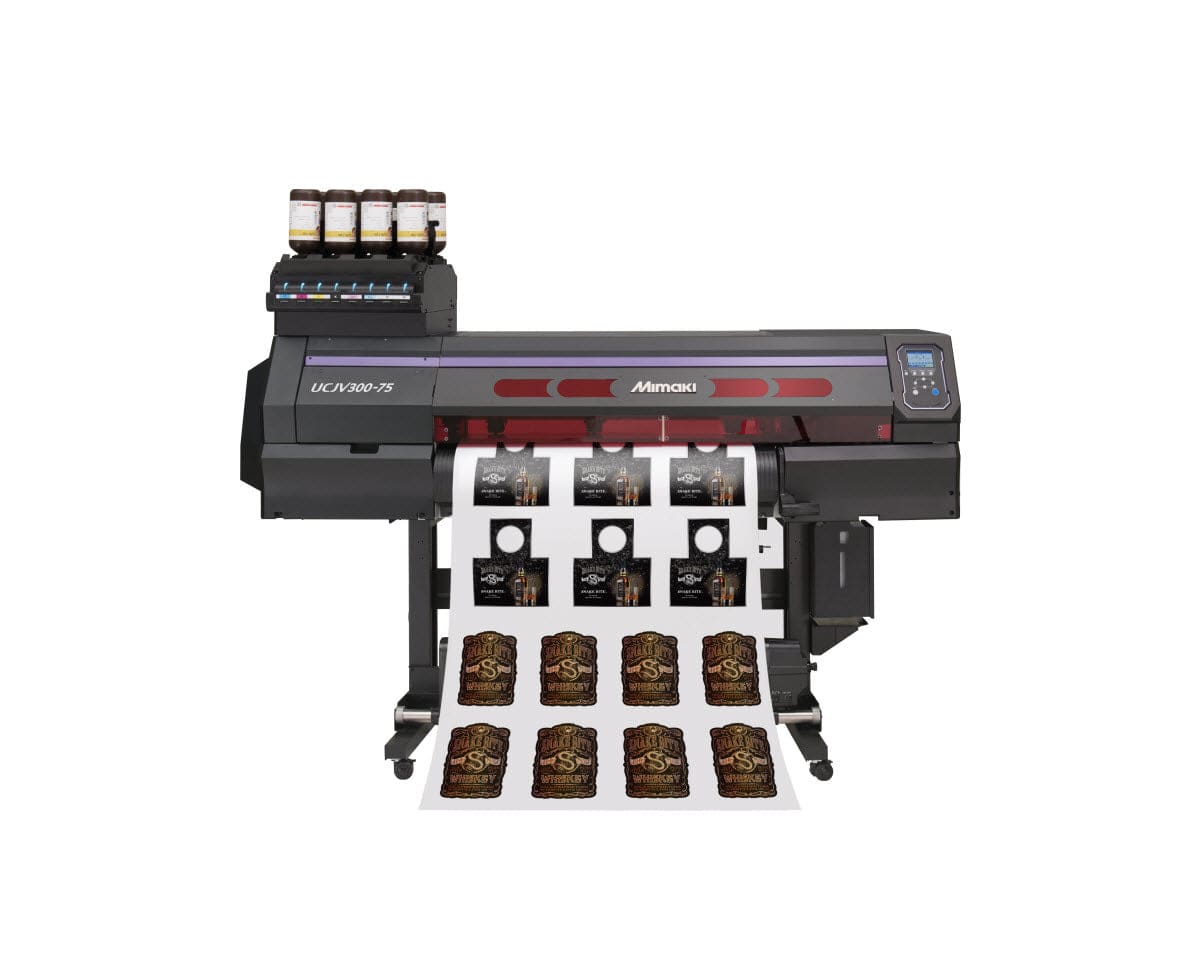

Mimaki UCJV300 Series UV-LED Printer/Cutter

Multi-Layer "Day & Night" Printing
5 Layer "Front & Back" Printing
Widest range of printing materials

Model: UCJV300-75 31" UV Print Cut

$20,785.00 Save $-20,785

Overview Details Supplies Specs Instructions

The Mimaki UCJV300 Series printer allows you to create a wide variety of stickers thanks to its versatile UV-LED technology and print-and-cut capabilities. You can print custom vinyl stickers that are durable and weather-resistant for both indoor and outdoor use, as well as die-cut stickers that can be shaped to any design. Clear stickers printed on transparent vinyl are perfect for minimalist designs or glass surfaces, while holographic stickers offer an eye-catching, reflective surface. Matte stickers provide a sleek, modern look, and glossy stickers are ideal for vibrant, colorful designs.

The printer is also suitable for producing label stickers for product labeling and packaging, bumper stickers that are durable and weatherproof, and window decals designed for glass surfaces in storefronts and vehicles. Additionally, it can create large wall decals for interior decoration or branding, durable floor stickers for commercial spaces, reflective stickers for safety applications, and multi-layer stickers for transitional or double-sided images. Furthermore, the UCJV300 Series supports eco-friendly printing with GREENGUARD Gold certified UV-LED inks, making it ideal for environmentally conscious applications. This advanced printer handles diverse sticker printing needs, offering high-quality, durable, and vibrant results for various applications.

Mimaki UCJV300 Series UV-LED Printer/Cutter

Leading the Way in UV-LED Technology

Mimaki is thrilled to lead the charge in UV-LED printing innovation! Our cutting-edge technologies have enhanced print quality, speed, and versatility, making the UCJV300 Series a game-changer for businesses of all kinds. This print-and-cut family offers incredible in-line cutting capabilities and multi-layer printing for stunning transitional or double-facing images. With instantly cured graphics, you can quickly produce applications that not only meet but exceed your customers' expectations.

Mimaki UCJV300 Series UV-LED Printer/Cutter

Download Datasheet

Our advanced print-and-cut machines come with a host of benefits:

Available in 31”, 42”, 54”, and 64” sizes with impressive print speeds up to 277.7 SqFt/Hr
Unmatched media versatility with exceptional scratch resistance
Combined print and cut functionality in one efficient unit
Instantly cured prints for faster turnarounds and cost savings
Eco-friendly UV-LED inks with low VOC, GREENGUARD Gold certification
Reliable warranties: 3M™ MCS™ on LUS-200 inks and Avery Dennison™ ICS™ Performance Guarantee on LUS-170/LUS-200 inks
Includes RIP software RasterLink6 Plus with ID cut function

The Mimaki UCJV300 Series printer allows you to create a wide variety of stickers thanks to its versatile UV-LED technology and print-and-cut capabilities. You can print custom vinyl stickers that are durable and weather-resistant for both indoor and outdoor use, as well as die-cut stickers that can be shaped to any design. Clear stickers printed on transparent vinyl are perfect for minimalist designs or glass surfaces, while holographic stickers offer an eye-catching, reflective surface. Matte stickers provide a sleek, modern look, and glossy stickers are ideal for vibrant, colorful designs.

The printer is also suitable for producing label stickers for product labeling and packaging, bumper stickers that are durable and weatherproof, and window decals designed for glass surfaces in storefronts and vehicles. Additionally, it can create large wall decals for interior decoration or branding, durable floor stickers for commercial spaces, reflective stickers for safety applications, and multi-layer stickers for transitional or double-sided images. Furthermore, the UCJV300 Series supports eco-friendly printing with GREENGUARD Gold certified UV-LED inks, making it ideal for environmentally conscious applications. This advanced printer handles diverse sticker printing needs, offering high-quality, durable, and vibrant results for various applications.

Mimaki UCJV300 is a Beast of a Printer

		UCJV300-75	UCJV300-107	UCJV300-130	UCJV300-160
Print head		On-demand piezo head
Print resolution		300dpi, 600dpi, 900dpi, 1200dpi
Droplet size		Min. 7pl, Max. 28pl
Head gap		3 degrees adjustment (2.0/2.5/3.0 mm) by manual
Ink	Type/Color	LED-UV ink: LUS-170 (C, M, Y, K, Lc, Lm, W, Cl)

		LED-UV ink: LUS-200 (C, M, Y, K, W)
	Capacity	1L (Bottle supply)
Max. print width		800 mm (31.5 in)	1,090 mm (42.9 in)	1,361 mm (53.5 in)	1,610 mm (63.4 in)
Max. media width		810 mm (31.9 in)	1,100 mm (43.3 in)	1,371 mm (54.0 in)	1,620 mm (63.8 in)
Media thickness		1.0 mm or less
Media roll outer diameter		φ250 mm or less
Media roll weight		40 kg (88.2 lb) or less
Cut speed		Max. 300 mm/s (420 mm/s in 45 degrees direction)
Cut pressure		10-450 gf
Cutter Types		Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure
Safety standard		VCCI Class A / FCC Class A / Compliant with UL 60950-1, ETL / CE Marking (EMC, Low voltage, Machinery directive) / RoHS / CB Report / REACH, ENERGY STAR® / RCM
Interface		USB2.0 / Ethernet 1000 BASE-T
Power supply		Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz)
Power consumption		AC100V: 1.44kW / AC200V: 1.92kW
Operational environment		Temperature: 20-30 degC / 68-86 degF Humidity: 35-65% Rh (Non condensing)
Dimensions (W×D×H)		2,090 x 776 x 1,475 mm (82.3 x 30.6 x 58.1 in)	2,380 x 776 x 1,475 mm (93.7 x 30.6 x 58.1 in)	2,650 x 776 x 1,475 mm (104.3 x 30.6 x 58.1 in)	2,900 x 776 x 1,475 mm (114.2 x 30.6 x 58.1 in)
Weight		144 kg (317.5 lb)	161 kg (354.9 lb)	177 kg (390.2 lb)	188 kg (414.5 lb)

Ink set

LUS-170 ［C,M,Y,K,Lc,Lm,W,Cl］	CMYK CMYK
	CMYK LC LM WW
	CMYK WW CL CL
LUS-200 ［C,M,Y,K,W］	CMYK CMYK
LUS-200 ［C,M,Y,K,W］	CMYK WW

The Mimaki USA Total Care warranty and Service Agreements offer
industry-leading coverage, service and support. All products sold by Mimaki USA
are covered and many have Service Agreement upgrades available.

Mimaki USA, Mimaki Authorized Dealers and Mimaki Authorized Distributors
warrant our products, accessories and supplies against defects in manufacturing
and workmanship during the Total Care warranty period. The Total Care warranty
period begins on the installation date noted on the signed installation report.
If the installation report is not completed within sixty days (60) after
shipment from Mimaki USA, the Total Care warranty period will begin on the day
the product was shipped. This warranty is transferable to anyone who
subsequently purchases, leases or otherwise obtains the product from the
end-user purchaser. The serial number of the product must be provided to Mimaki
USA or the Mimaki Authorized Distributor/Dealer when filing a claim under the
Total Care warranty.

What is covered by the warranty?

The Total Care warranty covers any defects in material and workmanship that
arise as a result of normal use of the product.

How long will the Total Care warranty last?

Printers: 1 year minimum from the product shipping date. Many models
include additional coverage based on the sales agreement. Service Agreements
are available to provide support at the end of the Total Care warranty period.

Cutters: 2 year minimum from the product shipping date. Many models
include additional coverage based on the sales agreement. Service Agreements
are available to provide support at the end of the Total Care warranty period.

Parts: 90 days from the product purchase date or date of installation.

How to obtain Total Care warranty service?

Please contact the GPI at 631-858-0114 or support@garmentprinterink.com
