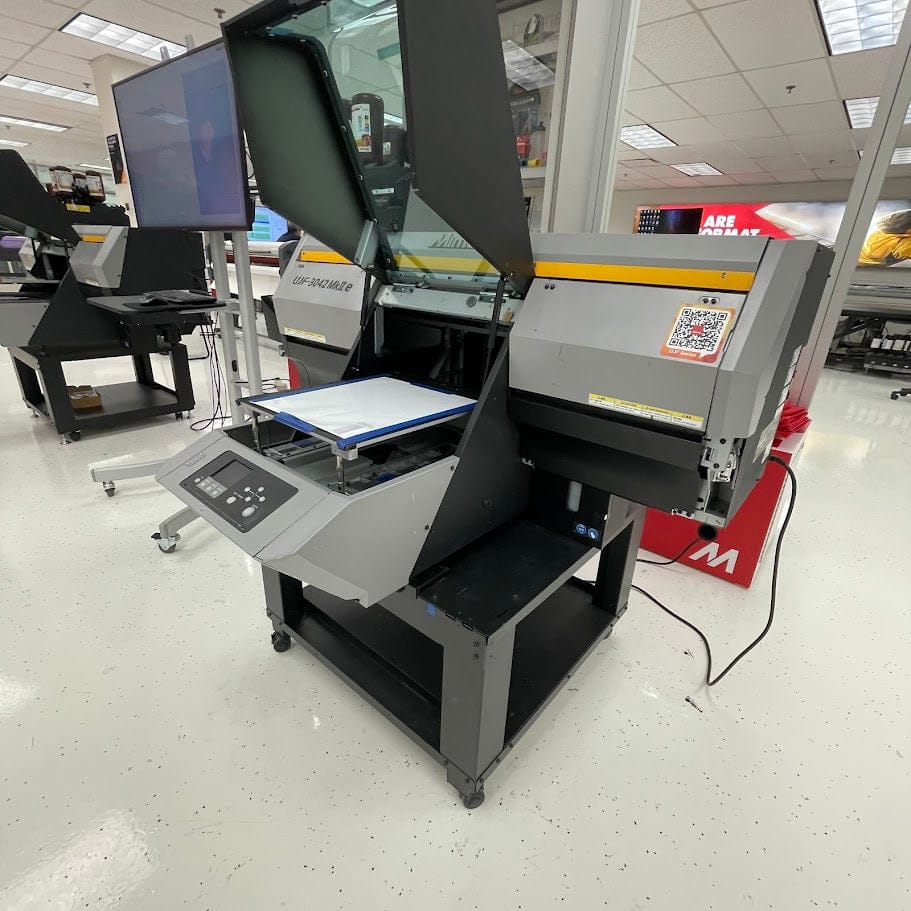

Mimaki UJF-3042 MkII e Series

Small-Format Tabletop UV-LED Flatbed
11.8" x 16.5" print area
Print Color and White without loss of print speed
Easy integration for automated, un-attended production
Raised effects and braille capable
Included RIP software Rasterlink7
Eco-friendly with low VOC

Choose Your Kit: 3042 MKII E (3 Print Heads)

$21,995.00 Save $-21,995

Explore financing options

Overview Details Supplies Specs Instructions

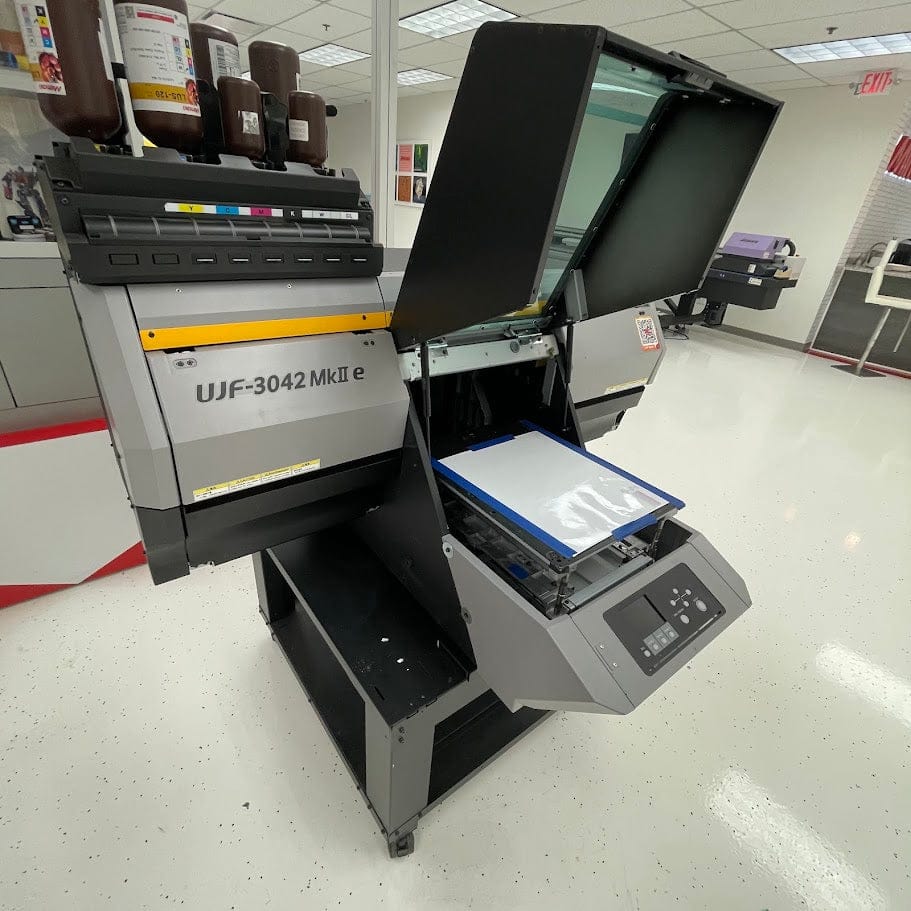

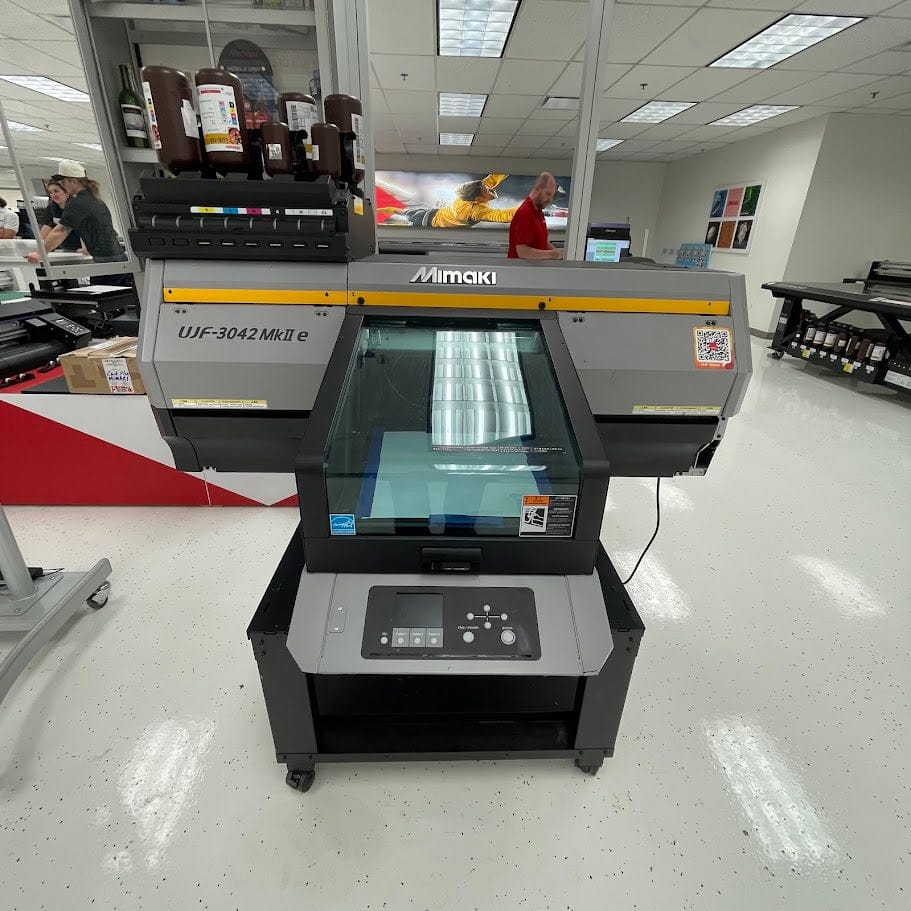

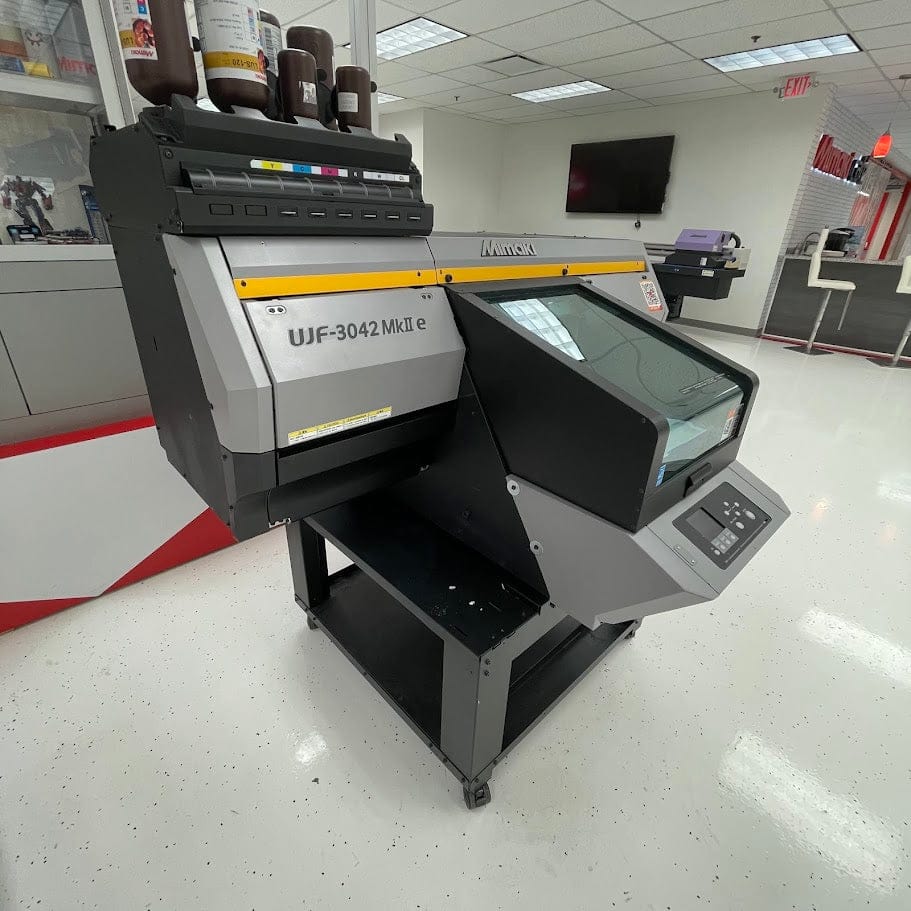

UJF-3042 MkII e

FlatBed UV Printer

Discover the Mimaki UJF-3042 MkII e – a state-of-the-art UV-LED flatbed printer engineered for direct-to-object printing. With an expansive 11.8" x 16.5" print area, exceptional precision, and smart automation, it’s ideal for customizing promotional products, industrial parts, and specialty prints with stunning clarity and durability.

Versatile Media Support: Print on a variety of substrates—from acrylic to metal and even objects up to 6 inches thick—empowering your creativity on any material.
High-Resolution Prints: Achieve crisp, 1200 dpi output that brings your designs to life with vibrant colors and sharp details.
Fast UV Curing: Experience energy-efficient UV curing that not only speeds up production but also delivers brilliant gloss and textured effects.
Smart Automation: Leverage an advanced Nozzle Recovery System that minimizes downtime, ensuring a seamless printing experience.

Download Datasheet

Transform Ordinary Materials into Extraordinary Products

Broad Material Compatibility Expand print capabilities across commercial, industrial, and creative applications.

Unmatched Speed & Precision Zip through projects with lightning speed and laser-sharp precision, delivering prints that’ll leave clients grinning ear-to-ear.

Advanced Printhead Technology Benefit from a staggered printhead configuration that enables simultaneous color and spot printing.

Enhanced Print Height Capability Print on objects up to 6 in. (153 mm) thick, allowing you to handle a wide range of three-dimensional items.

Eco-Friendly, High-Performance Inks Low-VOC, GREENGUARD Gold-certified UV-LED inks deliver vibrant, durable prints while supporting sustainable creativity.

Seamless Cylindrical Printing With the optional rotary rack accessory, print directly on cylindrical objects like bottles, tumblers, and more.

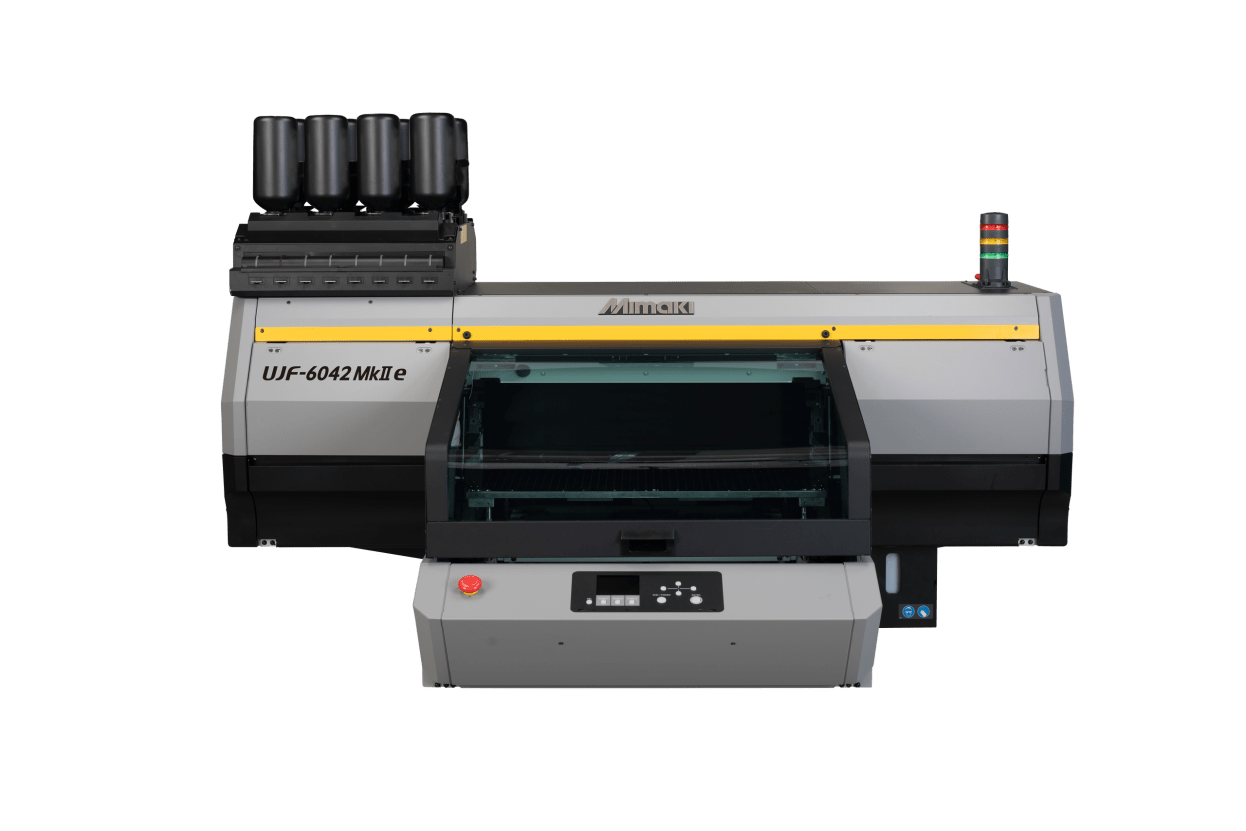

Optimized Performance

Keep production seamless with advanced printhead management—featuring the NCU and NRS to detect and replace missing nozzles on the fly, and MCT to prevent ink sedimentation for consistently sharp, uninterrupted UV prints

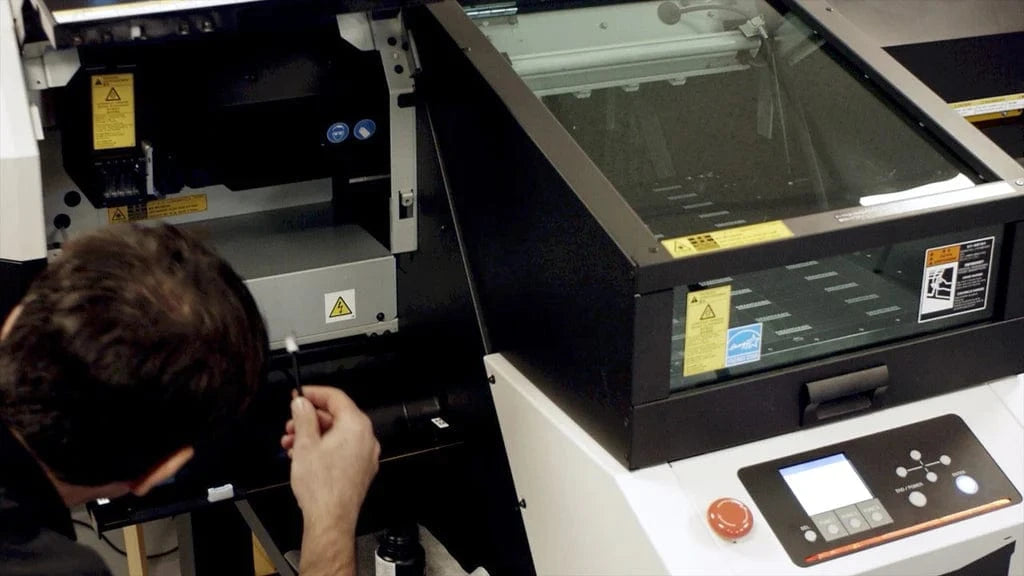

User-Friendly Operation

Engineered for busy operators, the UJF-6042 MkII e takes care of itself with an Automatic Cleaning Function and Wiper Cleaner—letting you focus on crafting high-quality UV prints instead of troubleshooting.

Versatile UV Applications

From promotional items to industrial components, achieve impeccable image quality with reduced banding using Mimaki Advanced Pass System 4 (MAPS) and precision gradations via WFC and VDT. Enhance every print with vibrant colors and a stunning glossy finish, thanks to Mimaki Fine Diffusion (MFD) and Clear Control (MCC).

Smart Connectivity

Stay connected and in control with an intuitive panel and real-time monitoring. With automatic maintenance alerts and remote diagnostics, Mimaki's Remote Access app ensures your workflow stays streamlined and responsive to your evolving business needs.

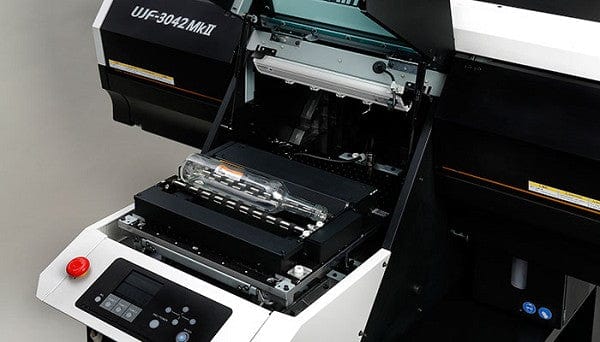

Mimaki Kebab Rotary Systems

Expand your creative potential with the Mimaki Kebab systems, the ultimate rotary printing solution for the UJF-6042 MkII e. Effortlessly print stunning 360° designs on cylindrical objects—bottles, tumblers, candles, and more—with precision and vibrancy.

Seamless 360° Printing: Wrap your designs around cylindrical surfaces with unmatched detail.
Versatile Compatibility: Print on glass, plastic, metal, and more, elevating your product offerings.
Easy Installation: Designed for quick and hassle-free replacement, reducing downtime.
High-Quality UV Printing: Achieve crisp, durable prints with vivid colors and sharp details.
Multiple Size Options: Choose the perfect Kebab system for your needs, whether for smaller items or larger-diameter products.

Ink Configuration for Mimaki UJF-3042MkIIe

LH100 / LUS120 / LUS150
(Understanding Mimaki UV Ink)

Mimaki 6 Color CMYK + Wh Wh

Mimaki 6 Color CMYK + Wh Cl

Mimaki 6 Color CMYK + Wh Pr

Mimaki 6 Color CMYK + Cl Pr

Mimaki Core Technologies

Mimaki Fine Diffusion Mimaki Fine Diffusion in RasterLink6 RIP software uses an advanced dithering process to reduce noise and produce more even colors, enhancing the image quality at the lowest resolutions.

Mimaki Intelligent Heaters Our patented intelligent heaters are built onto each printer to maintain media temperatures, improving performance that results in high-quality images.

Waveform Control Waveform Control utilizes finely-tuned frequencies for the inks’ specific gravity and viscosity to precisely shape and place individual drops.

Variable Dot Technology Combined with Waveform Control and Mimaki original inks, Variable Drop Technology optimizes ink droplet size for smooth color reproduction and fine line details.

Mimaki Advanced Pass System Mimaki Advanced Pass System incorporates an advanced algorithm to reduce visible banding and uneven color printing with blurred boundaries similar to gradation printing.

Mimaki Circulation Technology Mimaki Circulation Technology continuously circulates ink at regular intervals to prevent settling and achieve a stable ink delivery.

Nozzle Recovery System The Nozzle Recovery System (NRS) enables operators to substitute unproductive nozzles to avoid poor image quality or service calls. When combined with the Nozzle Check Unit, Mimaki printers can automatically activate this feature, allowing for a truly unattended operation with no fear of costly errors.

Nozzle Check Unit The Nozzle Check Unit automatically monitors the performance of the printhead and detects clogged nozzles

Mimaki Bulk Ink System The Mimaki Bulk Ink System allows customers to quickly change the ink capacity of a Mimaki printer at any time.

Uninterrupted Ink Supply System Uninterrupted Ink Supply System is a built-in redundancy that automatically switches from an emptied ink container to the next full container.

Half Cut With this function, the backing sheet can be cut leaving behind a small connecting point that can be easily detached when necessary, creating contour cut pieces that are easy to handle.

Over Cut This function makes a cross cut at the start and end positions, delivering a finished piece with sharp edges and no undercut fragments that can ruin a job.

Continuous Mark Crop marks are automatically and continuously detected between copies, which delivers accurate cuts over longer distances

Segment Mark Uses intermediate crop marks in the feed direction that provides four-point corrections for accurate, long-length cutting, even if the image is distorted.

Zero Margin Mark Reduces the amount of area that standard crop marks require, allowing for more copies in the same space.

Mimaki UJF Printers Print on almost anything

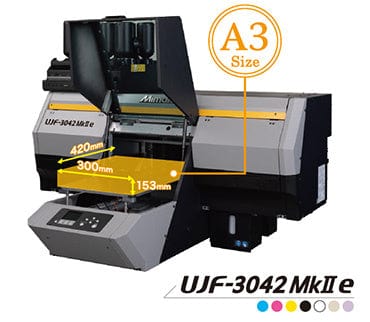

The Mimaki UJF-3042Mklle has a Perfect Footprint for any Size Business

Printer Specifications

Printhead	Three on-demand piezo heads in a staggered array
Print Resolutions	Maximum: 1200 x 1200 dpi
Print Speed (4 Color Mode)	26.7 ft²/hr (2.5 m²/hr)
Maximum Print Area	11.8″ x 16.5″ (300 x 420 mm)
Maximum Media Area	14″ x 18″
Maximum Media Thickness	Up to 6.02″ (153 mm)
Maximum Media Weight	11.0 lbs (5.0 kg)
Ink Type	Rigid: LH-100 • Flexible: LUS-120, LUS-150
Interface	Ethernet 1000BASE-T, USB 2.0 Hi-Speed
Power Supply	Single-phase AC100–240V, ±10%, 50/60Hz ±1Hz
Power Consumption	AC100V: 1,000W or less
Operational Environment	Temperature: 68°–86° F (20–30° C) Humidity: 35–65% RH (non-condensing)
Dimensions (W × D × H)	53.4″ x 50.8″ x 33.7″ (135.6 x 129 x 85.6 cm)
Weight	297.6 lbs (135 kg)
Certifications	VCCI Class A / FCC Class A / ETL UL 60950-1 / CB / CE Marking (EMC, Low Voltage, Machinery Directive, RoHS) / REACH / Energy Star / IEC 60825-1
