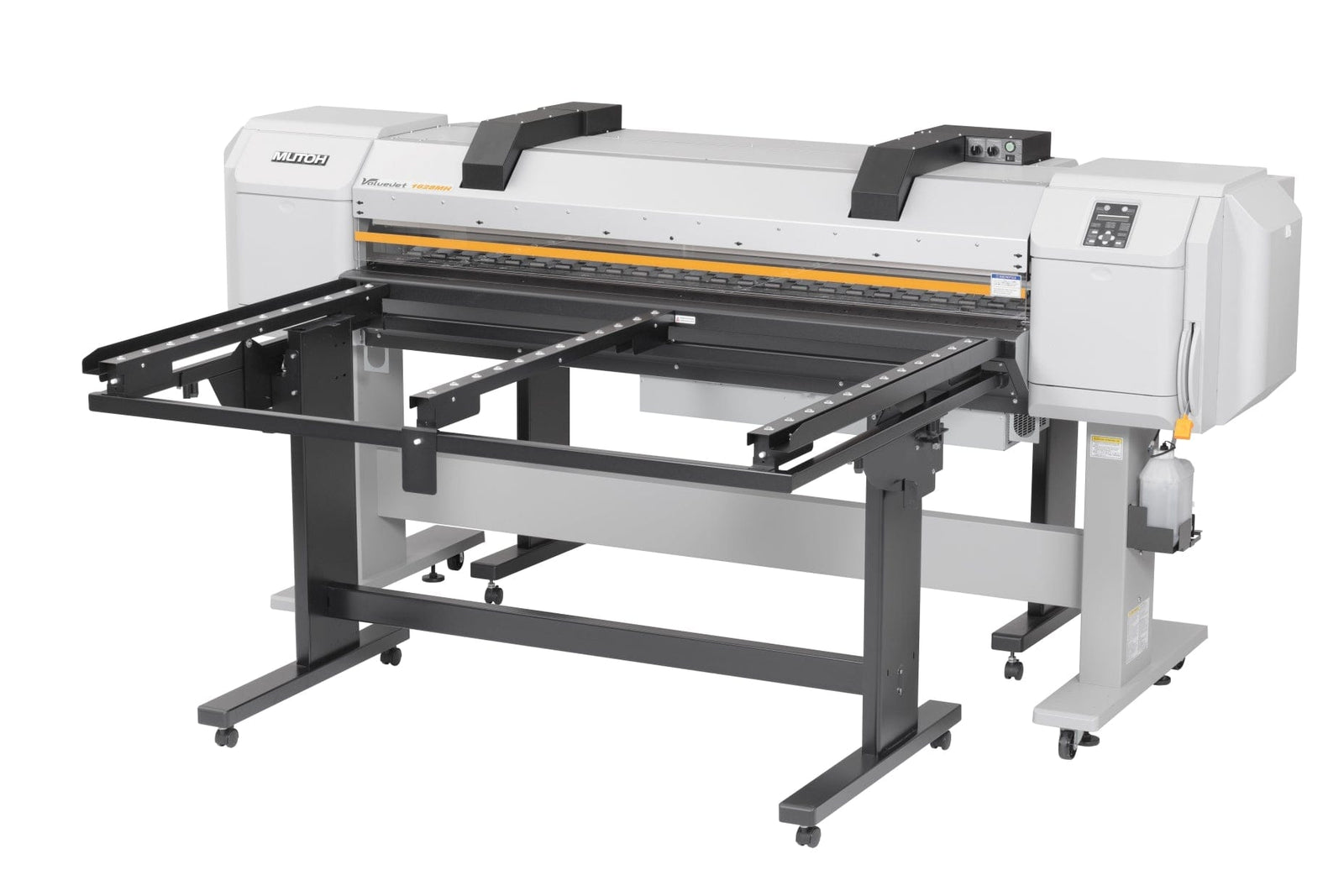

Mutoh Mutoh VALUEJET 1628MH | 64" Hybrid UV Printer

Mutoh VALUEJET 1628MH | 64" Hybrid UV Printer

FREE 2nd Year On-Site Warranty - $4,545 Value!

  • Hybrid Printing Versatility: Handles rigid and roll media up to 16 mm thick and 64 inches wide for diverse applications
  • High-Quality UV Prints: Produces vibrant, detailed images with smooth gradations and true-to-life colors
  • Mutoh MP31 Inks: 8-color resin inks offer vibrant, durable prints with flexibility for thermoforming
  • Auto Height Adjust: Sensors adjust for media thickness up to 5/8 inch, ensuring accurate prints

$34,995.00 $49,995.00 Save $15,000

Overview Details Supplies Specs Instructions

The Mutoh ValueJet 1628MH is a hybrid printer for both rigid and roll media, using MP31 resin-based inks to deliver vibrant prints on materials like PVC, cardboard, and PET. Its stretchable inks suit thermoforming, and it operates 20% faster, making it ideal for signage, packaging, and labels with excellent performance and flexibility

ValueJet 1628MH

Hybrid UV Printer

The Mutoh ValueJet 1628MH is a hybrid printer for both rigid and roll media, using MP31 resin-based inks to deliver vibrant prints on materials like PVC, cardboard, and PET. Its stretchable inks suit thermoforming, and it operates 20% faster, making it ideal for signage, packaging, and labels with excellent performance and flexibility

ValueJet 1628MH
Download Datasheet

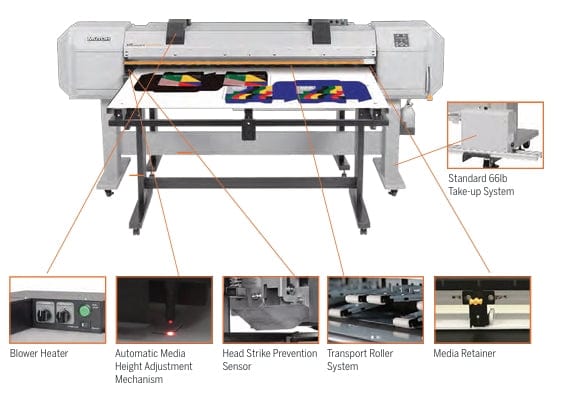

VALUEJET 1628MH Overview

VALUEJET 1628MH Overview

Items included with the Mutoh VALUEJET 1628MH | 64" Hybrid UV Printer

  • Mutoh ValueJet 1628MH: 64" Hybrid UV Printer
  • Software: Mutoh VerteLith RIP w/ FlexiDESIGNER
  • Additional Equipment: Printer Stand + Take-Up Unit

Starter Kits

  • MP31 : DUAL CMYK
    500ml | CMYK | $1,196.00 | P/N: 11538
  • MP31 : CMYKWhWh
    500ml | CMYK | $1,287.00 | P/N: 11539

INK NOT INCLUDED WITH PURCHASE OF PRINTER
All Printers must have an ink starter kit ordered at the same time a printer is ordered

Mutoh Ink Black Mutoh MP31 Multi-Purpose Ink 500ml Pouch

Mutoh MP31 Multi-Purpose Ink 500ml Pouch

From
$85.00
View
ProPeel PP100 ProPeel 2.4 mil CALENDARED VEHICLE WRAP Gloss White Air Egress Printable Vinyl ProPeel PP100 ProPeel 2.4 mil CALENDARED VEHICLE WRAP Gloss White Air Egress Printable Vinyl

PP100 ProPeel 2.4 mil CALENDARED VEHICLE WRAP Gloss White Air Egress Printable Vinyl

From
$255.00
View
Propeel Media PP500TL ProPeel 3.75 mil FLOOR OVERLAMINATE Embossed Permanent Laminate Propeel Media PP500TL ProPeel 3.75 mil FLOOR OVERLAMINATE Embossed Permanent Laminate

PP500TL ProPeel 3.75 mil FLOOR OVERLAMINATE Embossed Permanent Laminate

From
$140.00
View
Propeel Media PP303 ProPeel 3.4 mil MATTE OPAQUE White Air Egress Permanent Printable Vinyl Propeel Media PP303 ProPeel 3.4 mil MATTE OPAQUE White Air Egress Permanent Printable Vinyl

PP303 ProPeel 3.4 mil MATTE OPAQUE White Air Egress Permanent Printable Vinyl

From
$145.00
View
Save
$19
Propeel Media PP300 ProPeel 3.4 mil MATTE White Permanent Printable Vinyl Propeel Media PP300 ProPeel 3.4 mil MATTE White Permanent Printable Vinyl

PP300 ProPeel 3.4 mil MATTE White Permanent Printable Vinyl

From
$120.00 | $139.00
View
Save
$24
Propeel Media PP900 ProPeel 6 mil WALL White High Tack Removable Printable Vinyl Propeel Media PP900 ProPeel 6 mil WALL White High Tack Removable Printable Vinyl

PP900 ProPeel 6 mil WALL White High Tack Removable Printable Vinyl

(1)
From
$155.00 | $179.00
View
Propeel Media PP700 ProPeel 6 mil MATTE White Semi-Rigid Removable Printable Vinyl Propeel Media PP700 ProPeel 6 mil MATTE White Semi-Rigid Removable Printable Vinyl

PP700 ProPeel 6 mil MATTE White Semi-Rigid Removable Printable Vinyl

From
$115.00
View
Mutoh Cutter Mutoh ValueCut 2 Cutting Plotters Mutoh Cutter Mutoh ValueCut 2 Cutting Plotters

Mutoh ValueCut 2 Cutting Plotters

From
$349.00
View

Mutoh XpertJet 1642 WR Pro Specifications

Print Heads
Type MUTOH AccuFine On-demand Piezo
Number of Heads 1 (1440dpi, 180 nozzles x 8 rows)
Head Height Automatic
Media
Max Media Width 64 in
Max Print Width 63.6 in
Max Media Roll Weight 66 lbs
Media Capacity ø 5.9” dia / 2” & 3” cores

Roll Media: Max 66lbs or less

Rigid Media: Max 33lbs or less
Print Specifications
Max Print Resolution 1400 dpi
Print Modes 1440/1080/720/360dpi (total 6 modes)
Ink
DUAL CMYK
Type: MP31
Cartridge Size: 500ml
CMYKWhWh
Type: MP31
Cartridge Size: 500ml
Power & Environment
Power Requirements AC 100-120V± 10%, 50/60Hz ± 1Hz
Power Consumption (Operation) Main: Operation status 2300W or less

Standby: 65W or less
Printable Environment Temperature: 68-89.6°F

Humidity: 40-60%RH (non condensing)

Rec. environment: Temperature: 71.6-86°F
Dimensions & Weight
Dimensions (WxDxH) 106.2” x 35.7” x 51.26” (Printer w/ Stand)
Weight (Main Body) 369.3 lbs
Weight (Stand) 72.8 lbs
Interface
Interface Gb-Ethernet (1000BASE-T)
Warranty
Limited Warranty (12) Month On-Site Parts and Labor
View Full Specifications
