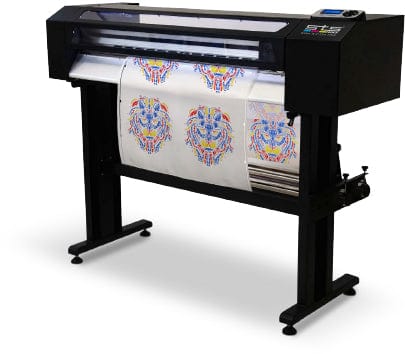

STS Automatic X/Y Trimmer Cutter

Automatic fixed-length cutting for
consistent, hands-free results.
Precision CCD camera and laser sensors
ensure accuracy and alignment.
Dual round-blade system delivers
clean, reliable cuts every time.
Versatile cutting modes for both
vertical and horizontal trimming.
User-friendly LCD control panel with
intuitive buttons.
Automatic slitting and trimming accommodates
multiple sizes with ease.

$9,500.00 Save $-9,500

Overview Details Supplies Specs Instructions

A precision-engineered solution that transforms trimming jobs into effortless, high-speed routines. Equipped with a dual-round blade system, CCD camera and laser sensors, it delivers both vertical and horizontal cuts with exceptional consistency. The intuitive LCD control panel grants flexible control, offering adjustable cutting speeds and simplified fixed‑length or auto‑mode operation. With a generous maximum cutting width of 750 mm (29.5 in) and capability to handle material thicknesses up to 0.5 mm (0.02 in), it excels across a wide range of media—from DTF film and photo paper to adhesive vinyl and light canvas. Ideal for print shops and garment printing operations, the STS cutter minimizes manual handling, accelerates turnaround, and supports scalable workflows at every phase.

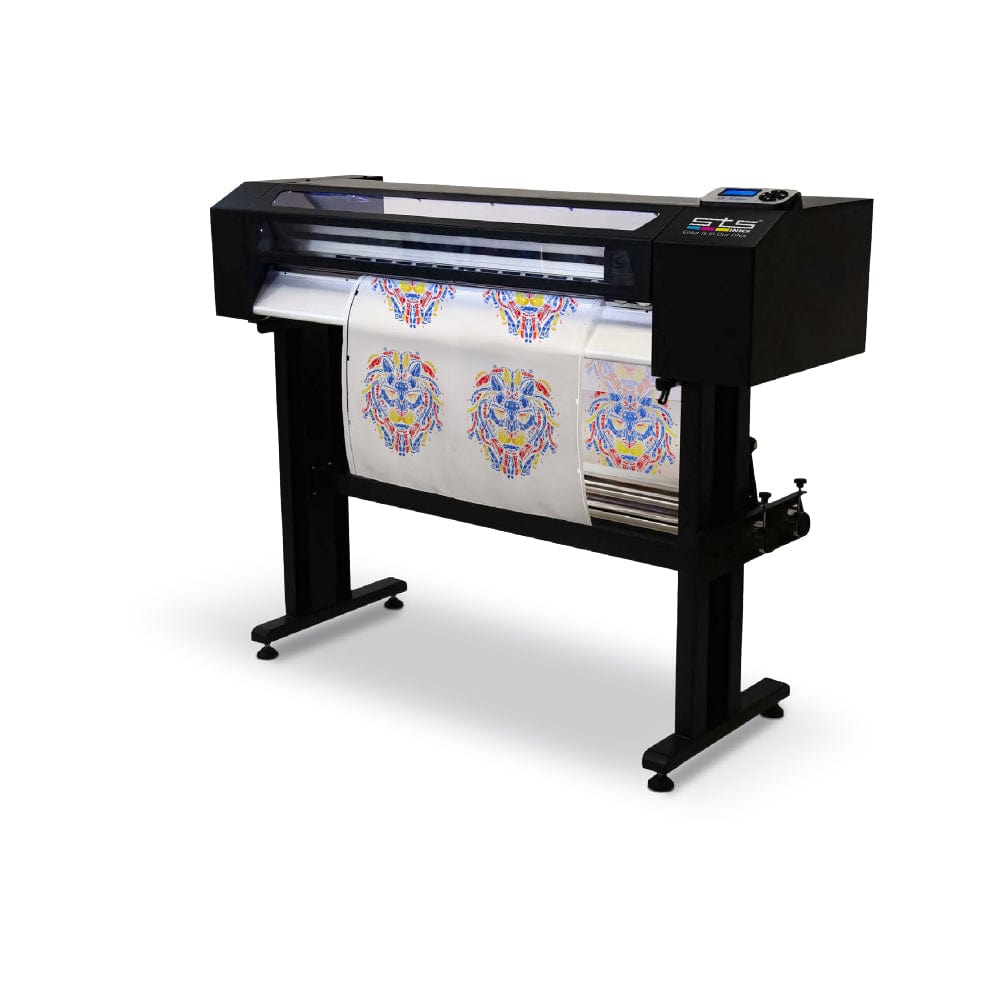

Introducing the STS Automatic X/Y Trimmer Cutte

a precision-engineered solution that transforms trimming jobs into effortless, high-speed routines. Equipped with a dual-round blade system, CCD camera and laser sensors, it delivers both vertical and horizontal cuts with exceptional consistency. The intuitive LCD control panel grants flexible control, offering adjustable cutting speeds and simplified fixed‑length or auto‑mode operation. With a generous maximum cutting width of 750 mm (29.5 in) and capability to handle material thicknesses up to 0.5 mm (0.02 in), it excels across a wide range of media—from DTF film and photo paper to adhesive vinyl and light canvas. Ideal for print shops and garment printing operations, the STS cutter minimizes manual handling, accelerates turnaround, and supports scalable workflows at every phase.

Download Operating Manual

STS X/Y Trimmer Cutter Features

DOUBLE ROUND BLADE CUTTING SYSTEM

CCD CAMERA SYSTEM

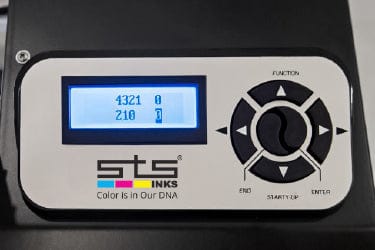

SIMPLE LCD CONTROL SCREEN

Cut any Media, vinyl, wall covering, film and more

STS X & Y Cutter

Large Memory

Cuts to fixed lengths automatically.

No hand cutting

Uses CCD Camera and laser sensors.

Photo Paper

Adhesive Vinyl

Synthetic Paper

DTF Film

Specifications

Max Cutting Width	29.5 in / 750 mm
Max Cutting Thickness	0.02 in / 0.5 mm
Cutting Speed	Adjustable – 5 speeds
Cutting Method	Double round blade
Blade Material	High strength steel
Blade Life	Over 50,000 cuts
Cuttable Materials	DTF film, paper, photo paper, transparent polypropylene adhesive, etc.
Cutting Modes	Auto Mode: Detects print lines and auto cuts Fixed-Length Mode: Cuts set length repeatedly
Positioning	Built-in CCD camera system
Control Panel	LCD blue screen with tactile buttons
Motor Type	DC servo motor
Power Usage	Up to 350 Watts
Voltage Options	100 VAC – 120 VAC \| 50/60Hz \| Max current 6.8A 200 VAC – 120 VAC \| 50/60Hz \| Max current 3.4A
Operating Environment Temperature	41°F to 95°F / 5°C to 35°C Humidity: 35% to 70% (non-condensing)
Machine Dimensions	52 × 16.7 × 11.1 in / 1320 × 424 × 282 mm
Package Dimensions	63.7 × 23.9 × 24.2 in / 1618 × 608 × 615 mm
Gross / Net Weight	245 lbs / 152 lbs \| 111 kg / 69 kg

12-Month Warranty: STS Inks provides a 12-month warranty covering replacement of faulty materials within the first year of purchase, excluding damage caused by the user or circumstances unrelated to manufacturing defects. Consumable parts like ink, printheads, capping stations, dampers, and waste bottles are not covered, except in cases of DOA (Dead On Arrival). The warranty does not apply to products with removed serial numbers or those damaged due to misuse, accidents, spills, or inadequate maintenance. Consumable parts are available for purchase if needed.
