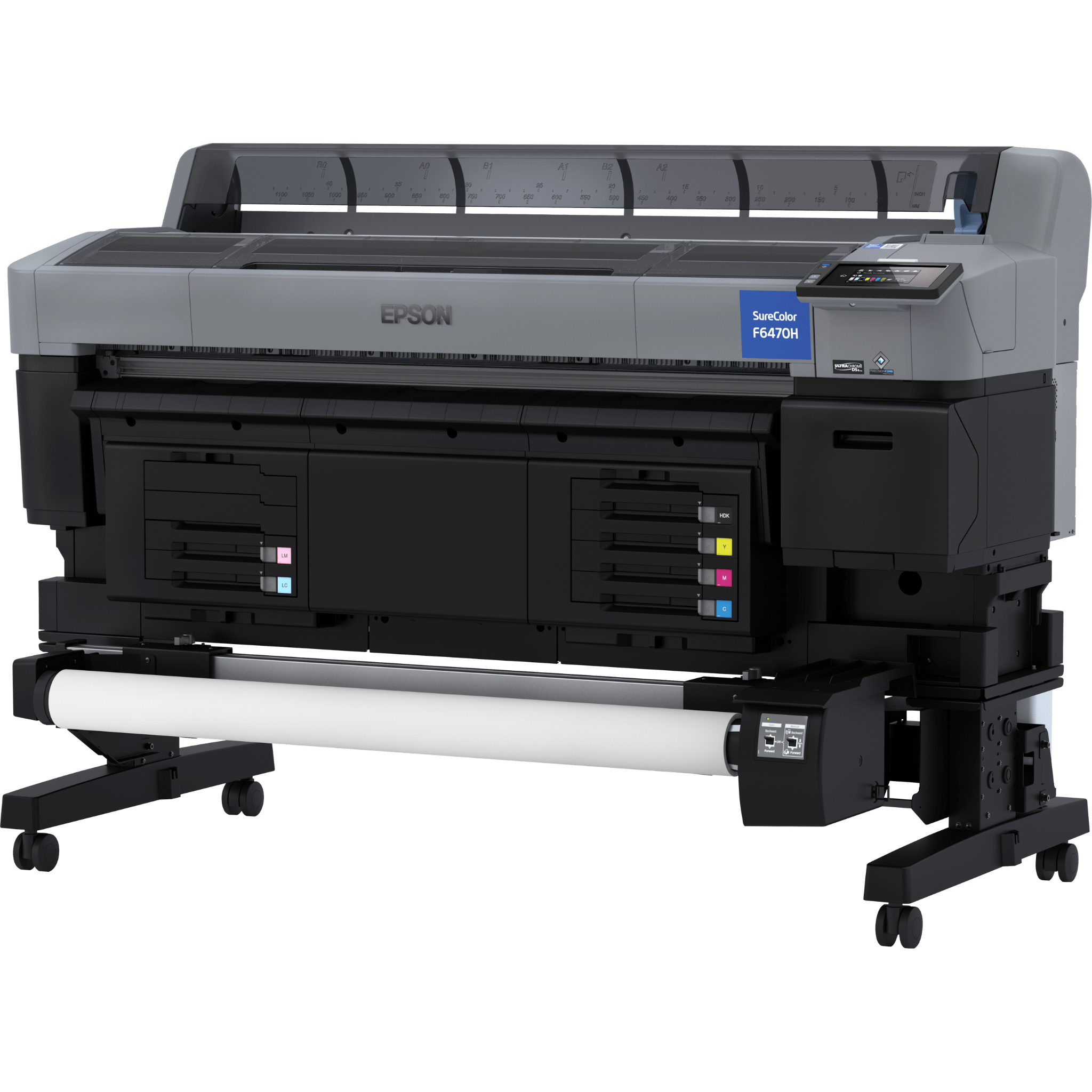

Epson SureColor F6470 Series | 44" Dye-Sublimation Printer

44" Printing Width
PrecisionCore MicroTFP printhead
Exceptional image quality with UltraChrome DS Ink
Epson Edge Print software with Adobe PDF Print Engine
4 Color & 6 Color Models Available

Model: F6470 - 4 Color

$7,695.00 $8,195.00 Save $500

Overview Details Supplies Specs Instructions

Boost productivity with the F6470 and F6470H dye-sublimation printers, built for high-quality, versatile output across apparel, home décor, soft signage, and more. The 44" SureColor F6470 delivers vivid 4-color prints at speeds up to 820 sq. ft./hr, while the F6470H expands your creative range with a 6-color configuration for richer, more vibrant imaging. Both models feature Epson’s advanced 1.33" PrecisionCore MicroTFP printhead with Nozzle Verification Technology for consistent, reliable quality. Designed for efficiency, they include a 4.3" touchscreen, easy front-loading media system, built-in cutter, take-up reel, and high-capacity 1.6-liter UltraChrome DS ink packs—making them powerful, user-friendly solutions for fast-paced production environments.

Epson SureColor F6470 Series | 44" Dye-Sublimation Printer

Boost productivity with the F6470 and F6470H dye-sublimation printers, designed for high-quality, versatile output across apparel, home décor, and signage. The 44" SureColor F6470 produces vivid 4-color prints at speeds up to 820 sq. ft./hr, while the F6470H offers an expanded 6-color option for even richer, more vibrant tones. Both models feature Epson’s 1.33" PrecisionCore MicroTFP printhead with Nozzle Verification Technology (NVT) for consistent quality. With a 4.3" touchscreen, front-loading media, built-in cutter, take-up reel, and 1.6-liter UltraChrome DS Ink packs, they’re engineered for ease and efficiency.

Epson F6470 Print Applications

Apparel and Fashion: Sports jerseys, leggings, swimwear, and high-fashion textiles.
Home Decor: Curtains, cushions, blankets, and fabric wall art.
Soft Signage: Banners, flags, backdrops, and trade show displays.
Sports Gear: Gear bags, yoga mats, and accessories.
Photo Printing: High-quality photo panels and personalized photo gifts.
Promotional Items: Mugs, coasters, keychains, and mousepads.
Interior Design: Upholstery fabrics, wall coverings, and furniture fabrics.
Automotive Upholstery: Seat covers and interior detailing.
Corporate and Team Branding: Branded apparel and accessories.

Epson F6470 Key Features

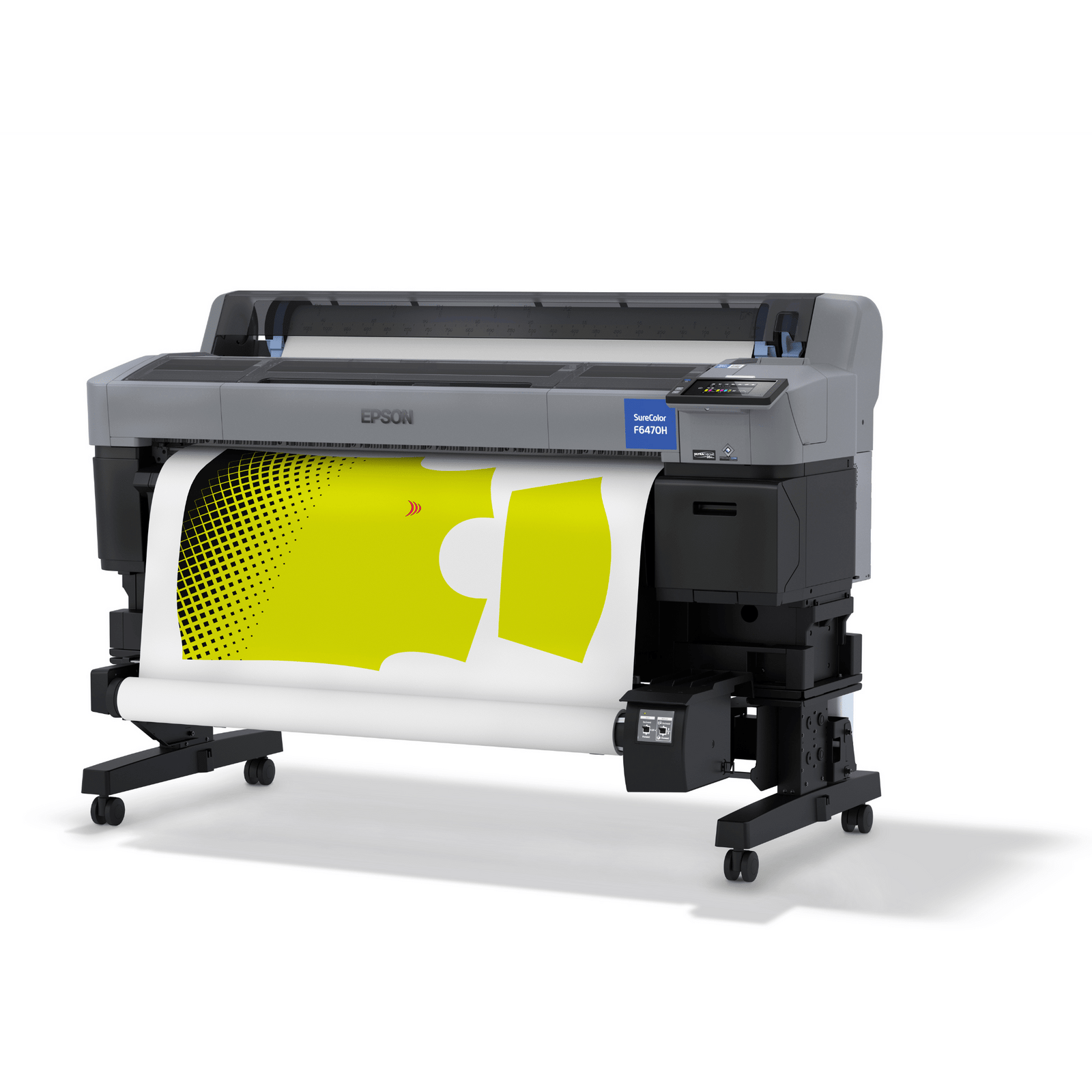

Outstanding Print Quality

The PrecisionCore MicroTFP printhead, designed for dye-sublimation, features a 3,200-nozzle array and a 1.33-inch height for high-speed, precise drop placement, while Nozzle Verification Technology (NVT) automatically monitors and adjusts performance for consistent output

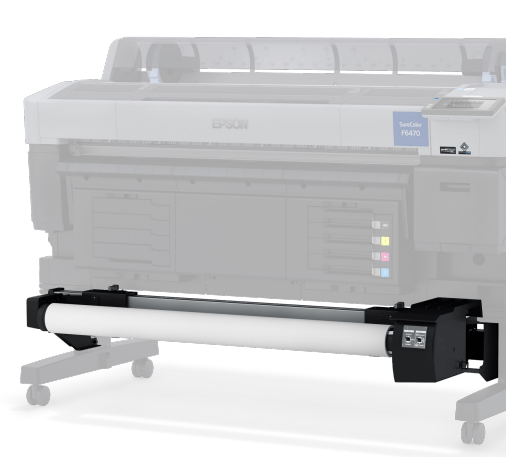

Effortless Media Handling

Easy front-loading media access and spindle-free roll holders, enable both sheet trimming with a built-in rotary cutter and roll-to-roll printing with an auto take-up system. Accommodates various transfer papers while ensuring consistent results through precise media motion control.

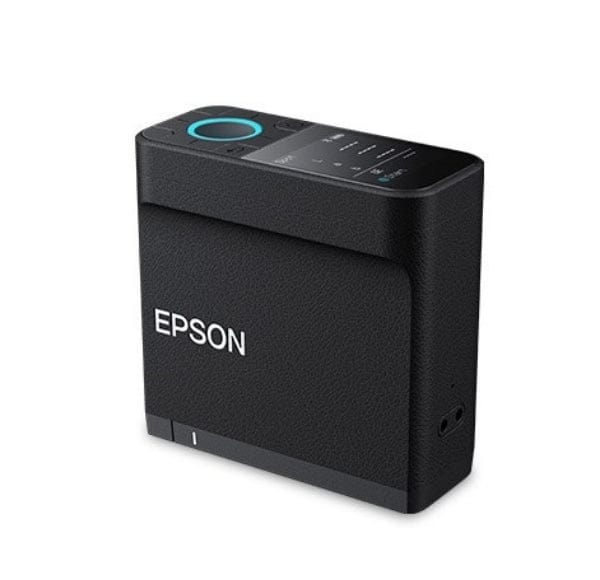

Epson Precision Color Matching

Streamline color workflow with the optional Epson SD-10 spectrophotometer. This tool eliminates the guesswork by measuring physical color samples and replacing design colors directly in Edge Print, easily creating custom color palette libraries, and verifying print accuracy for even the most demanding applications.

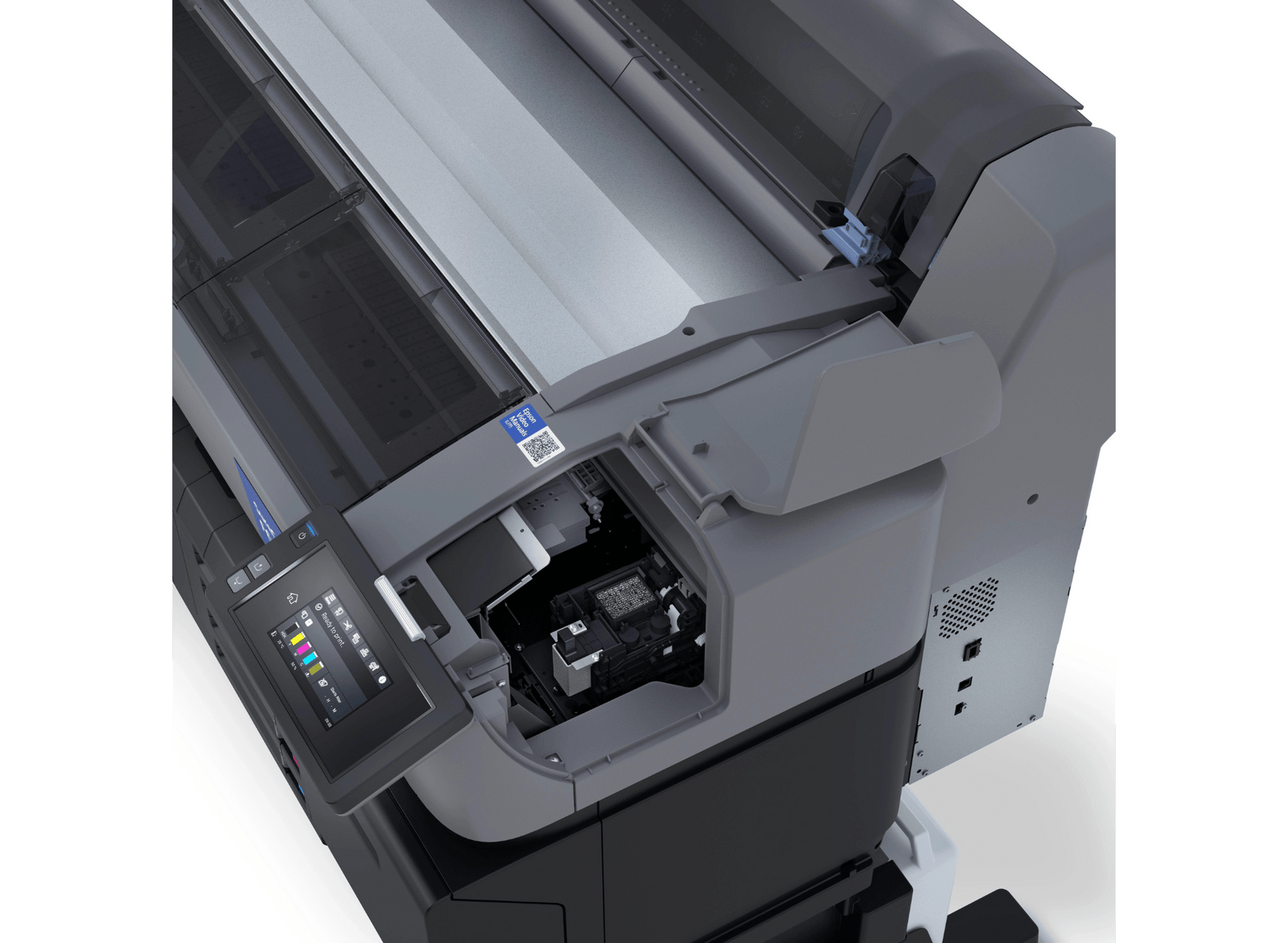

F6470 Low User Maintenance

The F6470 & F6470H are designed for easy maintenance with quick access to how-to videos via QR codes, a user-friendly maintenance station, an easy-to-clean system, a user-replaceable head wiper, and just five minutes of monthly upkeep required to keep it in like-new condition.

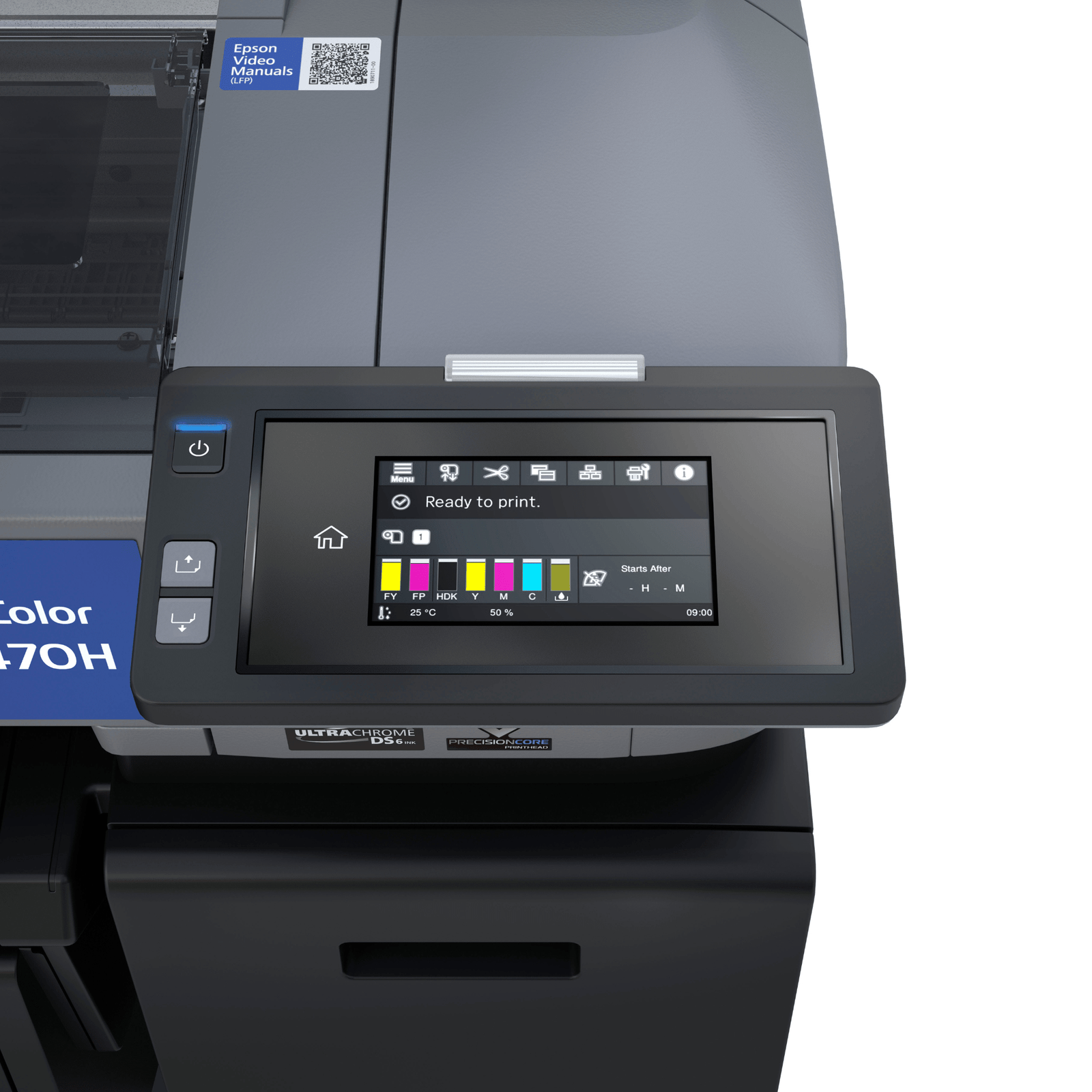

F6470 Intuitive Control Panel

The 4.3” touch screen makes it super easy to check printer status and supply levels, offers handy visual instructions for new users, has alerts for when you need to pay attention, lets you choose display themes, and even shows the temperature and humidity.

Epson Edge Print PRO

This software features an intuitive interface, Adobe PDF Print Engine for superior compatibility, job layout controls to reduce waste, advanced color management, textile features, hot-folder support for easy printing, and print server functionality for Mac and Windows.

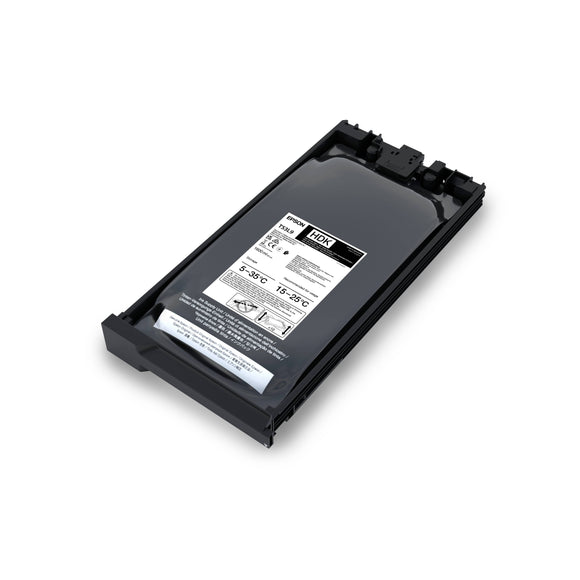

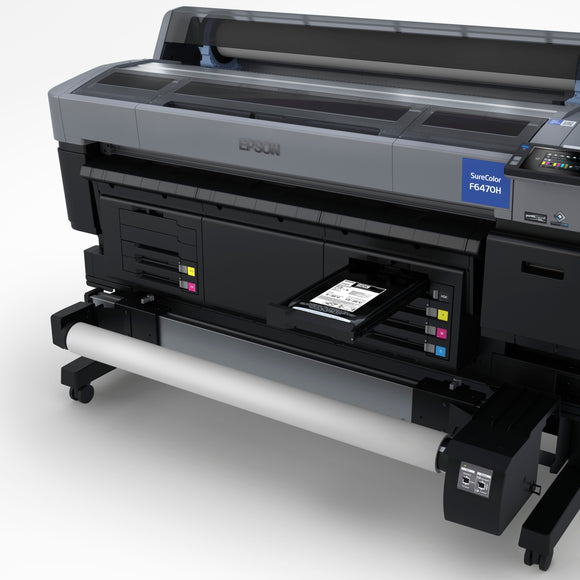

Epson T53K UltraChrome Dye-Sublimation Inks

T53K CMYK Orange and Violet

Print from a broader color spectrum with Orange and Violet, ideal for vibrant fashion apparel, sportswear, and promotional products that require precise corporate logo colors.

T53K CMYK LM LC

Achieve superior tone gradations and fine detail with Light Cyan and Light Magenta, perfect for professional photography, fine art exhibition, and high-definition photographic soft signage.

T53K CMYK Fluorescent Pink and Yellow

Dramatically boost brightness with Fluorescent Pink and Fluorescent Yellow, perfect for creating a wide range of neon colors for high-visibility apparel, sportswear, and attention-grabbing soft signage.

T53K Four Color CMYK CMYK

This versatile ink set, featuring High-Density Black ink, delivers rich blacks and bold colors for nearly any application ranging from apparel to interior décor and promotional items.

Why Buy the Epson SureColor F6470 or F6470H?

Investing in either the F9470 or F9470Hmeans choosing a high-performance dye-sublimation printer that delivers vibrant, detailed graphics on a wide range of fabrics and substrates. Engineered to meet the diverse needs of your customers, this dye-sublimation printing system offers exceptional print quality and versatility for applications ranging from apparel to soft signage. Don’t settle for ordinary prints; elevate your creative potential and make a lasting impact with the F9740 series dye-sublimation printers.

GPI Support: Printer Expertise You Can Trust

When you source a printer through GPI Supplies, you gain access to our dedicated printer support team, ensuring you receive expert assistance to maximize your investment. Our knowledgeable technicians offer comprehensive services, including printer installation, personalized training, and ongoing troubleshooting support. With years of industry experience, we are committed to being your trusted partner in printing, helping you achieve optimal performance from your equipment. Whether you need help with setup, maintenance, or technical issues, Garment Printer Ink is here to provide the reliable support you need for a seamless printing experience.

Epson Comparison

Specification	Details
PRINTER NAME	Cylindrical UV Printer
PRINTING RESOLUTION	720 DPI - 2880 DPI
MODEL	STS C-3
PRINT HEAD	Epson i1600
NUMBER OF PRINT HEAD	3 pcs
PRINT SIZE	0 - 240 mm \| 0 - 9.44” Length 55 - 180 mm \| 2.16” - 7.08” Diameter 12” Tape
INK MODE	CMYK + W + V
INK TYPE	Eco UV Curing Ink
INK SYSTEM	Siphon positive pressure ink supply system
RIP SOFTWARE	CADLink \| FlexiPRINT \| Inedit
FILE FORMAT	TIFF, JPEG, EPS, PDF, ETC
INTERFACE TYPE	High-Speed 3.0 USB cable
VOLTAGE	AC110V+/-10%
PLATFORM JIG	Special printing fixture
DIMENSIONS OF PRINTER (LxWxH)	1340mm * 480mm * 730mm \| 52.7” * 18.9” * 28.74”
OPERATING ENVIRONMENTS	Temperature: 15°C - 30°C \| 57°F - 86°F Humidity: 30% RH - 70% RH
RATED POWER	1300W
MACHINE WEIGHT	134 kg \| 295.419 lb

Epson SureColor F6470H & F6470 Specifications

Specification	F6470H	F6470
Printing Technology	PrecisionCore MicroTFP drop-on-demand inkjet printhead with Nozzle Verification technology	PrecisionCore MicroTFP drop-on-demand inkjet printhead with Nozzle Verification Technology
Ink Type	UltraChrome DS with High-Density Black ink; 6-color ink configuration	UltraChrome DS with High-Density Black Ink
Ink Configuration	Smooth: C, M, Y, HDK, Lc, Lm Fluorescent: C, M, Y, HDK, Fy, Fp Vivid: C, M, Y, HDK, Or, Vi	C, M, Y, HDK
Nozzle Configuration	400 nozzles x 6 colors	800 nozzles x 4 colors
Droplet Technology	Variable Droplet Technology	Variable Droplet Technology
Maximum Resolution	1,200 x 600 dpi	1,200 x 600 dpi
Print Speed	Up to 400 ft²/hr	Up to 820 ft/hr
Epson Integrated Ink Pack System	In-Box Ink: None–sold separately Retail Ink Pack Volume: 2 x 1,600 mL ink packs per color Ink Pack Shelf Life: 2 years from printed production date	In-Box Ink: None–sold separately Retail Ink Pack Volume: 2 x 1,600 mL ink packs per color Ink Pack Shelf Life: 2 years from printed production date
Roll Media Handling	Single Roll up to 44" wide Media Core: 2" or 3" core diameter Maximum Roll Diameter: Up to 5.9" Media Thickness: Up to 0.5 mm Integrated Cutter: Automatic rotary cutter	Single Roll-to-Sheet Up to 44" wide Media Core: 2" or 3" core diameter Maximum Roll Diameter: Up to 5.9" Media Thickness: Up to 0.5 mm Integrated Cutter: Automatic rotary cutter
Printable Area and Accuracy	Maximum Paper Width: 44" Minimum Paper Width: 10" Left/Right Margins: 0.12" (0.24" total) Maximum Printable Width: Up to 43.8"	Maximum Paper Width: 44" Minimum Paper Width: 10" Left/Right Margins: 0.12" (0.24" total) Maximum Printable Width: Up to 43.8"
Printer Interfaces	SuperSpeed USB 3.0 (1 port) 1000Base-T Ethernet (1 port)	SuperSpeed USB 3.0 (1 port) 1000Base-T Ethernet (1 port)
Operating Systems Supported	Windows® 11, 10 (64-bit)	Windows® 11, 10 (64-bit)
Epson Edge Print	Minimum PC Requirements: Intel Core® i3 (3.30 GHz), 8GB RAM, 50GB HDD, 1280 x 1024 display resolution and Internet connection	Minimum PC Requirements: Intel Core® i3 (3.30 GHz), 8GB RAM, 50GB HDD, 1280 x 1024 display resolution and Internet connection
General	Weight and Dimensions (W x D x H): 64" x 36" x 45" (1,608 mm x 916 mm x 1,128 mm) Weight: 310 lb (140 kg) Acoustic Noise Level: Less than 54 dB(A), according to ISO 7779 Temperature: Operating: 59 ˚ to 95 ˚F (15 ˚ to 35 ˚C) Operating (Recommended): 59 ˚ to 77 ˚F (15 ˚ to 25 ˚C) Relative Humidity: Operating: 20 – 80% (no condensation) Operating (Recommended): 40 – 60% (no condensation) Electrical Requirements: Printer: Requires 2 outlets Voltage: AC 100 – 120 V; 200 – 240 V Frequency: 50 / 60 Hz Current: 3.4 A at 100 – 120 V, 1.6 A at 200 – 240 V Power Consumption: Printing: Approx. 80 W or less Standby: 36 W Sleep Mode: Less than 20 W Power Off: Less than 0.3 W Limited Warranty and Extended Service Plans: Standard 1-year limited warranty; optional Epson Preferred Plus Extended plans available up to a total of 5 years of continuous coverage Country of Origin: China	Weight and Dimensions (W x D x H): 64" x 36" x 45" (1,608 mm x 916 mm x 1,128 mm) Weight: 295 lb (134 kg) Acoustic Noise Level: Less than 54 dB(A), according to ISO 7779 Temperature: Operating: 59 ˚ to 95 ˚F (15 ˚ to 35 ˚C) Operating (Recommended): 59 ˚ to 77 ˚F (15 ˚ to 25 ˚C) Relative Humidity: Operating: 20 – 80% (no condensation) Operating (Recommended): 40 – 60% (no condensation) Electrical Requirements: Printer: Requires 2 outlets Voltage: AC 100 – 120 V; 200 – 240 V Frequency: 50 / 60 Hz Current: 3.4 A at 100 – 120 V, 1.6 A at 200 – 240 V Power Consumption: Printing: Approx. 80 W or less Standby: 36 W Sleep Mode: Less than 20 W Power Off: Less than 0.3 W Limited Warranty and Extended Service Plans: Standard 1-year limited warranty; optional Epson Preferred Plus Extended Service Plans available up to a total of 5 years of continuous coverage Country of Origin: China
