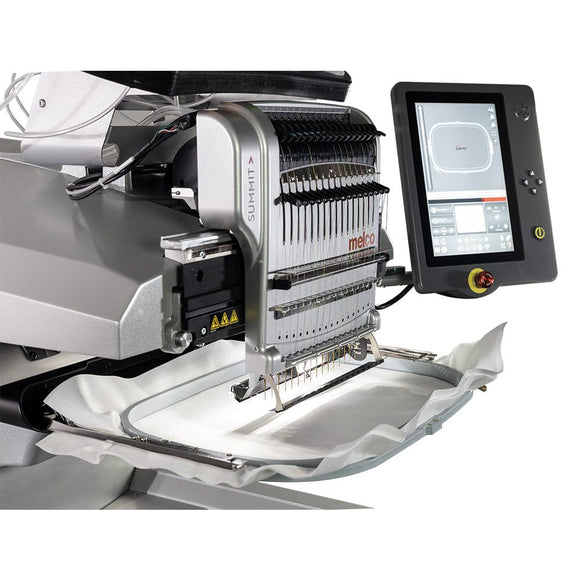

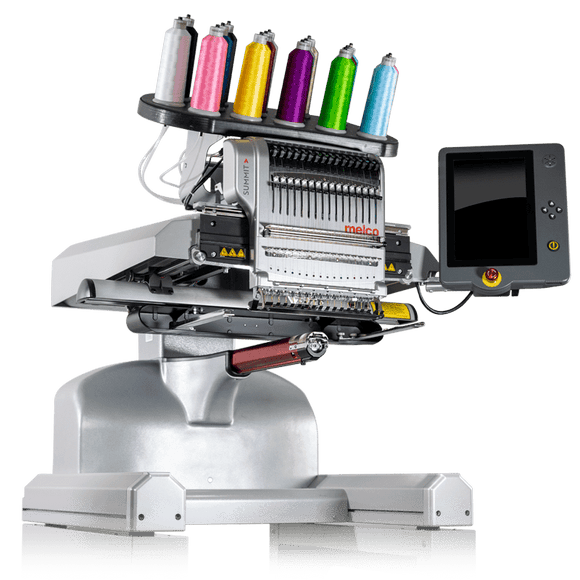

Melco SUMMIT
16-Needle Embroidery Machine
Like mountain climbing, entrepreneurship demands specialized tools that ensure top-tier performance and dependable results. With enhanced performance, streamlined operation, and an advanced touch interface, Melco has elevated their renowned embroidery equipment to new levels.
- 16 Needles For Color Flexibility And Efficient Embroidery Production
- 10.1″ Responsive HD Touchscreen
- Up to 1500 Stitches Per Minute
- Acti-Feed™ Auto-Thread Tension
- Large 16.1″ x 15.5” Sewing Field
- 14.1” x 3.25” Wide Angle Cap Frame
- Laser Alignment and Positioning
- Built-in Barcode Reader

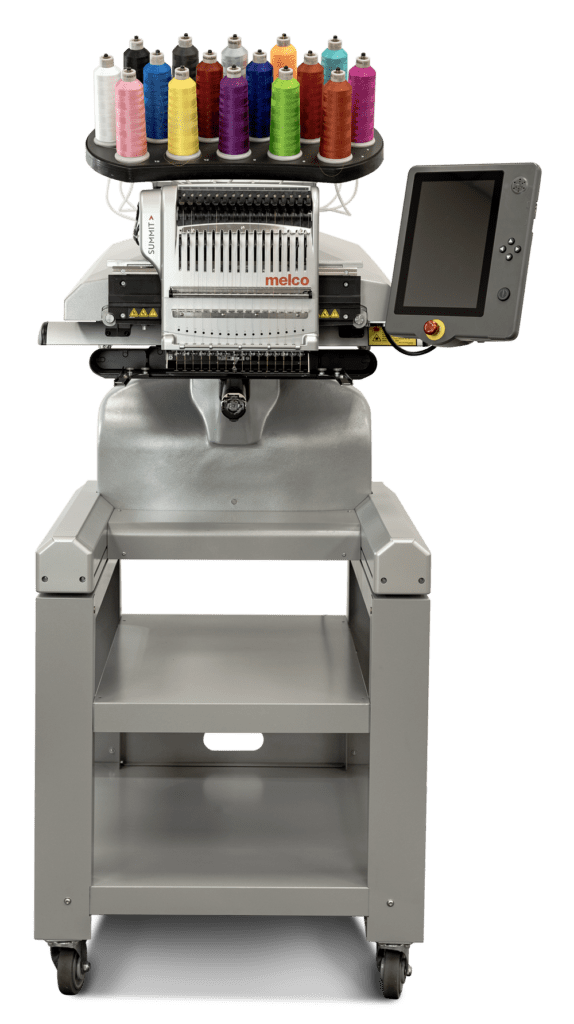

- Sturdy, All-Metal Wheeled Cart
Elevated Ease-of-Use
Touch Interface | Acti-Feed™ Thread Tensioning | Intuitive Operating System | Built-in Barcode Scanner | Automatic Thread Sequencing | Advanced Laser Alignment
With a highly intuitive touch interface and an automated project workflow, Melco SUMMIT is the most user-friendly commercial embroidery machine on the market. Quickly load designs and design settings with the built-in barcode scanner and easily ensure accuracy with laser alignment and design tracing. From automatic color sequencing and thread tree populating to automatic thread tensioning with Acti-Feed™, every step in the embroidery process has been streamlined to maximize your productivity.
Majestic Views

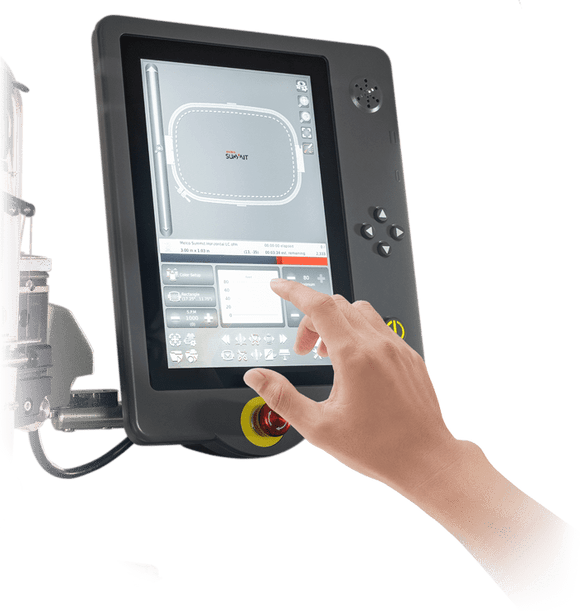

10.1" Touchscreen | Ultra-responsive | Full HD
SUMMIT’s large touch screen gives you all the control you need, right at your fingertips. An intuitive OS, vivid colors, sharp detail, and a responsive, capacitive touch controller, makes interacting with SUMMIT a true pleasure. The large display also allows you to monitor design progress and machine status from a distance as well as makes on-screen maintenance guides easy to follow.
Peak Performance
1500 Stitches Per Minute | Super Fast Color Change Motor | Durable Commercial Construction | 16 Needles

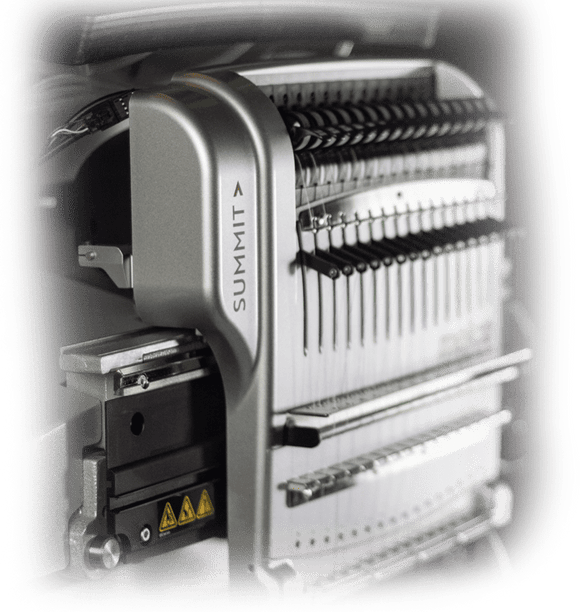

At 1500 stitches per minute, Melco SUMMIT is one of the fastest stitching commercial embroidery machines available. However, we know commercial embroidery performance is more than just stitch speed. SUMMIT’s high-performance color change motor dramatically cuts down on stitch time for complex, multi-colored designs. A rigid, all-metal frame reduces unwanted flex and vibration to ensure consistent, precise stitching that is critical to commercial embroidery success.
Melco Acti-Feed™
Automatic thread tensioning not only makes SUMMIT easier to use, but is also a key part of SUMMIT’s rapid stitch speeds. Simply select a garment preset and let Acti-Feed™ deliver thread at an optimal rate based on fabric type and thickness, enabling high-speed stitching while avoiding thread breaks.
Changing Colors
A super fast-color change motor and 16 needles allow for more flexibility and faster production when stitching designs with many different colors. Further optimize large jobs by loading multiple spools of the same color and letting SUMMIT automatically switch to backup spools for longer runtime.
Intelligent Commercial Embroidery System
SUMMIT is part of Melco’s Intelligent ecosystem, which means it’s been engineered to maximize your commercial embroidery success. With intelligent automation and OFM file support built-in, you can streamline your workflow, consistently get professional results, and tackle challenging jobs with ease.
Intelligent Software
Melco’s software solutions streamline the embroidery design process. DesignShop makes digitizing easier than ever. Enterprise Fulfillment Solutions (EFS) automates digitizing, and mass customization. And Fusion streamlines e-commerce on-demand embroidery tasks.
Intelligent File Management

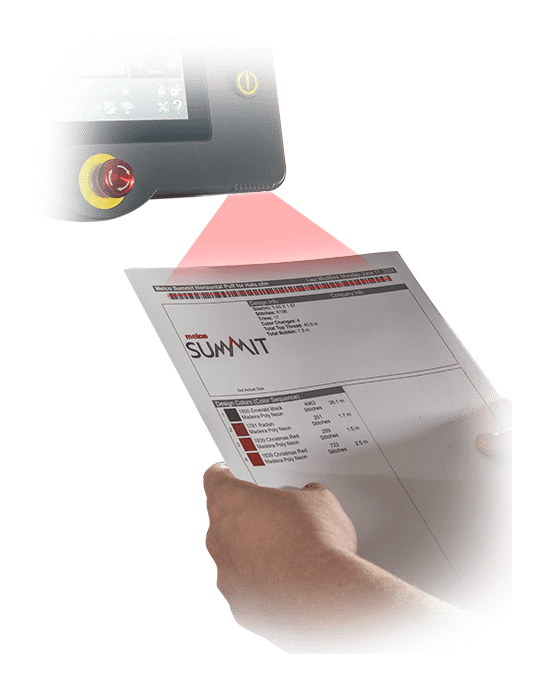

Melco software generates barcoded embroidery files using our proprietary OFM format. This combines vector design details, design information, and machine settings into a single file. Simply scan the barcode on the design sheet to transfer designs to your machine. The network-stored OFM file and its settings are directly loaded onto your machine, enhancing production efficiency and minimizing operator errors.
Intelligent Machines
Along with OFM compatibility and barcode reading capabilities, Melco embroidery machines are full of intelligent features targeted at commercial embroidery performance. Laser alignment, automatic color sequencing, and Acti-Feed™ thread tensioning simplify tedious parts of embroidery and speed up production time.
Explore the Melco SUMMIT 16-Needle Embroidery Machine
