Roland TrueVis MG Series UV Printer/Cutter

2 Year Trouble Free Warranty Included!
High-definition output
Specialty printing for textures and effects
Broad media compatibility
High-density white ink
Fast-drying prints for quick turnaround and finishing

Model: MG-640 64" UV Printer/Cutter

$20,345.00 Save $0

Overview Details Supplies Specs Instructions

The Roland TrueVIS MG Series is the perfect solution for boosting creativity and profitability, combining advanced UV-LED printing with integrated contour cutting in a single, efficient device. It produces stunning high-definition output with the ability to create textured effects using Gloss ink and bold, high-opacity graphics with White ink—ideal for premium applications like packaging prototypes, custom signage, and specialty labels. With broad media compatibility and instantly cured prints, the MG Series delivers fast turnaround times and a smooth, simplified workflow. Backed by Roland’s trusted reliability, it gives you the versatility and performance to confidently take on any project.

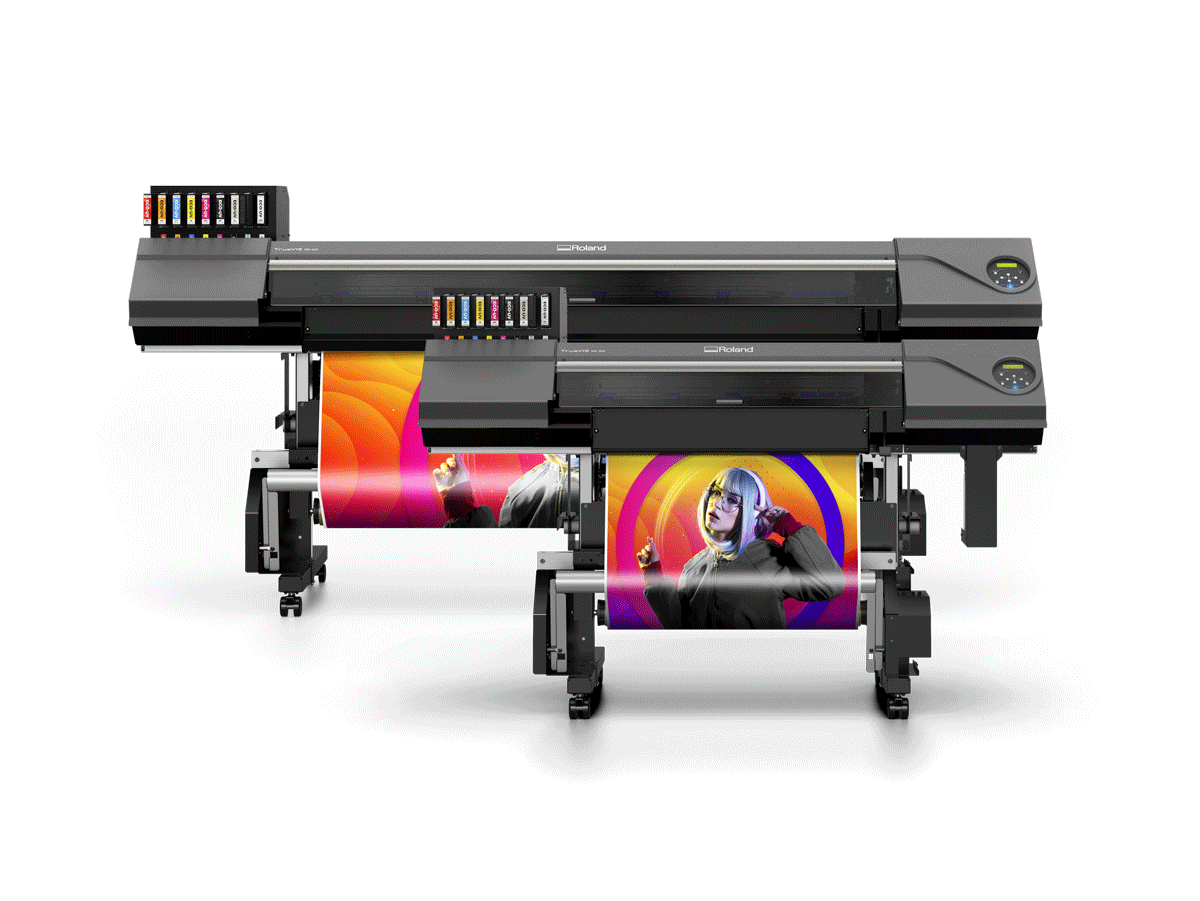

TruVIS MG Series

Wide-Format UV Printer & Cutter

The Roland TrueVIS MG Series is your essential tool for maximizing creativity and profit, combining UV-LED printing with integrated contour-cutting into one streamlined machine. This printer delivers stunning, high-definition output and specialty printing capabilities, allowing you to create textures and effects using Gloss ink or high-opacity graphics with White ink—perfect for expanding into high-value applications like packaging prototypes and custom signage. With its broad media compatibility and fast-drying prints, the MG Series ensures quick turnaround times and a simplified workflow, giving you the versatility to take on any job while relying on the dependability of Roland technology.

Download Datasheet

MG Series UV Print Cut Solutions

MG-300

30" Ideal for creating high-quality, vibrant stickers and labels with precision.

MG-640

64" Built to excel in creating bold, eye-catching signage and seamless vehicle wraps.

Take Print and Cut Further

TrueVIS is synonymous with industry-leading print-and-cut machines. Enhance your capabilities with the added power of premium-quality UV-LED printing technology and specialty effects capabilities to offer your customers even more products.

Backlit Graphics

Print high-quality EUV ink onto a wide range of semi-transparent backlit media to create eye-catching lightboxes.

Window Graphics

With high-opacity white ink and excellent media compatibility, you can produce everything from static clings to window stickers.

Stickers and Labels

Quickly produce sticker, decals and labels with great color accuracy, and even add stylish gloss details.

Packaging Prototypes

Capable of printing onto thin films and semi-rigid cardboard. You can create prototypes from packaging boxes to flexible pouches.

Signage

Produce graphics that stand up to close inspection, even on a large scale. The TrueVIS solution helps you transform office spaces and residential interiors with eye-catching graphics produced with GREENGUARD Gold certified inks.

POP and Displays

Roland DG’s TrueVIS UV print and cut solution is perfect for creating a wide range of in-store promotional graphics.

Specialized Art Prints

Produce luxury art prints utilizing enhanced features such as simulated oil paint brush strokes and more.

High-Quality Ink

Using the latest ECO-UV EUV5 inks for exceptional and premium-value printing, we go beyond CMYK to give you even more options and flexibility. Talk to a Roland DGA expert about your print requirements to discover the ink configuration that’s right for you.

CMYK Get premium results with high-quality CMYK EUV ink.

Gloss Generate a multitude of tangible effects, simulated embossing and gloss finishes.

White Print high-opacity white details or add sub-coats for dark or transparent materials.

Red and Orange With our True Rich Color preset, extend your available gamut and reproduce brand colors perfectly.

Primer Apply primer to the print area with precision for optimum media compatibility.

Shrink Inks Perfect for flexible packaging, Roland DG EUVS inks offer extended shrink capability.

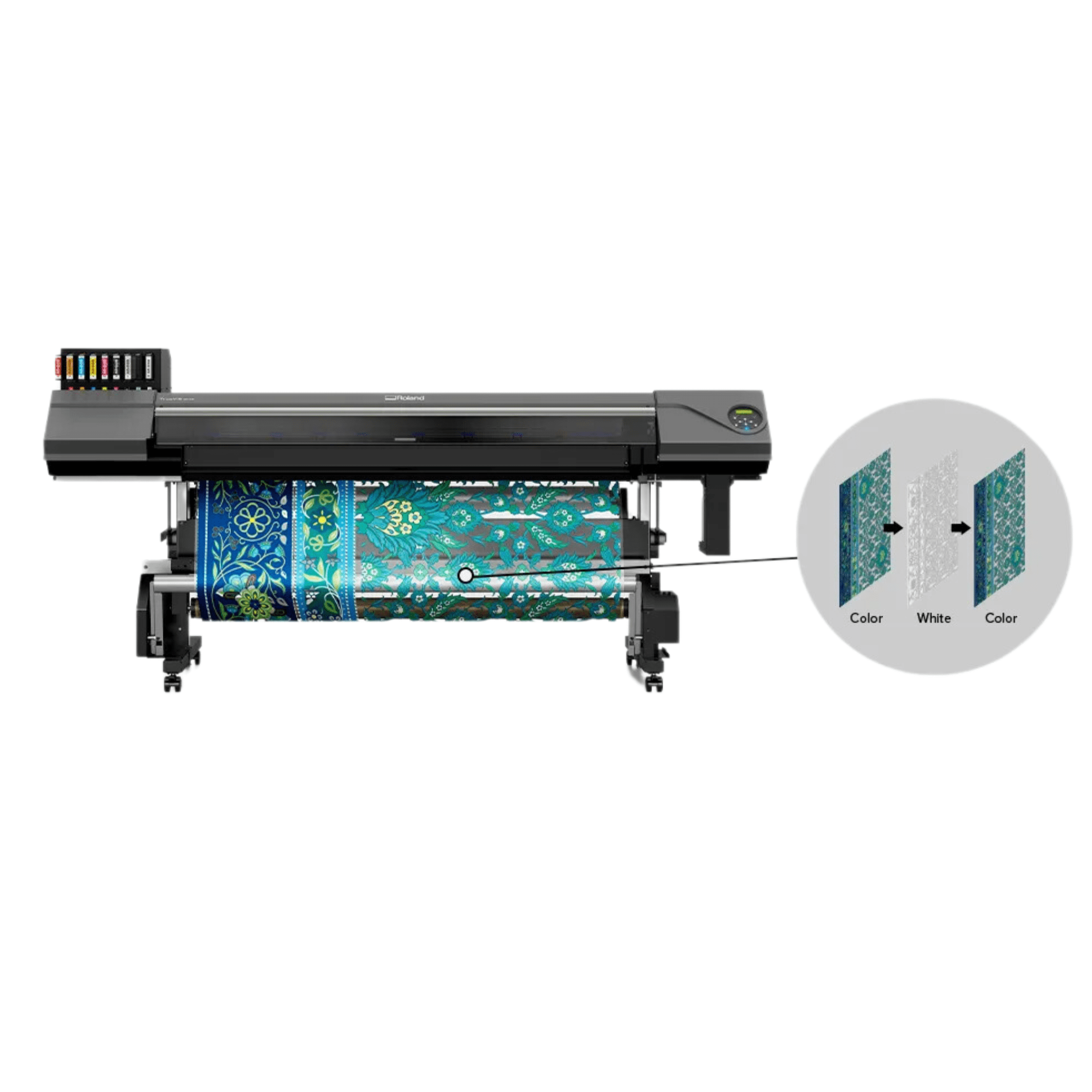

One-Pass Multilayer Printing

Print 3 layers in a single job, even in large-format or lengthy print runs, with accurate and stable output. The following layer combinations can be selected:

Color → White → Color
White → Color → Gloss (Matte Varnish)
Primer → White → Color
Primer → Color → White

Ultimate Print Expression

The combination of ultra high-definition print technology and specially formulated UV ink lets you accurately reproduce colors in a wide color gamut.

Certified for Commercial-Grade Type II Wall Coverings

Roland DG EUV5 inks have met industry-standard Type II certifications for popular non-PVC wall covering materials*, ideal for commercial and hospitality applications.

* EUV5 ink has passed commercial-grade requirements on specific materials. For Type II certifications, testing is required on each individual material. Inquire to learn more about which materials are certified for your application.

Certified for Commercial-Grade Type II Wall Coverings

VersaWorks 7 RIP Software is included with machine purchase and offers Roland DG Color System and Pantone® libraries, advanced tiling, nesting, variable data and many more features to ensure quality print output.

Low Running Cost Long-life printheads and ink-clogging prevention features extend product life and ensure sustained quality.

Perforated Cut Separate individual jobs without cutting the backing sheet for unattended long runs.

Color Match your customers' color with ease thanks to advanced RIP features.

Mobile Cost Tracking Track ink usage and more in real time with the Roland DG Connect mobile app.

Profiles Access Roland DG's library of ICC profiles and find hundreds of profiles to match your needs.

LG and MG Ink Configurations

Eight Color CMYK GL WH OR RD

Seven Colors CMYK GL WH RD PR

Seven Color CMYK WH OR RD PR

Seven Color CMYK 2xWH OR RD

Six Colors CMYK GL 2xWH PR

Six Color CMYK 2xGL 2xWH

Four Color CMYK CMYK

Optimum Productivity

The Next Generation of TruVIS is Here

MG Datasheet

Model			MG-640	MG-300
Printing method			Piezo ink-jet method
Media	Width		8.3 to 64 in. (210 to 1625 mm)	7.2 to 30 in. (182 to 762 mm)
	Thickness		Max. 39.3 mil (1.0 mm) with liner, for printing Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
	Roll outer diameter		Max. 8.2 in. (210 mm)
	Roll weight		Max. 88 lb. (40 kg)	Max. 55 lb. (25 kg)
	Core diameter		3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing / cutting width¹			Max. 62.9 in. (1600 mm)	Max. 28.9 in. (736 mm)
Ink	Type		ECO-UV (EUV5) 220 ml cartridge (white) ECO-UVS 220 ml cartridge (cyan, magenta, yellow, black, white) ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer)
	Colors		Eight colors (cyan, magenta, yellow, black, red, orange, white, gloss) Seven colors (cyan, magenta, yellow, black, red, orange, white) Seven colors(cyan, magenta, yellow, black, red, orange, white) and primer Seven colors(cyan, magenta, yellow, black, red, white, gloss) and primer Six colors(cyan, magenta, yellow, black, white, gloss) and primer Six colors(cyan, magenta, yellow, black, white, gloss) Four colors(cyan, magenta, yellow, black) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Or and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Or and Gl) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Pr and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Pr and Gl)
Ink curing unit			Built-in UV-LED lamp
Print resolution (dots per inch)			Max. 1440 dpi
Print Speeds			MG-640: 150 sqft/hr at 720 × 720 dpi MG-300: 120 sqft/hr at 720 × 720 dpi
Cutting speed			0.39 to 11.8 in./s (10 to 300 mm/s)
Blade force²			30 to 500 gf
Blade	Type		Roland CAMM-1 series blade
	Offset		0 to 59 mil (0 to 1.500 mm)
Software resolution (when cutting)			0.98 mil/step (0.025 mm/step)
Connectivity			Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function			Automatic sleep feature
Power requirements			100-240 Va.c. 50/60Hz 2.8 A	100-240 Va.c. 50/60Hz 2.7 A
Power consumption	During operation		Approx. 250 W	Approx. 240 W
	Sleep mode		40 W
Acoustic noise level	During operation		63 dB (A) or less
	During standby		53 dB (A) or less
Dimensions (with stand)			111 [W] x 31 [D] x 52 [H] in. (2819 (W) x 781 (D) x 1316 (H) mm)	77 [W] x 31 [D] x 52 [H] in. (1945 (W) x 781 (D) x 1316 (H) mm
Weight (with stand)			360 lb. (163 kg)	276 lb. (125 kg)
Environment	During operation³	Temperature: 59 to 89.6 °F (15 to 32 °C), fumidity: 20 to 80 %RH (no condensation)
	Not operating	Temperature : 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
