Roland TrueVis LG Series UV Printer/Cutter

2 Year Trouble Free Warranty Included!
Integrated Print and Cut Functionality: This series combines UV-LED printing with precision cutting in one machine, leveraging the TrueVIS heritage.
UV-LED Printing with Specialty Effects: The printer uses ECO-UV (EUV5P) inks and UV-LED lamps for instant curing.
High-Speed Productivity: The LG series is designed for efficiency with brand-new staggered print heads and instantly cured UV ink.
Versatile Media Compatibility: The device can handle a broad range of media types and sizes, accommodating different business needs.

Printer/Cutter Model: LG-640 64" UV Printer/Cutter

$26,395.00 Save $-26,395

Overview Details Supplies Specs Instructions

Instantly elevate your production capabilities with the Roland TrueVIS LG Series UV Printer/Cutter—a high-performance solution that pairs blazing-fast UV-LED printing with integrated contour cutting for unmatched efficiency. Deliver premium, high-definition graphics with stunning white and gloss effects, textured finishes, and exceptional color accuracy, ideal for labels, decals, backlit displays, packaging prototypes, and more. Designed for speed and reliability, the LG Series features advanced print heads and an intuitive 7" touchscreen to streamline workflow and boost throughput. With its broad media compatibility and high-value output, the LG Series gives your business the versatility and competitive edge needed to stand out and grow.

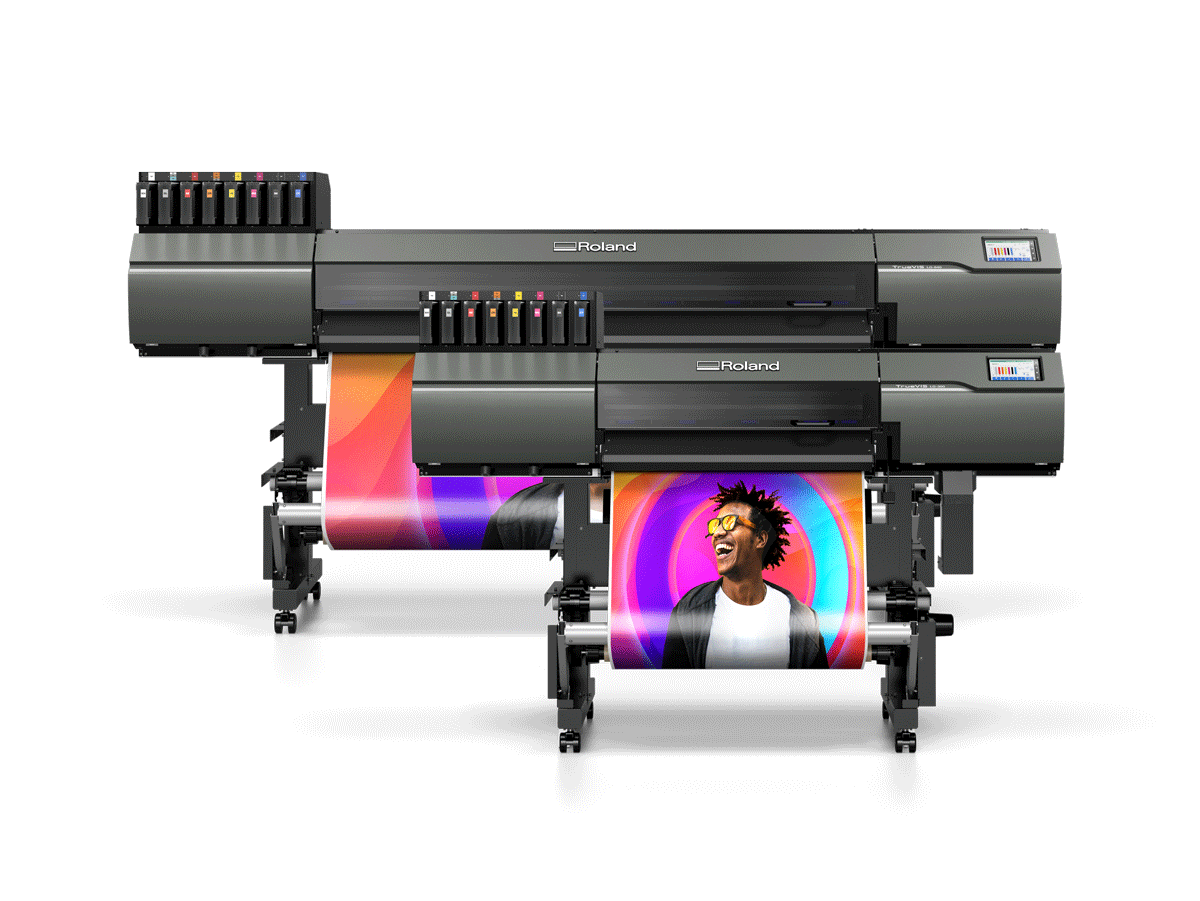

TruVIS LG Series

Wide-Format UV Printer & Cutter

Instantly elevate your offerings with the Roland TrueVIS LG Series UV Printer/Cutter. This high-production powerhouse gives you a competitive edge by combining blazing-fast UV-LED printing with integrated contour cutting in one machine. Deliver premium, high-definition graphics, specialty textures, and striking white/gloss effects that generate higher profit margins on everything from labels and decals to backlit signs and packaging prototypes.

The LG Series is built for speed and reliability, featuring new print heads and a user-friendly 7" touchscreen to maximize your throughput. It offers exceptional color fidelity and broad media compatibility, ensuring brand-accurate results quickly and efficiently. Invest in the LG series and transform your business with unparalleled versatility and high-value output.

Download Datasheet

LG Series UV Print Cut Solutions

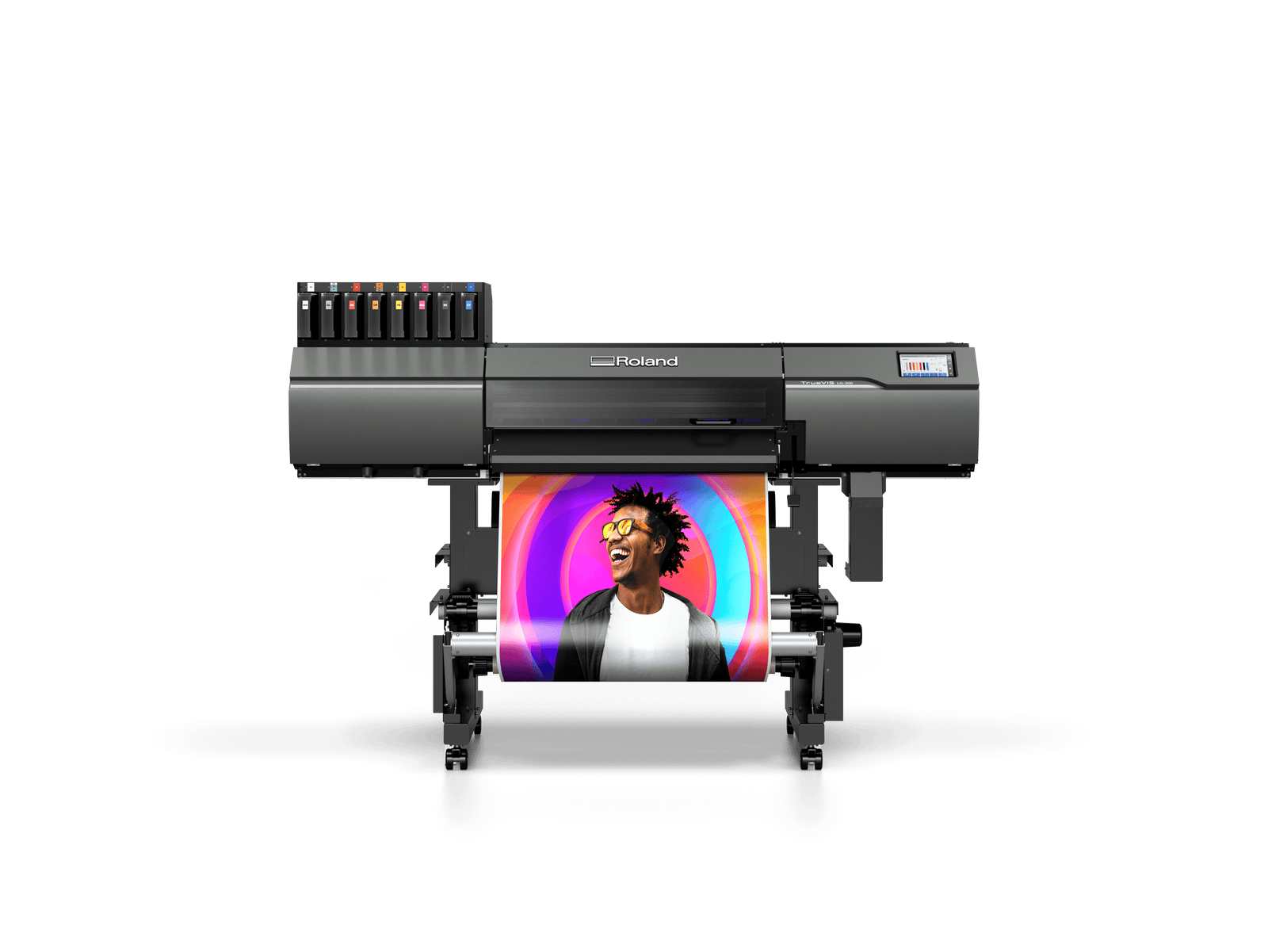

LG-300

30" Ideal for creating high-quality, vibrant stickers and labels with precision.

LG-640

64" Built to excel in creating bold, eye-catching signage and seamless vehicle wraps.

Take Print and Cut Further

TrueVIS is synonymous with industry-leading print-and-cut machines. Enhance your capabilities with the added power of premium-quality UV-LED printing technology and specialty effects capabilities to offer your customers even more products.

Backlit Graphics

Print high-quality EUV ink onto a wide range of semi-transparent backlit media to create eye-catching lightboxes.

Window Graphics

With high-opacity white ink and excellent media compatibility, you can produce everything from static clings to window stickers.

Stickers and Labels

Quickly produce sticker, decals and labels with great color accuracy, and even add stylish gloss details.

Packaging Prototypes

Capable of printing onto thin films and semi-rigid cardboard. You can create prototypes from packaging boxes to flexible pouches.

Signage

Produce graphics that stand up to close inspection, even on a large scale. The TrueVIS solution helps you transform office spaces and residential interiors with eye-catching graphics produced with GREENGUARD Gold certified inks.

POP and Displays

Roland DG’s TrueVIS UV print and cut solution is perfect for creating a wide range of in-store promotional graphics.

Specialized Art Prints

Produce luxury art prints utilizing enhanced features such as simulated oil paint brush strokes and more.

Ultimate Print Expression

The combination of ultra high-definition print technology and specially formulated UV ink lets you accurately reproduce colors in a wide color gamut.

Certified for Commercial-Grade Type II Wall Coverings

Roland DG EUV5 inks have met industry-standard Type II certifications for popular non-PVC wall covering materials*, ideal for commercial and hospitality applications.

* EUV5 ink has passed commercial-grade requirements on specific materials. For Type II certifications, testing is required on each individual material. Inquire to learn more about which materials are certified for your application.

Certified for Commercial-Grade Type II Wall Coverings

VersaWorks 7 RIP Software is included with machine purchase and offers Roland DG Color System and Pantone® libraries, advanced tiling, nesting, variable data and many more features to ensure quality print output.

Low Running Cost Long-life printheads and ink-clogging prevention features extend product life and ensure sustained quality.

Perforated Cut Separate individual jobs without cutting the backing sheet for unattended long runs.

Color Match your customers' color with ease thanks to advanced RIP features.

Mobile Cost Tracking Track ink usage and more in real time with the Roland DG Connect mobile app.

Profiles Access Roland DG's library of ICC profiles and find hundreds of profiles to match your needs.

A New Dimension in Print and Cut

LG and MG Ink Configurations

Eight Color CMYK GL WH OR RD

Seven Colors CMYK GL WH RD PR

Seven Color CMYK WH OR RD PR

Seven Color CMYK 2xWH OR RD

Six Colors CMYK GL 2xWH PR

Six Color CMYK 2xGL 2xWH

Four Color CMYK CMYK

Optimum Productivity

Model			LG-640	LG-300
Printing method			Piezo ink-jet method
Media	Width		13.2 to 64 in. (335 to 1625 mm)	7.2 to 30 in. (182 to 762 mm)
	Thickness		Max. 39.3 mil (1.0 mm) with liner, for printing Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
	Roll outer diameter		Max. 9.8 in. (250 mm)
	Roll weight		Max. 99 lb. (45 kg)	Max. 66 lb. (30 kg)
	Core diameter		3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing / cutting width			Max. 62.9 in. (1600 mm)	Max. 28.9 in. (736 mm)
Ink	Type		ECO-UV (EUV5P) 750ml pouch
	Colors		Eight colors (CMYK, Gloss, White, Orange, Red) Seven colors (CMYK, Gloss, White, Red) + Primer Seven colors (CMYK, White, Orange, Red) + Primer Seven colors (CMYK, White, Orange, Red) Six colors (CMYK, Gloss, White) + Primer Six colors (CMYK, Gloss, White) Four colors (CMYK)
Ink curing unit			Built-in UV-LED lamp
Print resolution			Max. 1200 dpi
Print Speeds			LG-640: 343 sqft/hr at 720 × 600 dpi LG-300: 232 sqft/hr at 720 × 600 dpi
Cutting speed			0.39 to 11.8 in./s (10 to 300 mm/s)
Blade force			30 to 500 gf
Blade	Type		Roland CAMM-1 series blade
	Offset		0 to 59 mil (0 to 1.500 mm)
Software resolution			0.98 mil/step (0.025 mm/step)
Media heating system			Front heater set temperature: 86 to 131 °F (30 to 55 ℃)
Connectivity			Ethernet (100BASE-TX/1000BASE-T)
Power-saving function			Automatic sleep feature
Power requirements			100-120/220-240 V, 50/60 Hz 6.5/3.2 A	100-120/220-240 V, 50/60 Hz 5.7/2.6 A
Power consumption	During operation		Approx. 800 W	Approx. 650 W
	Sleep mode		Approx. 85 W
Acoustic noise level	During operation		63 dB (A) or less
	During standby		58 dB (A) or less
Dimensions (with stand)			114.3 × 29.5 × 55.6 in.	80.3 × 29.5 × 55.6 in.
Weight (with stand)			461 lb. (209 kg)	371 lb. (168 kg)
Environment	During operation	68 to 89.6 °F (20 to 32 ℃), 35–80% RH (no condensation)
	Not operating	41 to 104 °F (5 to 40 ℃), 20–80% RH (no condensation)
