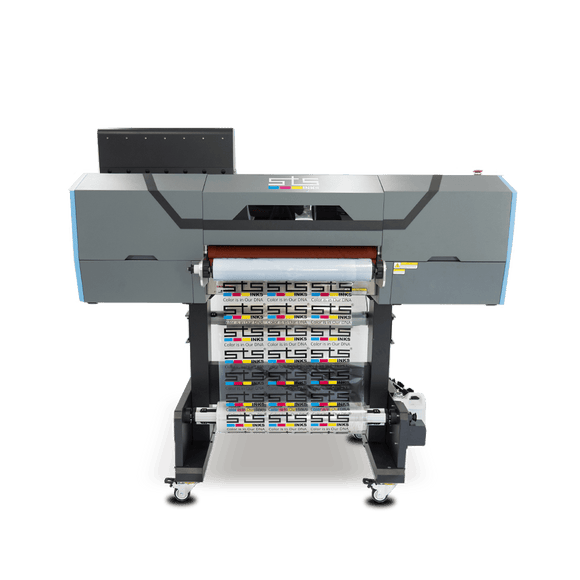

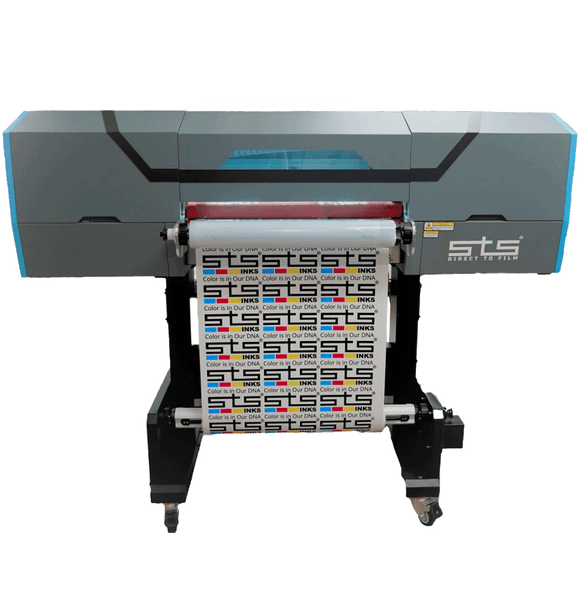

STS S604 UV Direct to Film Laminating Printer

  • Purpose-Built for UV-DTF Transfers
  • Prints on Curved and Uneven Surfaces
  • Inline Lamination - No Weeding Needed
  • Compact Design with One-Touch Operation


$26,950.00

STS S604 UV DTF Printer

The STS S604 UV DTF printer is a performance powerhouse built for businesses ready to take their transfer printing to the next level. Featuring Epson I3200 printheads that deliver stunning 2,400 dpi resolution, large 1.5 L bulk ink reservoirs, and a built-in white-ink recirculation system that keeps production running smoothly, this printer is engineered for speed, consistency, and precision. Its UV LED curing system and heated lamination rollers ensure crisp, durable results every time, while the 24.4-inch media width and 1.5–6 mm media thickness range provide flexibility for both roll and sheet media applications.

When it comes to value, the S604 hits the sweet spot. For a machine that integrates lamination, UV curing, white ink, adhesive layers for film transfer, and ultra-high resolution, the price point makes it one of the smartest investments in today’s printing market. UV DTF technology empowers shops to diversify their offerings, boost profit margins, and capture new revenue streams through premium, customizable transfer products.

The possibilities with UV Transfers are endless. From decorating glass, metal, wood, and plastics to customizing phone cases, packaging, labels, and signage, the S604 enables you to print vibrant, full-color graphics that adhere to virtually any surface. This technology transforms a traditional apparel or signage shop into a full-service customization studio capable of producing high-end, short-run, and one-off designs that customers love.

Financially, UV DTF is a growth engine. As one of the fastest-growing segments in printing technology, demand for UV transfers is surging thanks to their instant curing, fast turnaround times, and premium quality. The S604’s efficiency means higher output, fewer wasted materials, and faster order completion — all translating into greater profit per job. Combined with the ability to expand into new verticals such as promotional products and specialty decor, this printer isn’t just a production tool — it’s a business expansion strategy.

In short, the STS S604 UV DTF printer delivers professional-grade results, unmatched flexibility, and a return on investment that makes sense for any forward-thinking print business. It’s powerful, profitable, and perfectly positioned at the center of the UV revolution.

STS S604 UV DTF Printer Features

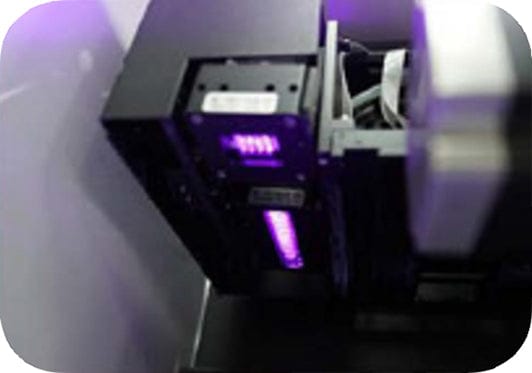

UV Lamp Curing

UV Lamp Curing

The temperature and intensity of the UV Lamp is adjustable to provide instant curing of the ink on the adhesive substrate.

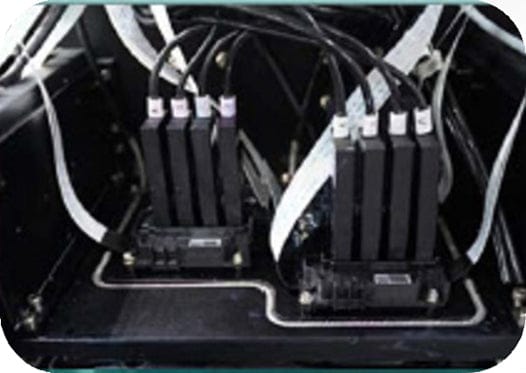

Nozzle Heating System

Nozzle Heating System

The printhead has the ability to heat, controlling the viscosity in low temperature environments, ensuring proper flow of ink to the head for proper jetting.

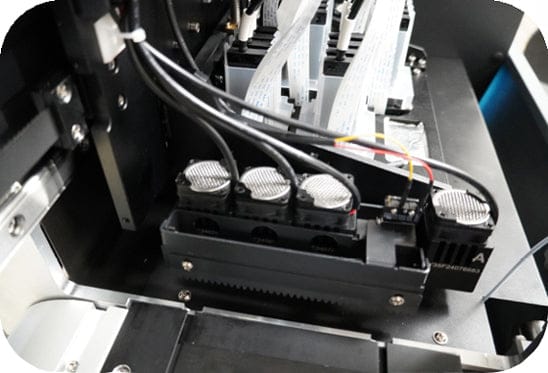

Air Cooling Units

Air Cooling Units

7 separate UV LED air cooling units which work in unison to cool the LED lamps while also being able to still run efficiently if one needs to be replaced so your printer is never down.

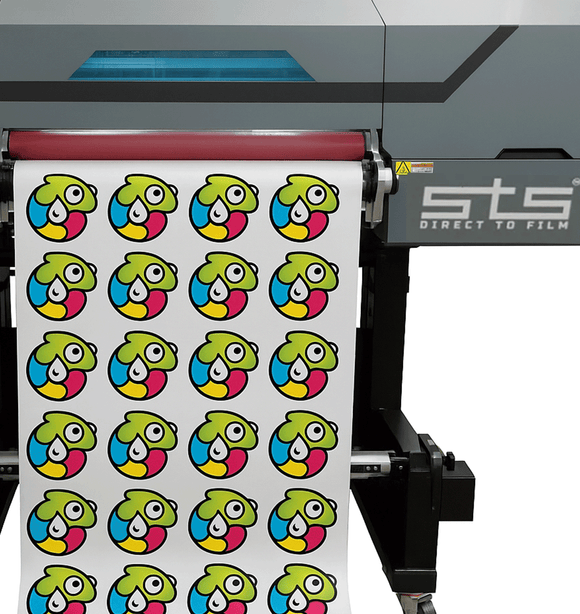

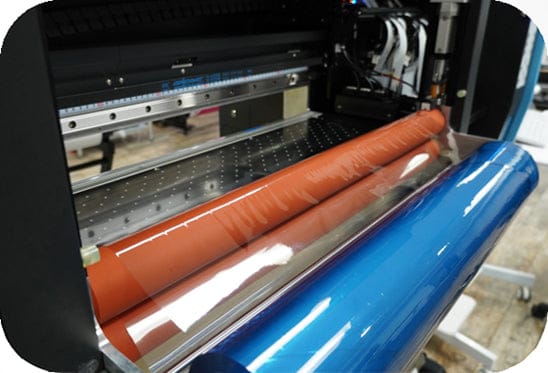

Laminator-Roller Heating System

Laminator-Roller Heating System

The in-line laminator rollers are heated to accelerate drying the printed image and support proper lamination for improved efficiency.

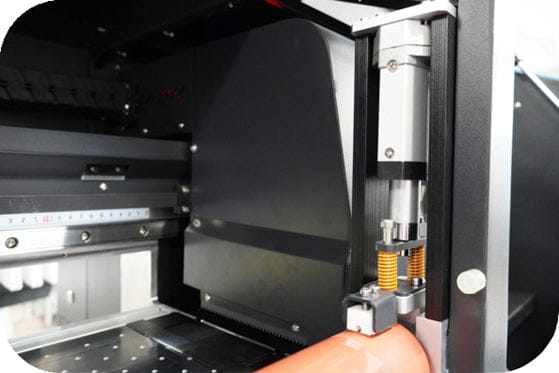

Automatic Heat Rollers

Automatic Heat Rollers

Automatic pressurized heat rollers eliminates human error and produces the ideal amount of pressure for perfect lamination between the A + B film and prevents skewing.

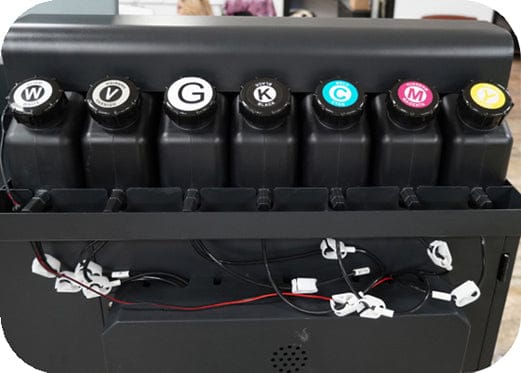

Ink Supply System

Ink Supply System

The printer incorporates a 1.5 Liter bulk supply system to ensure continuous printing of large production needs and permits on the fly refilling. The white ink reservoir has a continuous agitator to ensure that there is no settling of white ink particles in the tank.

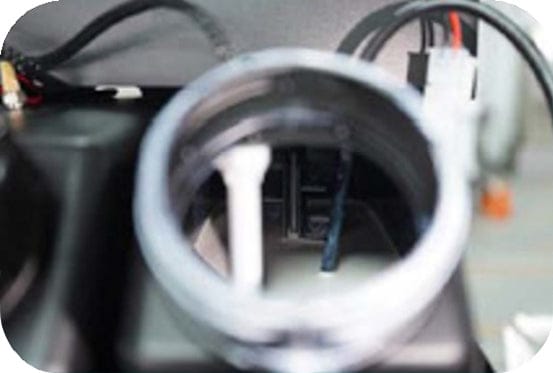

White Ink Recirculation

White Ink Recirculation

The STS S604 has a built in white ink recirculation system to prevent white ink from clogging the print heads. This ensures uninterrupted, continuous production.

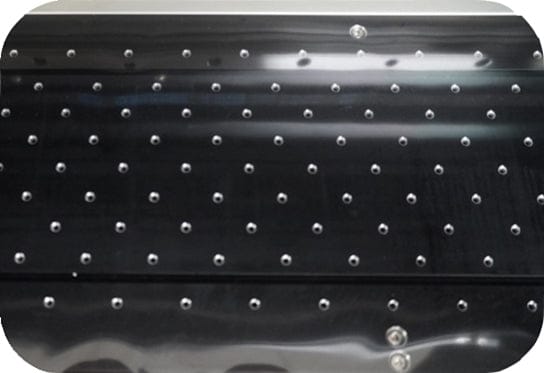

Adaptive Vacuum Settings

Adaptive Vacuum Settings

5 various speed settings for ideal suction from the vacuum plate to properly hold down the film which reduces the likeness of head strikes and prevents the film from leaving residue on the print head.

Specification Details
Model STS S604
Printing Systems I3200 Epson printhead, high quality up to 2400 dpi
Nozzle Number 4 × I3200: CMYK + White + Varnish + Glue
Nozzle Number 3 × I3200: CMYK + White + Varnish
Print Accuracy / Speed (metric) 4 pass: 12 m²/h  |  6 pass: 8 m²/h  |  8 pass: 5 m²/h
Print Accuracy / Speed (imperial) 4 pass: 129 ft²/h  |  6 pass: 86 ft²/h  |  8 pass: 53 ft²/h
High Printing Quality VSD Technology
Media Heater Pre/Post Heater (can be controlled separately)
Print Interface USB 2.0
RIP Software CADlink  |  FlexiPRINT  |  Inedit
Voltage AC 110V ±10%
Operating Environment – Temperature 20 °C – 30 °C  |  68 °F – 86 °F
Operating Environment – Humidity 35% RH – 65% RH
Power 200 W for drawing and 450 W for heating (front, middle, back)
Dimensions of Printer (L × W × H) 1785 mm × 790 mm × 1613 mm  |  70.27″ × 31.1″ × 63.5″
Dimensions of Packing (L × W × H) 2100 mm × 970 mm × 730 mm  |  82.67″ × 38.18″ × 28.74″
Height of Worktable 1062 mm  |  41.81″
Net Weight 200 kg  |  440.925 lb
Gross Weight 220 kg  |  485 lb
Ink
Sort UV DTF / Prop 65
Media
Capacity 5 Colors: 1.5 L × 7/color
Maximum Width 620 mm  |  24.4″
Thickness 1.5 mm to 6 mm (adjustable)
Max Roll Weight 20 kg  |  44 lb
Sort UV-DTF

Instructions for the STS S604 UV Direct to Film Laminating Printer

No additional instructions found for this product.

Applications

drag for more

Enamel mug with UV-DTF transfer of the outdoors
Vase with UV-DTF transfer of a cat
Helmet with UV-DTF transfers with
Lunchbox with UV-DTF transfers of vegtables
Race car helmet with UV-DTF transfer of

garmentprinterink mascot inky dressed as an explorer
