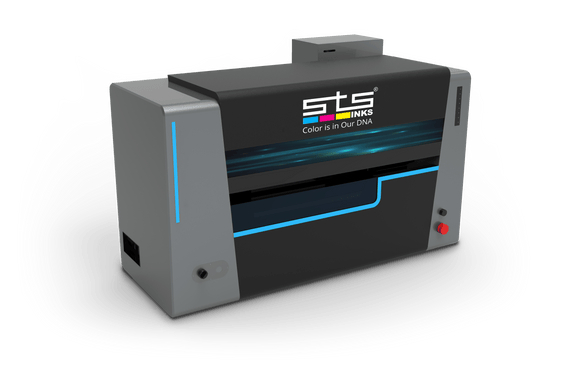

STS UV Printer STS C-3 Cylindrical UV Printer

STS C-3 Cylindrical UV Production Printer

Three Industrial Print Heads: Epson i1600 printheads produce super fine detail as blazing speeds
Real Production: Prints a full bottle wrap in 1.3 minutes. No other printer comes close!
Strong Adhesion: Compatible with a wide range of materials and produces a permeant print.
Automatic Bottle Adjustment: Print bottles from 2.1 to 7 inches in diameter with varying degrees of taper.

$32,000.00 $44,950.00 Save $12,950

Overview Details Supplies Specs Instructions

The STS C-3 Cylindrical UV Printer is a powerful direct-to-object printing solution designed for exceptional quality and versatility across a wide range of cylindrical and conical products. Equipped with precision Epson i1600 printheads, Variable Ink Drop Technology, and automatic bottle adjustment, it delivers sharp, vibrant, and durable prints with minimal setup. Its advanced LED UV curing system and superior adhesion ensure flawless results on stainless steel, glass, plastics, and more—making it ideal for thermos cups, wine bottles, candles, cosmetic containers, and beyond. With support for diameters from 2.1" to 7" and lengths up to 9.4", the STS C-3 provides unmatched flexibility for businesses in multiple industries.

STS C-3 Cylindrical UV Printer

7" Diameter | CMYK+White + Gloss

The STS C-3 Cylindrical UV Printer is the ultimate solution for high-quality, direct-to-object printing on a wide range of cylindrical and conical products. Featuring precision Epson i1600 printheads, Variable Ink Drop Technology, and automatic bottle adjustment, this printer delivers sharp, vibrant, and long-lasting designs with minimal setup time. Its advanced LED UV curing system and strong adhesion capabilities ensure flawless results on stainless steel, glass, plastics, and more—perfect for thermos cups, wine bottles, candles, cosmetic bottles, and countless other items. With the ability to handle diameters from 2.1" to 7" and lengths up to 9.4", the STS C-3 offers unmatched versatility across industries

Efficiency Meets Versatility

High-Speed Printing

The STS C-3 sets a new benchmark for efficiency with its High-Speed Printing capability—able to produce a full 7-inch diameter wrap-around print in just 1.5 minutes. This level of performance is unmatched in the market, allowing you to turn around high-quality, full-color cylindrical prints faster than ever before. Whether you’re handling large production runs or time-sensitive custom orders, the C-3’s speed means you can meet demand without compromising on quality

Tapered or Non-Tapered

The STS C-3 isn’t limited to straight-walled products—it’s engineered to handle tapered and non-tapered objects with precision. Thanks to its air-compressor-controlled auto-lifting mechanism, it can print seamlessly on items with up to a 12-inch taper, automatically adjusting to the contour of the object during the print process

CMYK White AND GLOSS

The STS C-3’s CMYK + White + Gloss ink configuration gives you complete creative freedom to produce stunning, high-impact designs on virtually any surface. The CMYK inks deliver full-color, photo-quality prints, while the white ink acts as a base layer on dark or transparent materials, ensuring colors stay bright and true. This is especially valuable when printing on glass, stainless steel, or colored substrates where standard CMYK alone would lose vibrancy

Range of Materials

The STS C-3 offers exceptional versatility with its ability to print on a wide range of materials, including stainless steel, aluminum, glass, plastic, ceramics, and even coated wood . Whether the surface is cylindrical or conical, transparent or opaque, the printer’s strong adhesion Eco UV curing inks ensure that every design bonds securely for vibrant, long-lasting results.

Experience the STS Advantage

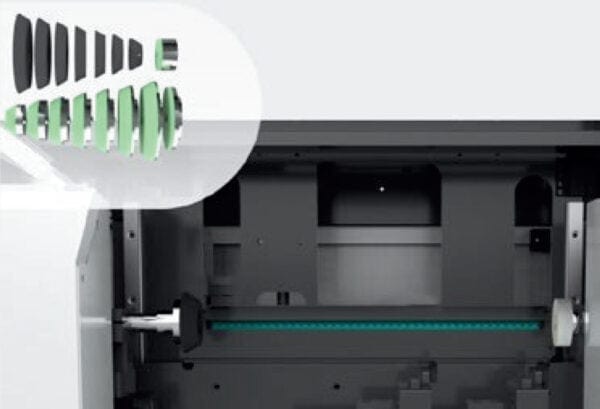

The built-in sensors detect the varying sizes of each bottle and automatically adjust the settings to ensure precise printing, eliminating the need for manual adjustments.

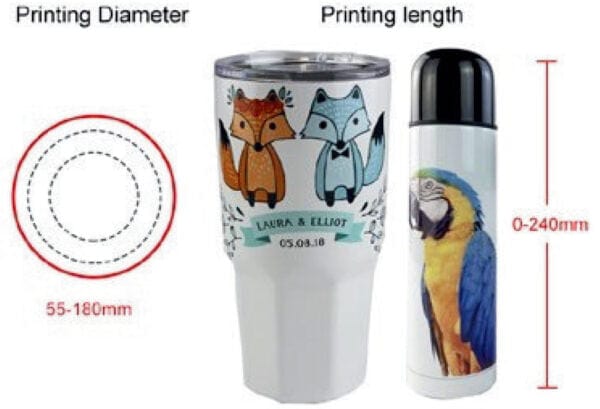

7" Diameter Printing

The system supports a printing length from 0 to 9.4 inches and a printing diameter from 2.1 to 7 inches, enabling compatibility with a wide variety of products, such as thermos cups, cylindrical electronic devices, and wine bottles. This versatile solution offers extensive application across multiple industries.

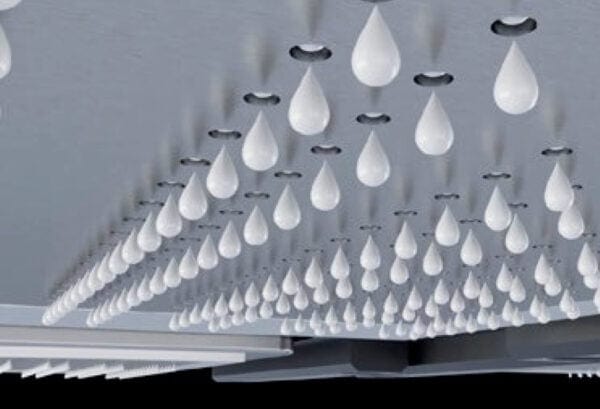

Variable Ink Drop Technology

Variable Ink Drop Technology controls the voltage that powers the printhead components so that the same nozzle can drop ink down in various sizes as needed which produces high quality images at high speed with vibrancy and smooth gradations.

Super Fast UV Printing

Supports 8mm high-drop printing, with automatic laser measurement of product shape for precise positioning. Enables seamless and accurate printing on irregularly shaped products.

STS C-3 Key Features

STS Backed by STS Inks’ decades of innovation and global reputation for excellence, this printer empowers businesses to expand product offerings, impress customers with full-color, photo-quality designs, and achieve a competitive edge in the booming custom product market

Precision Automatic laser measurement enables seamless printing on irregular shapes, while the siphon positive pressure ink supply system ensures consistent performance.

Speed Engineered for speed, accuracy, and durability, the STS C-3 streamlines production while maintaining exceptional print quality from start to finish.

Fine Detail perfect for thermos cups, wine bottles, candles, cosmetic bottles, and countless other items.

STS C-3 Video

Specification	Details
PRINTER NAME	Cylindrical UV Printer
PRINTING RESOLUTION	720 DPI - 2880 DPI
MODEL	STS C-3
PRINT HEAD	Epson i1600
NUMBER OF PRINT HEAD	3 pcs
PRINT SIZE	0 - 240 mm \| 0 - 9.44” Length 55 - 180 mm \| 2.16” - 7.08” Diameter 12” Tape
INK MODE	CMYK + W + V
INK TYPE	Eco UV Curing Ink
INK SYSTEM	Siphon positive pressure ink supply system
RIP SOFTWARE	CADLink \| FlexiPRINT \| Inedit
FILE FORMAT	TIFF, JPEG, EPS, PDF, ETC
INTERFACE TYPE	High-Speed 3.0 USB cable
VOLTAGE	AC110V+/-10%
PLATFORM JIG	Special printing fixture
DIMENSIONS OF PRINTER (LxWxH)	1340mm * 480mm * 730mm \| 52.7” * 18.9” * 28.74”
OPERATING ENVIRONMENTS	Temperature: 15°C - 30°C \| 57°F - 86°F Humidity: 30% RH - 70% RH
RATED POWER	1300W
MACHINE WEIGHT	200 kg \| 441 lb

12-Month Warranty: STS Inks provides a 12-month warranty covering replacement of faulty materials within the first year of purchase, excluding damage caused by the user or circumstances unrelated to manufacturing defects. Consumable parts like ink, printheads, capping stations, dampers, and waste bottles are not covered, except in cases of DOA (Dead On Arrival). The warranty does not apply to products with removed serial numbers or those damaged due to misuse, accidents, spills, or inadequate maintenance. Consumable parts are available for purchase if needed.

Applications
