Melco Embroidery Machines Melco BRAVO 16-Needle Embroidery Machine

Melco BRAVO 16-Needle Embroidery Machine

Kickstart Your Side Hustle Without the Hassle

16 Needles = Faster, Cleaner Multicolor Run: Switch threads less and stitch more—perfect for complex, colorful designs without the downtime.

Acti-Feed™ Auto-Tensioning: Automatically adjusts tension for smooth stitching on any fabric—less breakage, better results.

12.6” x 10.25” Sewing Field: Room to work. Tackle bigger pieces like jackets and bags with precision and ease.

Software Options Tailored to Your Workflow: Editor for clean lettering, Vector for seamless artwork conversion, and Professional for full-scale digitizing and advanced creative control.

$11,885.00

Overview Details Supplies Specs Instructions

Melco BRAVO

16-Needle Embroidery Machine

With 16 needles, powerful features, and an affordable price, the BRAVO is your gateway to professional-quality embroidery. It handles apparel, caps, bags, and more with fast, clean stitching. Enjoy simple operation with BRAVO OS, low-maintenance thread trimming, and Melco's patented Acti-Feed™ auto-tensioning—engineered for maximum usability, flexibility, and control.

  • 16 Needles For Color Flexibility And Efficient Embroidery Production
  • 1000 Stitches Per Minute
  • Patented Acti-Feed™ Thread Control With Auto-Tension
  • 6” x 3.2” Cap Frame*
  • Large 12.6” x 10.25” Sewing Field
  • User-friendly BRAVO OS
  • Easily Stitches On Leather, Denim, Vinyl And More
  • Laser Alignment and Positioning
Melco Bravo Embroidery Machine Download Datasheet

Experience the Melco Advantage

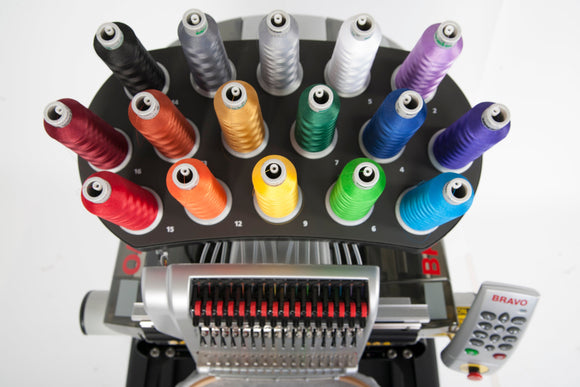

16 needles on Melco BRAVO

16 needles for color flexibility and efficient embroidery production. With class-leading specs and an array of advanced accessories all at an affordable price.

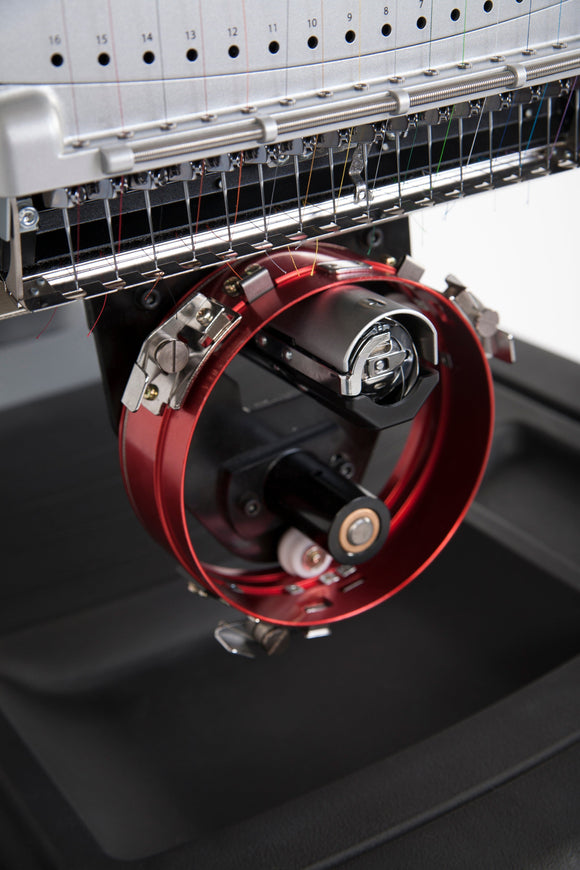

Melco Cap Driver in action

Get into the popular hat customization game with the included Melco Cap Driver.

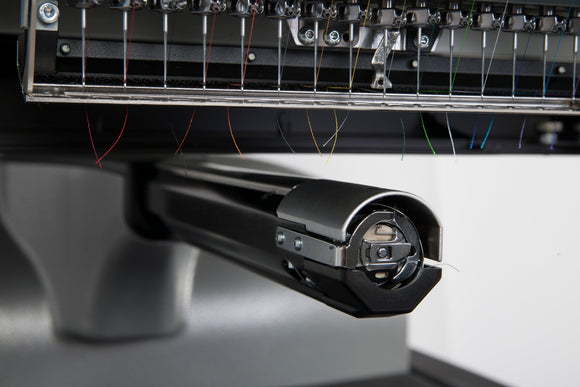

Auto Trimming System

The auto trimming system is durable and reliable. Overall trim time has been reduced dramatically, which in turn reduces overall sew time.

Acti-Feed™ auto-tensioning

Patented Acti-Feed™ thread control with auto-tension means less downtime and easier operation.

Starter Package Includes

Item
BRAVO Single-head 16-needle embroidery machine
Tubular Hoop Kit
BRAVO Starter Kit
DesignShop 12 Lettering Software (Editor / Vector / Professional)

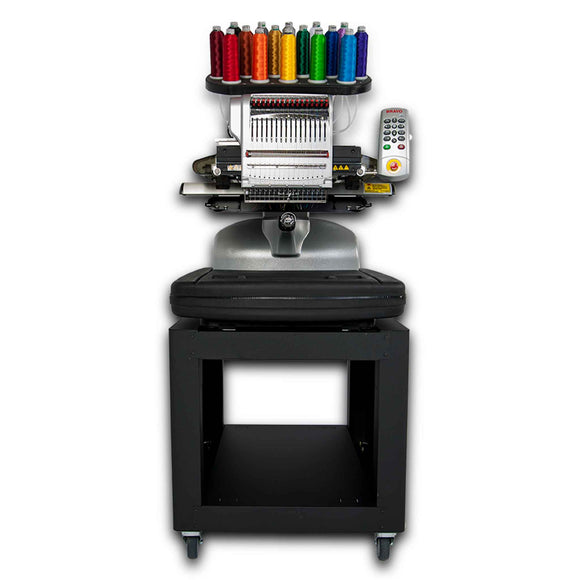

Steel Cart with Heavy Duty Casters

BRAVO Feature Details

DesignShop Software LevelLettering
Operating SoftwareBRAVO Lite
Maximum Tubular Frame Size (X × Y)360 mm × 300 mm (14.2" × 11.8")
Maximum Sew Field/Tubular Frame (X × Y)322 mm × 267 mm (12.7" × 10.5")
Cap Frame Accessory152 mm × 82 mm (6" × 3.2") (front only)
Min/Max Sew Speed300 – 1000 spm
Simplified User InterfaceYes
# Needles16
Thread Feed TechnologyPatented Acti-Feed™
Stitch Length RangeDetermined by hoop size (max 12.7 mm)
Self-Diagnostics CapabilityRetrieves machine data for troubleshooting
Pre-Sew Trace LaserNeedle-to-garment & garment-to-hoop positioning
Design MemoryUnlimited by HDD (max file size 500 000 stitches)
Thread Break DetectionUpper & lower electronic force gauge sensor
Automatic Stitch BackupYes
Automatic TrimmerYes
Lighting TypeCold-bright LED
Machine Construction MaterialAluminum
Temperature Range15 – 40 °C
HumidityMax 85 % RH
Installation Category (overvoltage)II
Pollution Degree2
Motor Type(s)Servo, Stepping
Power Supply (V)90 – 260 V AC (1Ø, 50/60 Hz, 4 A), Class I
Power Consumption (W)480 W (4 A @ 120 V / 2 A @ 240 V)
Motor CapacityX & Z: 100 W; Y: 250 W
Physical (with Cart)W 724 mm × H 1541 mm × D 944 mm
95.4 kg (210.3 lbs)
Physical (without Cart)W 724 mm × H 907 mm × D 737 mm
75 kg (165 lbs)

Instructions for the Melco BRAVO 16-Needle Embroidery Machine

No additional instructions found for this product.
