Mimaki Cutter Mimaki CF22-1225 Wide Format Cutting Plotter

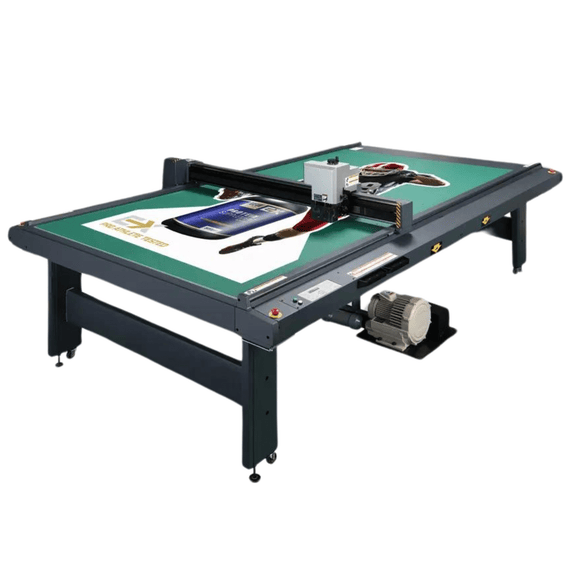

Mimaki CF22-1225 Wide Format Cutting Plotter

In Stock and Ready to Ship!

  • 4’ x 8’ cutting area with reciprocating, tangential and eccentric cutting functions; creasing function
  • Cut a variety of materials up to 20 mm thick
  • Multiple cutting head and tool holder configurations

$63,046.00

Overview Details Supplies Specs Instructions

Based on our proven CF2 platform, this flatbed large format cutter features a work area that can accommodate oversized media. It also allows a full 4-foot by 8-foot maximum cut size, so you can easily move materials directly from a standard flatbed printer. The CF22-1225 works equally well as a vinyl cutter plotter as it does for materials such as corrugated board, vinyl chloride (for clear package printing), corrugated plastic, reflecting sheets, and industrial sheet rubber.

Mimaki CF22-1225 Wide Format Cutting Plotter

Based on our proven CF2 platform, this flatbed large format cutter features a work area that can accommodate oversized media. It also allows a full 4-foot by 8-foot maximum cut size, so you can easily move materials directly from a standard flatbed printer. The CF22-1225 works equally well as a vinyl cutter plotter as it does for materials such as corrugated board, vinyl chloride (for clear package printing), corrugated plastic, reflecting sheets, and industrial sheet rubber.

Key Features:

  • 4’ x 8’ cutting area with reciprocating, tangential and eccentric cutting functions; creasing function
  • Cut a variety of materials up to 20 mm thick
  • Multiple cutting head and tool holder configurations

Perfect companion to the JFX Series UV-LED flatbed printers

FineCut9 software included

Our Core Technologies:

  • Continuous Mark Detect
  • Half Cut

Applications:

  • Sign & Display
  • POP
  • POS Display
  • Package
  • Industrial Cut

Specifications:

  • Effective Plotting Area: 98.4″ x 48.0″ (2500 x 1220 mm)
  • Maximum Media Width: 480.3″ (1220 mm)
  • Maximum Media Thickness: T / TD: 1″ / RT / RC: .8″ (T / TD: 25 mm / RT / RC: 20 mm)
  • Maximum Cut Speed: 21.7″ (55 cm)
  • Maximum Cut Pressure (Metric grams): Tangential: 1500g | High-pressure Tangential: 5000g | Line marking gauge roller: 5000g
  • Cutter Types: Pen/swivel, Tangential, High-pressure Tangential, Reciprocating
  • Interface: USB2.0, RS-232C, Ethernet
  • Power Supply: Single-phase (AC 100–120V / AC 220–240V±10%) 50/60Hz±1Hz
  • Power Consumption: 300 w
  • Operational Environment: Operational Temperature 40° – 104° F, Operational Humidity: 35–75 % RH (Non condensing)
  • Dimensions (W × D × H): 124.4″ x 76″ x 47.2″ (316 x 193 x 119.9 cm)
  • Weight: 507.1 lbs. (230 kg)
  • Certifications: VCCI-class A, FCC-class A, UL60950-1, CB Report (EN60950), CE Marking (Machinery), RoHS, REACH

Effective Plotting Area

98.4″ x 48.0″ (2500 x 1220 mm)

Maximum Media Width

480.3″ (1220 mm)

Maximum media thickness 

T / TD: 1″ / RT / RC: .8″ (T / TD: 25 mm / RT / RC: 20 mm)

Maximum Cut Speed

21.7″ (55 cm)

Maximum Cut pressure (Metric grams)

Tangential: 1500g | High-pressure Tangential: 5000g | Line marking guage roller: 5000g

Cutter Types

Pen/swivel, Tangential, High-pressure Tangential, Reciprocating

Interface

USB2.0, RS-232C, Ethernet

Power supply

Single-phase (AC 100–120V / AC 220–240V±10%) 50/60Hz±1Hz

Power consumption

300 w

Operational Environment

Operational Temperature 40° – 104° F
Operational Humidity: 35–75 % RH (Non condensing)

Dimensions (W × D × H)

124.4″ x 76″ x 47.2″ (316 x 193 x 119.9 cm)

Weight

507.1 lbs. (230 kg)

Certifications

VCCI-class A, FCC-class A, UL60950-1, CB Report (EN60950), CE Marking (Machinery), RoHS, REACH

Instructions for the Mimaki CF22-1225 Wide Format Cutting Plotter

No additional instructions found for this product.
