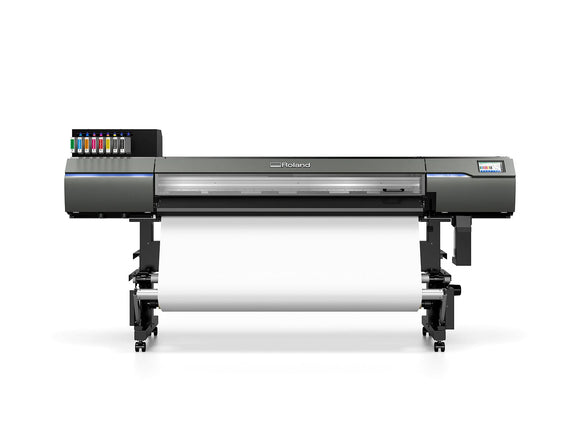

Roland TruVis XP-640 64" Eco-Solvent Printer

Fast & Precise: Dual printheads deliver speeds up to 819.1 sq ft/hr with sharp, high-resolution output.
Vivid Colors: New Red, Orange, and Green inks expand the gamut for lifelike, vibrant prints.
Easy Workflow: Automatic take-up system, perforated cutting, and a 7-inch touchscreen boost efficiency.
Cost-Effective: Low running costs and legendary Roland reliability maximize profitability.

$18,995.00 $20,995.00 Save $2,000

Explore financing options

Overview Details Supplies Specs Instructions

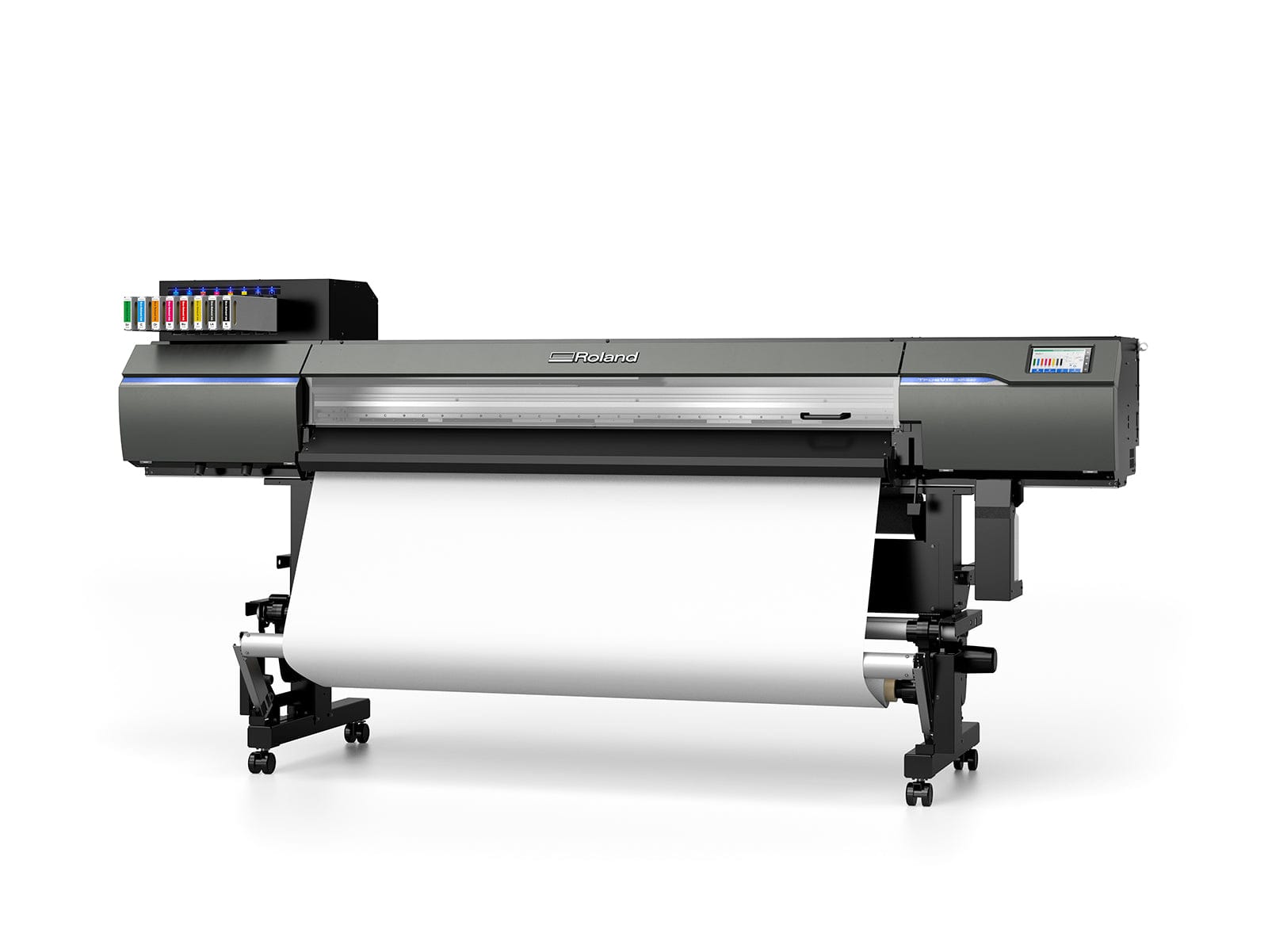

Roland TrueVIS XP-640

64" | Eco-Solvent | Print Only

Need speed and productivity without compromising image quality?

Roland's new XP-640 wide format eco-solvent printer delivers the best of both worlds — blazing print speeds paired with unparalleled TrueVIS color, vibrancy, and detail.

Backed by Roland DG’s trusted reliability and customer support, this intuitive printer delivers the versatility and performance to handle anything that comes your way.

Download Datasheet

Next-Gen Performance

Unmatched Productivity and Precision Two larger staggered printheads eject finer ink droplets at higher densities for high-resolution output with fewer passes.

TruVIS Quality Prints The True Rich Color preset delivers vivid colors, neutral grays, smooth gradations, and natural skin tones for stunning graphics.

Ultra-Wide Color Gamut A new red ink cartridge expands the color gamut, delivering unmatched vibrancy and maximum color expression.

Versatility Efficient and accurate production of a wide range of applications with diverse media support capabilities.

Cost Performance Low-cost TH inks and low ink consumption equals outstanding cost performance. Print confidently without breaking the bank.

Easy to Operate Equipped with perforated sheet cutting to reduce post-processing time and a 7-inch LCD panel for intuitive operation

Efficiency Meets Versatility

The XP-640 offers more than just high-volume production and superior image quality — it’s a powerhouse of innovation built to streamline your workflow. Equipped with advanced features designed to boost efficiency and enhance operations, this versatile printer excels across a wide range of applications.

Banners

Billboards

Vehicle Graphics

Event Marketing

Window and Floor Graphics

Backlit Signage

Wall Coverings

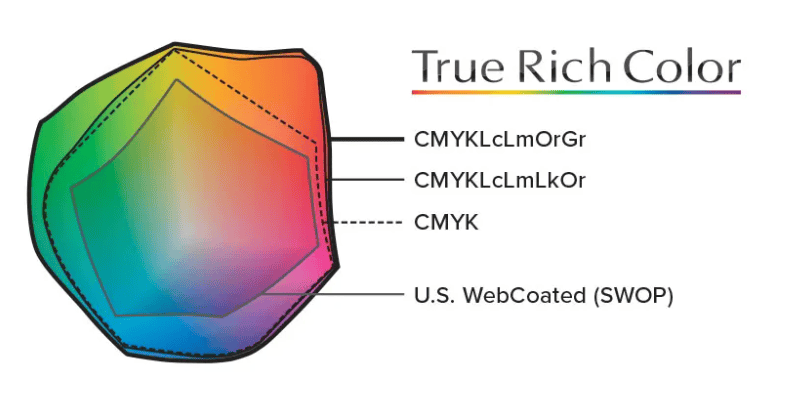

Introducing Our Widest Color Gamut Yet

Maximize your creative expression with our vibrant red ink cartridge. Seamlessly integrating with CMYK, light black, orange, and green, this brand new addition takes TrueVIS color performance to the next level. 

Achieve top-notch accuracy with red, the most crucial and frequently used color in sign graphics, and ensure your prints are as vivid and impactful as intended. Plus, corporate colors that were once difficult to replicate can now be reproduced with unmatched precision.

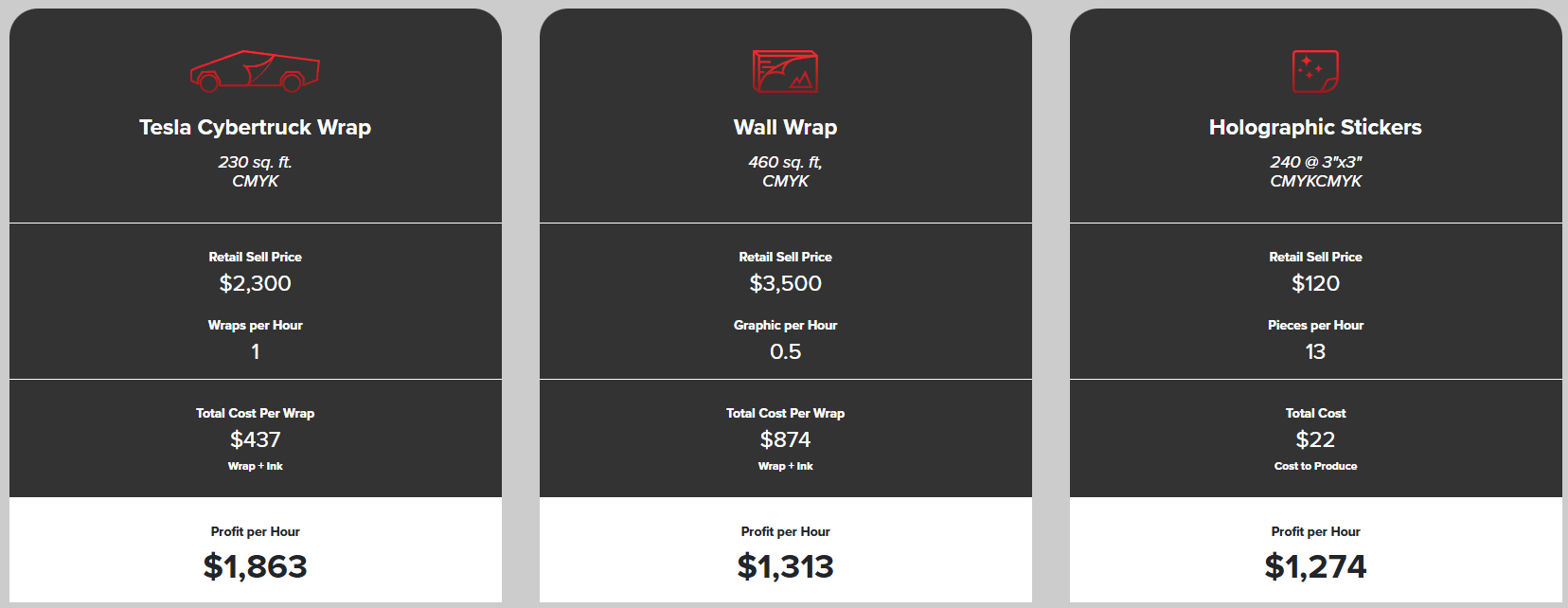

The Lowest Running Costs in Its Category

Reach new heights in cost-efficiency with innovative features that significantly reduce ink and operating costs — maximizing profitability on every job for your business. Perfect for high-volume production, the XP-640 uses new TH ink for more economical usage per milliliter and introduces the latest True Rich Color print setting to deliver the highest TrueVIS image quality while using less ink.

Large Format. Little Effort.

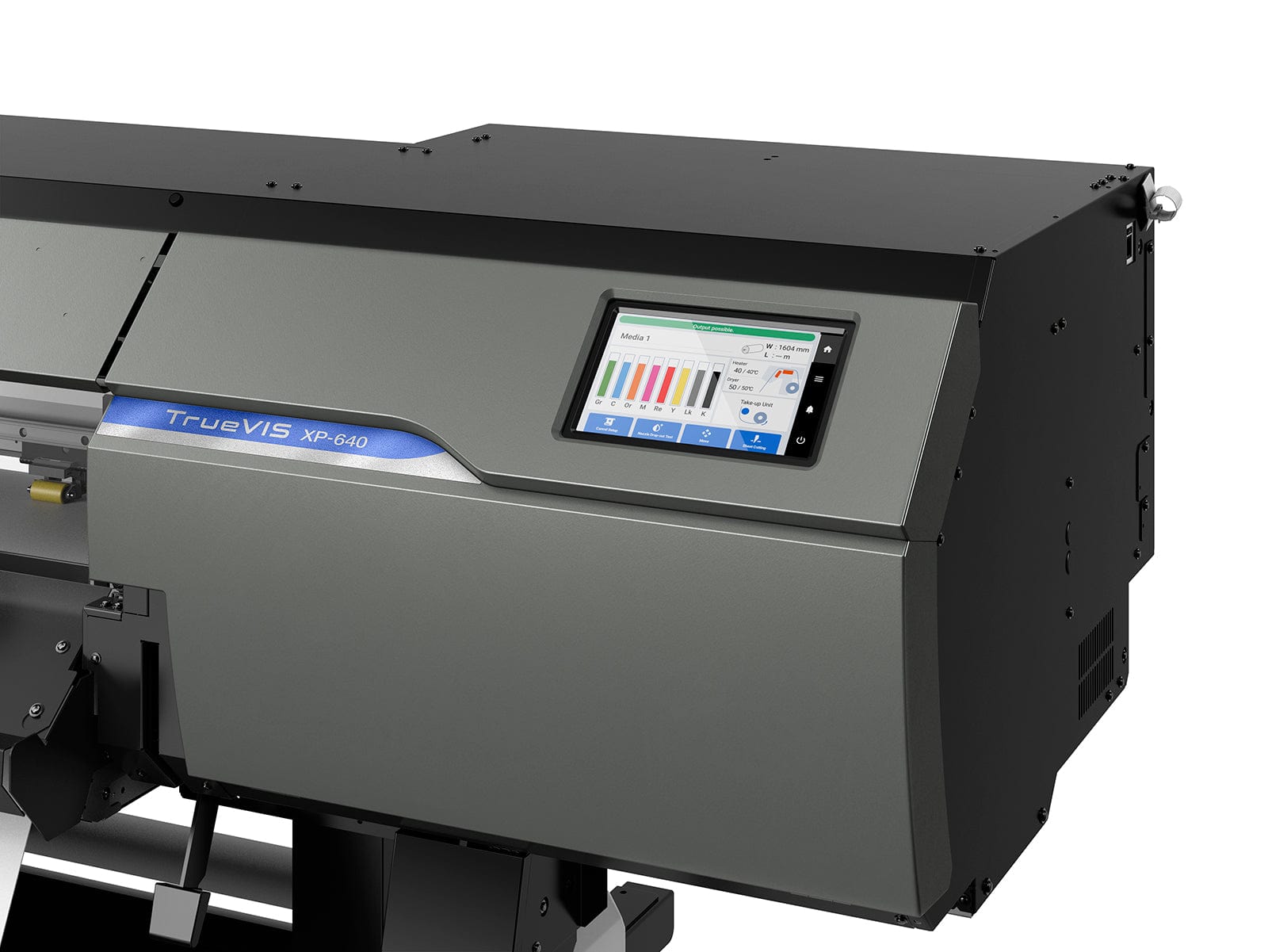

COLOR LCD SCREEN FOR QUICK AND EASY JOB ACCESS

The XP-640’s built-in 7-inch color LCD touchscreen control panel provides quick, intuitive access to important printer functions and information. With the touch of a button, you can get an update on remaining ink levels, printer status, print time, and more.

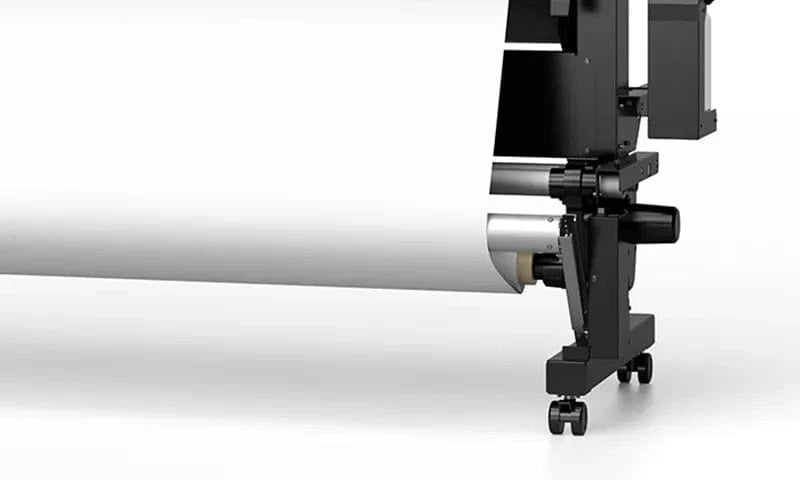

AUTOMATIC MEDIA TAKE-UP SYSTEM

Loading media is a breeze, thanks to the XP-640’s automatic media take-up system. Simply move the end of the media to the position of the paper tube on the take-up unit using the control panel and secure it to the paper tube with tape.

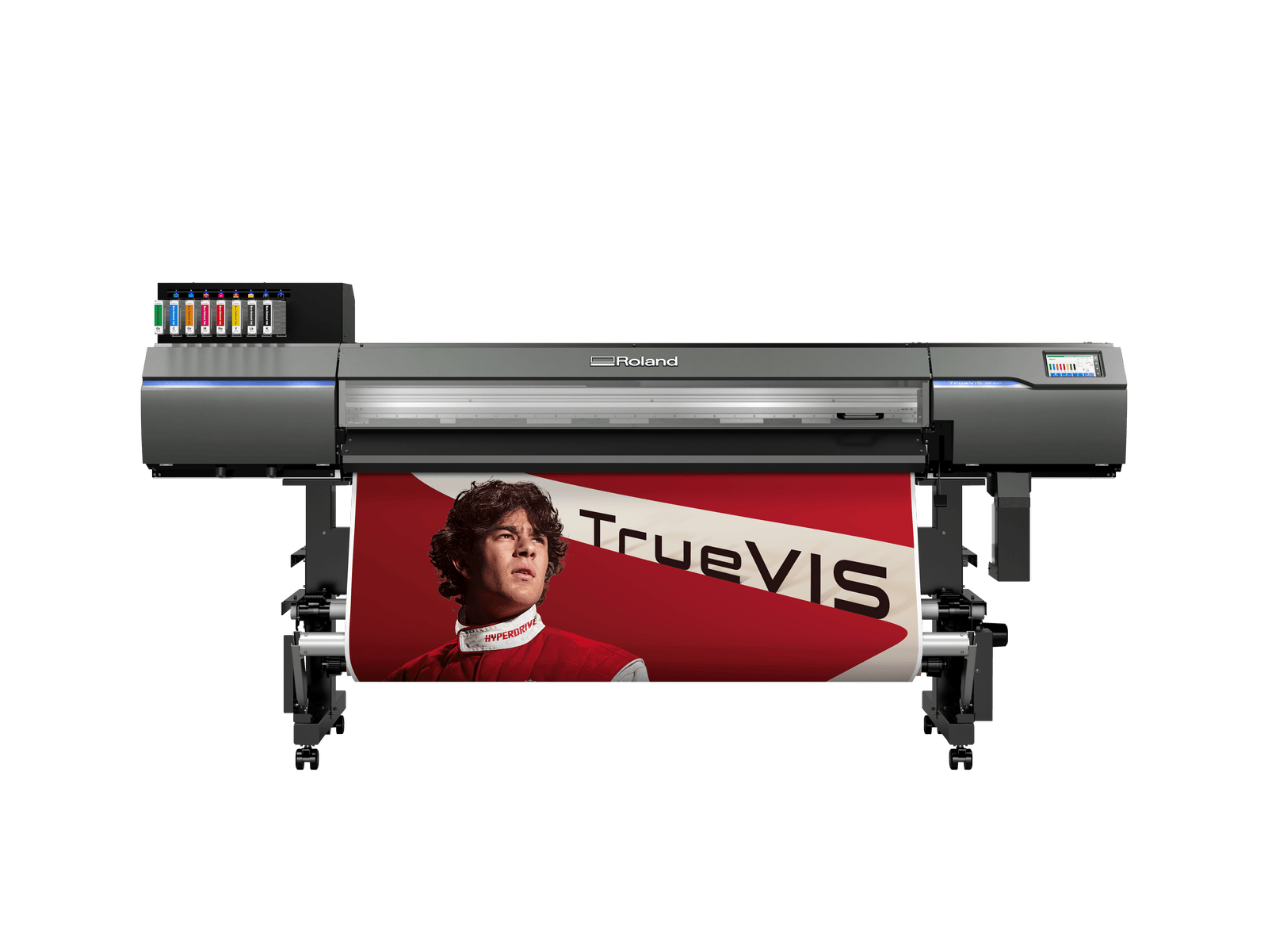

ADD PERFORATIONS FOR QUICK AND EASY SEPARATIONS

The XP-640’s new perforated sheet cut function makes it easy to add perforations for high-volume print jobs. This exclusive Roland DG feature eliminates cutting tools and reduces post-processing work, saving space and minimizing the risk of output damage.

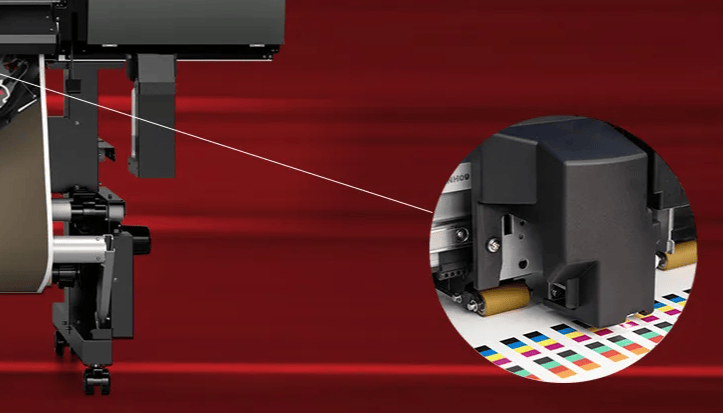

Save Time with Automatic Media Gap Adjustment

Free up more of your production time with automatic gap adjustment. What was previously a fully manual process that required multiple tests and adjustments is now an automated feature that uses TrueVIS optical registration technology to determine gaps, adjust, and calibrate.

Reliability You Can Count On

Like all Roland DG devices, the XP-640 is built to provide superior performance over the long haul, with minimal maintenance required. Plus, replacing the caps, wipers, wiper cleaner, and flushing sponge around the printheads is a breeze. You can stock those parts in advance and replace them yourself without having to call a service engineer, further reducing downtime.

Specification		XP-640
Printing Method		Piezo ink-jet method
Media	Width	10.2 to 64 in. (259 to 1,625 mm)
	Thickness	Max. 39.3 mil (1.0 mm) with liner
	Roll outer diameter	Max. 9.8 in. (250 mm)
	Roll weight	Max. 99 lb. (45 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing Width (*1)		Max. 63.5 in. (1,615 mm)

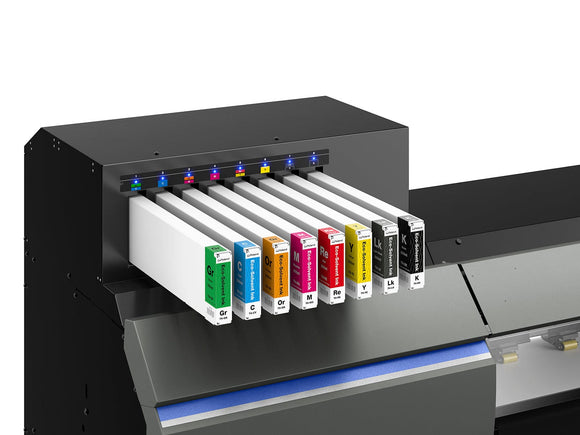

Ink	Type	Eco-Solvent Ink (TH) 500 ml cartridge
Ink	Colors	Eight colors (Cyan, Magenta, Yellow, Black, Light Black, Green, Orange, and Red) Four colors (Cyan, Magenta, Yellow, and Black)
Printing Resolution (dots per inch)		Max. 1,800 dpi
Media Heating System (*2)	Print heater set temperature	86 to 113 °F (30 to 45 °C)
Media Heating System (*2)	Dryer set temperature	86 to 131 °F (30 to 55 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving Function		Automatic sleep feature
Rated Input		100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A
Power Consumption	During Operation	Approx. 1,180 W
Power Consumption	Sleep Mode	Approx. 50 W
Acoustic Noise Level	During Operation	66 dB (A) or less
Acoustic Noise Level	During Standby	53 dB (A) or less
Dimensions (Width x Depth x Height)		113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm)
Weight		417 lb. (189 kg)
Environment	During Operation (*3)	Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80% RH (no condensation)
Environment	Not Operating	Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80% RH (no condensation)
Included Items		Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.

*1 The length of printing is subject to the limitations of the application software.

*2 Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.

*3 Use in an operating environment within the specified range.
