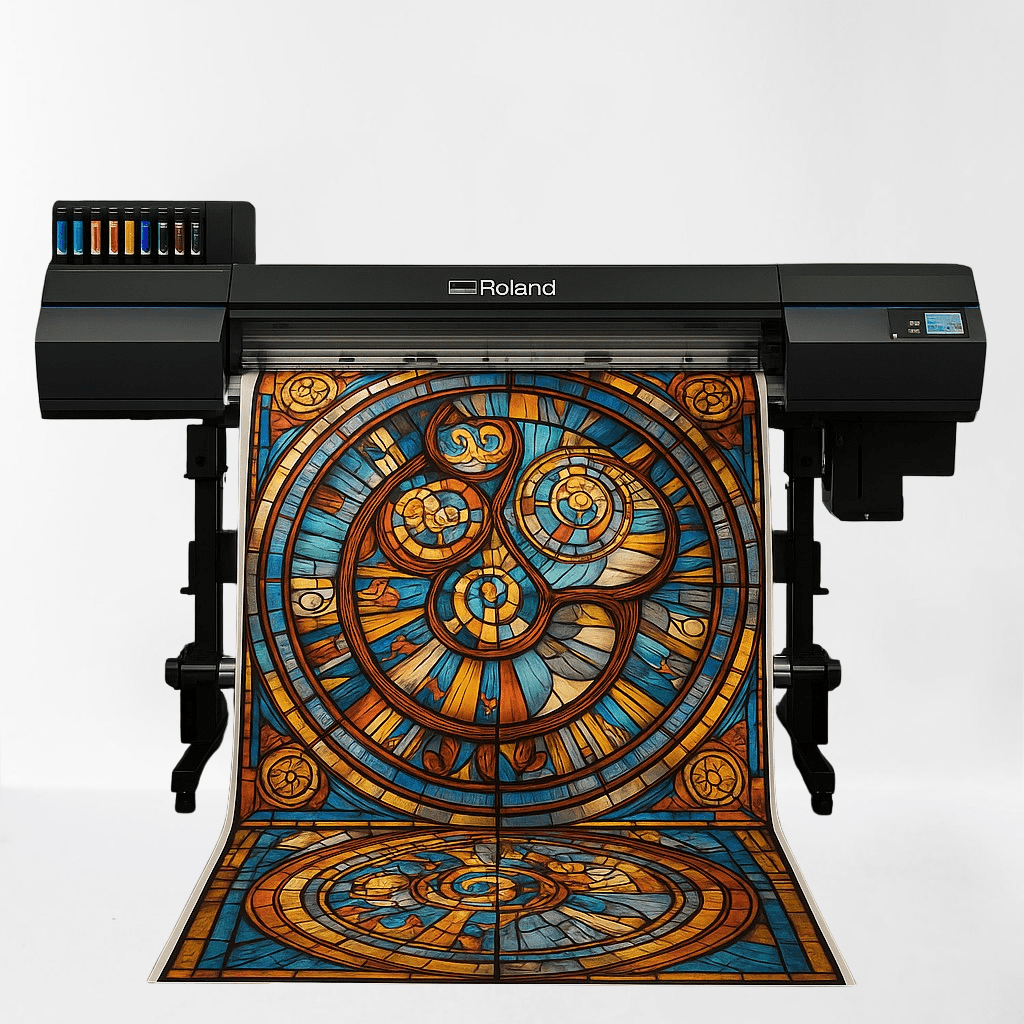

TruVIS XG-640

64" | Eco-Solvent Printer/Cutter

Roland DGA launches the TrueVIS XG-640, a 64" professional eco-solvent printer/cutter built for speed, precision, and profitability. With more than double the productivity of the VG3, the XG-640 empowers busy print shops to deliver flawless results while maximizing return on investment. Its superior output, efficiency, and usability make it the go-to solution for vehicle wraps, decals, signs, floor graphics, and more.

Roland DG’s most productive integrated printer/cutter to date – nearly twice as fast as the VG3-640.
Advanced dual staggered printheads allow for top print speeds of up to 819 sqft/hr.
Exceptional vibrancy with new TR3 eco-solvent inks, available in dual CMYK or expanded gamut 8-color configurations including Orange, Green, and White options.
Enhanced usability with a 7-inch touch panel, automatic media gap adjustment, and other cutting-edge features designed to simplify operations.

Maximizing return on investment

Dual-purpose Performance

The Roland XG-640 is not just a printer—it’s a full-featured print-and-cut powerhouse. By combining wide-format printing and precision contour cutting in one seamlessly integrated device, it transforms how your workspace operates.

Fastest Print/Cut device in Class

The Roland DG TrueVIS XG-640 sets a new benchmark in the large-format eco-solvent printer/cutter category. It outpaces competitors such as the Mimaki JV330 Series and Epson SureColor S80600 with over 2X the output speed of Roland’s own previous-generation VG3-640—and delivers even greater speed advantages compared to other brands.

Roland DG Connect + Versaworks

Smart Software without monthly fees. Monitor your printer’s performance, ink usage, and job history in real time with the Roland DG Connect app. This cloud-based tool gives instant access to important operational data, helping print providers optimize productivity and reduce downtime.

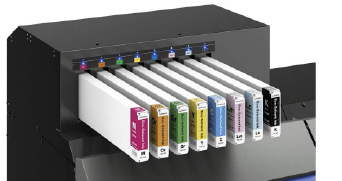

TR3 Ink System

The Roland DG TrueVIS XG-640 excels with the fast-drying, GBL-free TR3 inks and high-opacity White, you’ll maximize uptime and finish jobs faster. Plus, with its ultra-wide color gamut and white
capabilities, the XG-640 outperforms latex and other solvent printers in one winning pass.

Pushing the Limits of Performance.

Unmatched Productivity and Precision Two larger staggered printheads eject finer ink droplets at higher densities for high-resolution output with fewer passes.

Intuitive 7” LCD Touchscreen A user-friendly control panel makes operation simple and efficient.

Print & Cut Precision Industry-leading technology with automated pinch rollers for seamless workflow and maximum productivity.

Versatile Applications Perfect for decals, vehicle wraps, signage, banners, floor and window graphics, backlit displays, wallpaper, posters, and more.

Smart Automation Advanced features like Automatic Media Gap Adjustment, which detects and adjusts media height to avoid head strikes and misprints.

Included VersaWorks 7 RIP Software Advanced color management with Nearest Color Finder and Variation Job functions.

Roland XG-640 Ink Configurations

Eight Color CYMK LC LM OR and GR

Super ULTRA Smooth Transitions

Seven Color CMYK OR GR WH WH

Four Color CMYK CMYK

Optimum Productivity

Roland XG-640 Specifications

Printing Method

Piezo ink-jet method

Media Width

13.2 to 64 in. (335 to 1,625 mm)

Media Thickness

Max. 39.3 mil (1.0 mm) with liner (printing)
Max. 15.7 mil (0.4 mm) with liner / 8.6 mil (0.22 mm) without liner (cutting)

Roll Outer Diameter

9.8 in. (Max. 250 mm)

Roll Weight

Max. 99 lb. (45 kg)

Core Diameter

3 in. (76.2 mm) or 2 in. (50.8 mm)

Printing/Cutting Width

Max. 62.9 in. (1,600 mm)

Ink Type

Eco-Solvent Ink (TR3), 500 ml cartridge (white: 220 ml)

Ink Color Options

- 8-color: C, M, Y, K, Lc, Lm, Orange, Green
- 7-color: C, M, Y, K, Orange, Green, White (x2)
- 4-color: C, M, Y, K

Max Printing Resolution

1,800 dpi

Cutting Speed

0.39 to 11.8 in/s (10 to 300 mm/s)

Blade Force

30 to 500 gf

Blade Type

Roland CAMM-1 series blade

Blade Offset

0.0 to 59 mil (0.000 to 1.500 mm)

Software Resolution (Cutting)

0.98 mil/step (0.025 mm/step)

Media Heating System

Print Heater: 86–113°F (30–45°C)
Dryer: 86–131°F (30–55°C)

Connectivity

Ethernet (100BASE-TX/1000BASE-T, auto-switching)

Power-Saving Function

Automatic sleep feature

Rated Input

100-120 / 220-240 V AC, 50/60 Hz, 8.9 / 4.5 A

Power Consumption

During Operation: Approx. 1,180 W
Sleep Mode: Approx. 50 W

Acoustic Noise Level

Operating: ≤ 66 dB(A)
Standby: ≤ 56 dB(A)

Dimensions (W × D × H)

113.7 × 29.5 × 55.8 in. (2,886 × 748 × 1,415 mm)

Weight

433 lb. (196 kg)

Operating Environment

Temp: 68–89.6°F (20–32°C), Humidity: 35–80% RH (no condensation)

Storage Environment

Temp: 41–104°F (5–40°C), Humidity: 20–80% RH (no condensation)

Included Items

Stand, power cord, media take-up unit, media holders, separating knife blade, maintenance liquid bottle, drain bottle, User's Manual, VersaWorks, Roland DG Connect, etc.

Applications

TrueVIS XG-640 | Eco Solvent Printer | Large Format Printer Cutter

FREE DU3-Dryer Unit ($3,024 Value)

$22,995.00 $25,995.00 Save $3,000
