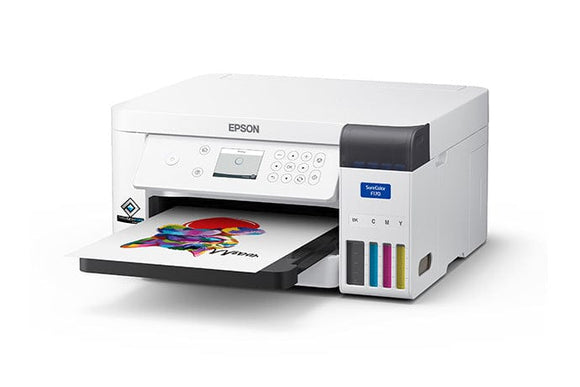

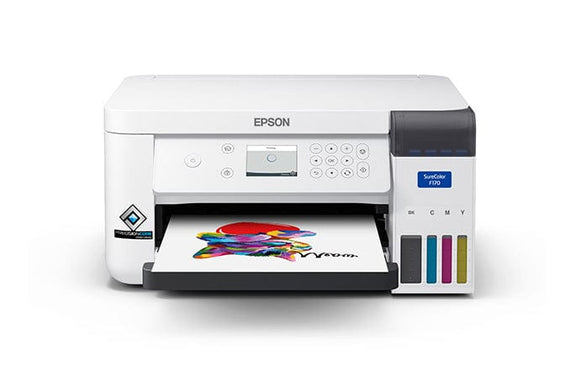

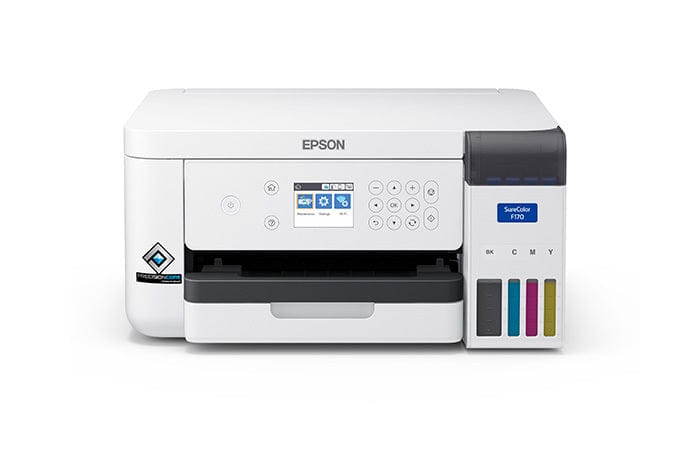

| Epson SureColor F170 Printer Specs |
| Printing Technology: |
PrecisionCore microTFP® printhead |
| Maximum Print Resolution: |
1200 x 600 dpi |
| Minimum Ink Droplet Size: |
Variable-Sized Droplet Technology |
| Nozzle Configuration: |
784 nozzles; 400 nozzles Black, 128 nozzles x Cyan, Magenta, and Yellow |
| Ink |
| Ink Type: |
Epson T49M Ink Bottles |
| Ink Palette: |
4-color (C, M, Y, K) |
| Replacement Ink: |
Black Ink Bottle T49M120
Cyan Ink Bottle T49M220
Magenta Ink Bottle T49M320
Yellow Ink Bottle T49M420 |
| General |
| Operating Systems: |
Windows® 10, Windows 8, 8.1 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit)
Mac® OS X® 10.6 – macOS® 10.15.x6 |
| Temperature: |
Operating: 50 ° to 95 °F (10 ° to 35 °C)
Storage: -4 ° to 104 °F (-20 ° to 40 °C) |
| Humidity: |
Operating: 20 – 80%
Storage: 5 – 85% (no condensation) |
| Sound Level: |
Power: 6.6 B(A)
Pressure: 53 dB(A) |
| Dimensions: |
Printing: 14.8" x 19.8" x 7.4"
Storage: 13.7" x 13.7" x 7.4" |
| Weight: |
10.2 lb |
| Safety Approvals: |
Safety standards UL60950, CSA C22.2 No. 60950 EMI FCC Part 15 subpart B class B, CAN/CSA-CEI/IEC CISPR 22 class B |
| Country of Origin: |
Philippines |
| Warranty: |
Standard 1-year unit exchange with toll-free phone support Monday through Friday |
| Epson Intelligent Ink Cartridges |
| In-box Cartridge Fill Volume: |
Bottle: C, M, Y, K: 140 mL each |
| Retail Cartridge Fill Volume: |
Bottle: C, M, Y, K: 140 mL |
| Ink Cartridge Shelf Life: |
2 years from printed production date or 6 months after opened |
| Printer is designed for use with Epson ink bottles only, not third-party ink bottles or ink.* |
|
| Printable Area and Accuracy |
|
| Maximum Paper Width: |
8.5" |
| Minimum Paper Width: |
Sheet: 3.5" |
| Maximum Printable Length: |
Limited by application, OS and driver/RIP used |
| Sheet Media Handling |
| Sheet Loading: |
Max. Paper Size: 8.5" x 47.2"
Paper Types: Epson DS Multi Use transfer paper
Input Paper Capacity: Up to 150 sheets |
| Left/Right Margins: |
3 mm each (0.24" total) |
| Printer Details |
| Display: |
2.4" color LCD with buttons |
| Interfaces: |
Standard Connectivity
Hi-Speed USB
Wireless (802.11 b/g/n)
Wi-Fi Direct
Ethernet (10/100 Mbps) |
| Power |
| Rated Voltage: |
AC 100 – 240 V Universal (Automatic) |
| Rated Frequency: |
50 – 60 Hz |
| Rated Current: |
0.4 – 0.2 A |
| Power Consumption: |
Approx. 13 W (Operating)
Approx. 4.1 W (Ready)
Approx. 0.7 W (Sleep) |
