Mimaki UJV300DTF-75 25" UV-DTF Printer

Purpose-Built for UV-DTF Transfers
Prints on Curved and Uneven Surfaces
Inline Lamination - No Weeding Needed
Compact Design with One-Touch Operation

$24,995.00 $29,995.00 Save $5,000

Explore financing options

Overview Details Supplies Specs Instructions

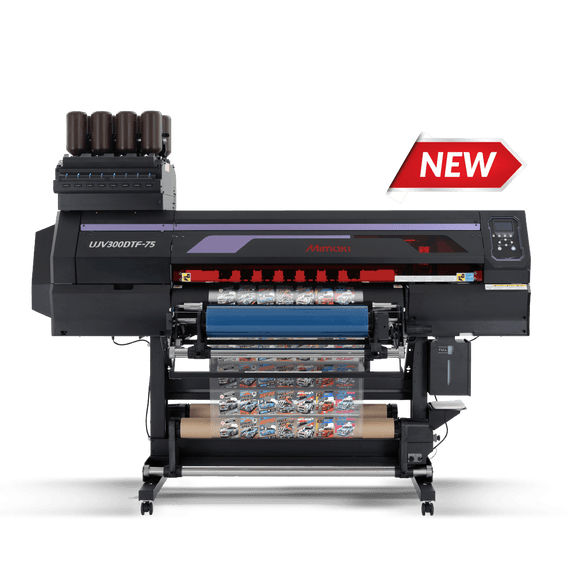

Mimaki UJV300DTF-75

UV-DTF Printer

Meet the Mimaki UJV300DTF-75, your shortcut to creating brilliant UV-DTF transfers on nearly any surface—fast, easy, and incredibly versatile. Designed to simplify your workflow and boost your productivity, it delivers vibrant, durable results instantly, giving you the freedom to take on more jobs and push creative limits.

New All-in-One UV-DTF Solution

Personalize objects of any shape or size
Compact and efficent
Automated inline lamination
No weeding required for faster production
One-touch media loading
Specialized film handling rollers
Next generation UV curable inks

Datasheet Coming Soon

Discover the Difference in DTF Printing

Expand Your Market Instantly
Effortlessly apply vibrant designs onto uneven, curved, or complex-shaped objects—opening entirely new product opportunities.

No More Manual Weeding
Transfers print directly onto film, eliminating tedious weeding and boosting productivity dramatically.

Precision on Any Surface
Achieve detailed prints and crisp small text—even on irregular surfaces that flatbed printers can't handle.

Advanced Film Feeding System
Mimaki’s specially engineered pinch roller ensures stable, precise film feeding for flawless transfers.

Eco-Friendly UV Ink
Next-generation ink is GREENGUARD Gold certified, ensuring safety and compliance with strict environmental standards.

Automatic Take-Up System
Conveniently winds up release paper at exact print speed, enabling smoother unattended printing.

Dual Ink System for Durability & Flexibility
Combines Mimaki's ELH-100 (hard) and ELS-170 (soft) inks, ensuring vivid, durable, and flexible results.

"Simple Create" Software Included
Intuitive design software provided standard, making professional-quality label and sticker creation easy.

Quick Specifications

Ink Configuration	CMYK + WWClCl
Ink Type	ELH-100 (W,Cl) / ELS-170 (C,M,Y,K)
Max Printable Width	25.2 in.
Ink Circulation System	Available only for white ink
Print Resolution	300dpi, 600dpi, 900dpi, 1200dpi
Included Software	Mimaki RasterLink 7 RIP Software, Simple Create Design Software

Category	Details
Print Head	On‑demand piezo head
Max. Print Resolution	1,200 dpi
Ink Type / Color	UV curable flexible ink ELS‑170 (C, M, Y, K) UV curable hard ink ELH‑100 (White, Clear)
Ink Capacity	1L bottle Circulation system for white ink channel
Max. Print Width	640 mm (25.2 in)
Media Max. Width	650 mm (25.6 in)
Max. Roll Diameter	φ250 mm (9.8 in) or less
Max. Roll Weight	45 kg (99.2 lb) or less
Interface	Ethernet 1000BASE‑T / USB2.0 Hi‑speed
Power Specifications	Single‑phase AC100‑120 / 200‑240V±10%, 50/60Hz±1Hz × 1
Power Consumption	100V: 1,440W or less 200V: 1,920W or less
Certifications	VCCI class A, FCC class A, IEC 62368‑1 ETL, CE (EMC, Low voltage, Machinery directive, RoHS), CB, REACH, Energy Star, RCM, KC
Dimensions (W×D×H)	2,090 × 930 × 1,475 mm (82.3 × 36.6 × 58.1 in)
Weight	180 kg (396.8 lb)
