Mimaki Sublimation Printer Mimaki TS500P-3200 Dye Sublimation Printer

Mimaki TS500P-3200 Dye Sublimation Printer

In Stock and Ready to Ship!

  • Wide 129.9-inch configuration for versatility
  • Vibrant water-based inks for exceptional quality
  • High-speed printing with staggered printheads
  • Compatible with thin transfer paper
  • Maximum productivity of 1,937 SqFt/Hr

$159,995.00

Overview Details Supplies Specs Instructions

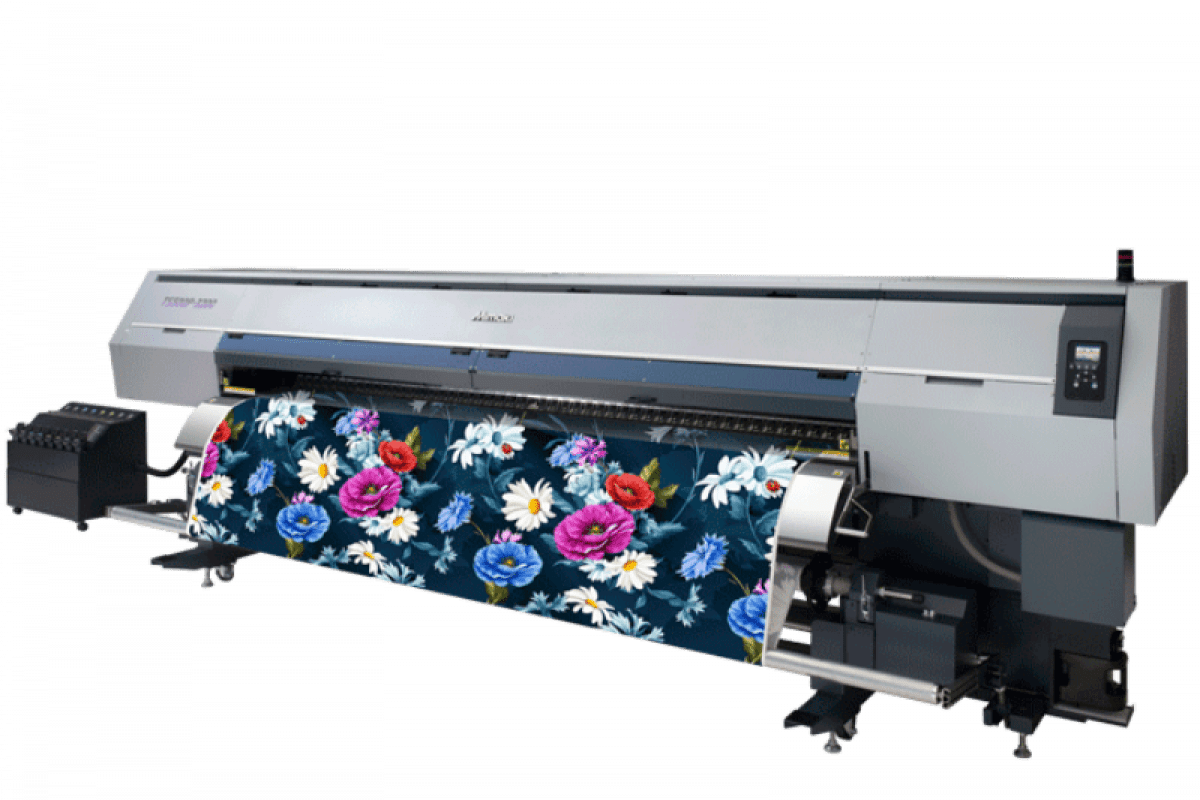

The Mimaki TS500P-3200 is a 129.9" (3.2 m) industrial dye-sublimation printer built to drive high-volume textile production with speed and confidence. Powered by 12 staggered printheads, it delivers bold color, smooth gradients, and output speeds up to 1,937 ft²/hr. Ideal for soft signage, home décor, and hospitality fabrics, the TS500P-3200 combines advanced media handling with seamless TxLink3 and RasterLink6 workflow integration to help businesses scale faster and produce more.

Mimaki TS500P-3200

The Mimaki TS500P-3200 is a 129.9" (3.2 m) industrial dye-sublimation printer built to drive high-volume textile production with speed and confidence. Powered by 12 staggered printheads, it delivers bold color, smooth gradients, and output speeds up to 1,937 ft²/hr. Ideal for soft signage, home décor, and hospitality fabrics, the TS500P-3200 combines advanced media handling with seamless TxLink3 and RasterLink6 workflow integration to help businesses scale faster and produce more.


Mimaki TS500P-3200
Download Datasheet

Experience Unrivaled Versatility and Performance:

  • Delve into extra-wide textile applications including soft signage, home furnishing, and hospitality fabrics
  • Enjoy a wide 129.9-inch (3.2 m) configuration for unparalleled flexibility

Discover Innovation at Every Turn:

  • Benefit from vibrant water-based inks and variable dot printing for exceptional quality
  • Achieve high-speed printing with staggered printheads and a cockling reduction transfer mechanism

Maximize Efficiency with Advanced Features:

  • Work seamlessly with the thinnest transfer paper thanks to specialized engineering
  • Ensure stability and quality with tension adjustments via front and rear tension bars
  • Maintain superior quality, even at higher printhead gap settings, with rapid eject ink printheads

Explore the Power of Cutting-Edge Technology:

  • Boost productivity with a maximum output of 1,937 SqFt/Hr
  • Harness the power of 12 printheads in a staggered configuration for optimal performance
  • Experience enhanced media feeding with four independent post heaters and auto tension bars

Stay Ahead of the Curve:

  • Prevent nozzle failures with the standard degassing module
  • Seamlessly integrate with TxLink3 textile RIP software for enhanced functionality
  • Access RasterLink6 RIP software included with your purchase

Printhead⁢

Twelve on-demand piezo heads in a staggered array

Print resolution

X: 360 dpi, 540 dpi, 720 dpi, 1080 dpi
Y: 360 dpi, 540 dpi, 720 dpi

Print speed (4 color mode)

up to 1937.504 SqFt/Hr (180 m2/)

Maximum Print Area 

129.5″ (3290 mm)

Maximum media width

129.9″ (3300 mm)

Maximum Media Thickness

up to 0.04″ (1 mm)

Maximum Media Weight

286.9 lbs. (130.0 kg)

Ink Type

U.S. & Canada- Sb310 | Mexico, Central & South America- Sb310

Interface 

Ethernet 1000BASE-T, USB2.0 Hi-speed

Power Supply⁢

Single-phase AC200 – 240V ±10%, 50/60Hz ±1Hz

Power Consumption

AC200V: 6,900W or less

Operational Environment

Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

221.3″ x 70.9″ x 71.7″ (562.1 x 180.1 x 182.1 cm)

Weight

Main unit: 3,306.9 lbs. (1,500 kg)
Ink supply unit: 66.1 lbs. (30 kg)

Certifications

VCCI class A, FCC class A, ETL UL 60950-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH

Instructions for the Mimaki TS500P-3200 Dye Sublimation Printer

No additional instructions found for this product.
