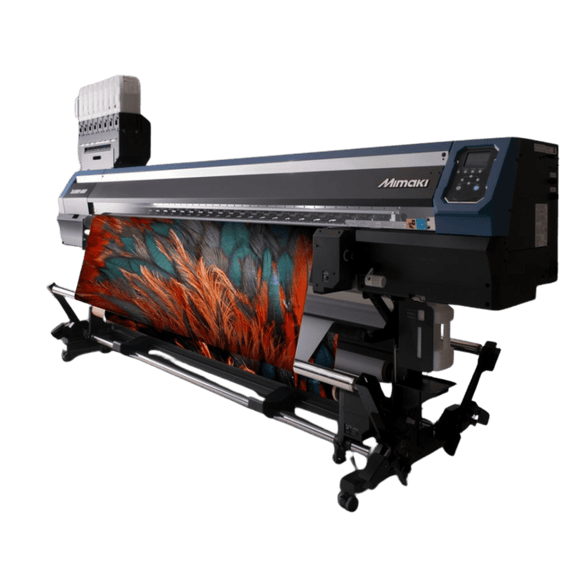

Mimaki Tx300P-1800 MkII | 75" Dye-Sublimation Printer

Dual Ink Configurations: allows you to use multiple inks in one system for diverse applications.
Mimaki Advanced Pass System: reduces banding, ensuring smoother prints and vibrant colors across all applications
Diverse Applications: ideal for fashion apparel, soft signage, interior fabrics, sportswear, home décor, flags, and more.
Maintenance Features: keep print heads in optimal condition, reducing maintenance time and ensuring high-quality prints

$26,245.00 Save $-26,245

Overview Details Supplies Specs Instructions

Engineered with versatility at its core, the Mimaki TX300P-1800 MkII seamlessly supports both direct-to-textile and sublimation transfer printing. Its interchangeable print platens and three distinct dual ink combinations provide unmatched flexibility, making it the ideal solution for a wide range of applications—all within a single, powerful system.

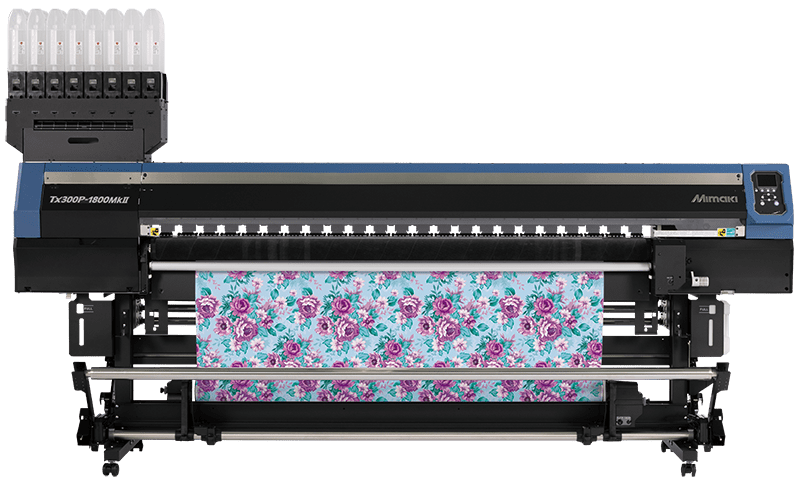

TX300P-1800 MkII

Hybrid Textile Printer

Engineered with versatility at its core, the Mimaki TX300P-1800 MkII seamlessly supports both direct-to-textile and sublimation transfer printing. Its interchangeable print platens and three distinct dual ink combinations provide unmatched flexibility, making it the ideal solution for a wide range of applications—all within a single, powerful system.

Download Datasheet

Key Features:

Hybrid Ink Capability Load two types of inks simultaneously for seamless printing on both paper and textiles.

Versatile Applications Supports dye-sublimation and direct-to-textile printing, ideal for apparel, signage and more.

Enhanced Print Quality Four in-line printheads deliver consistent quality on diverse media, handling materials up to 7mm thick.

Mimaki Core Technology Boost productivity with features like nozzle checks, bulk ink, automated cleaning, and MAPS4 for sharp, consistent prints.

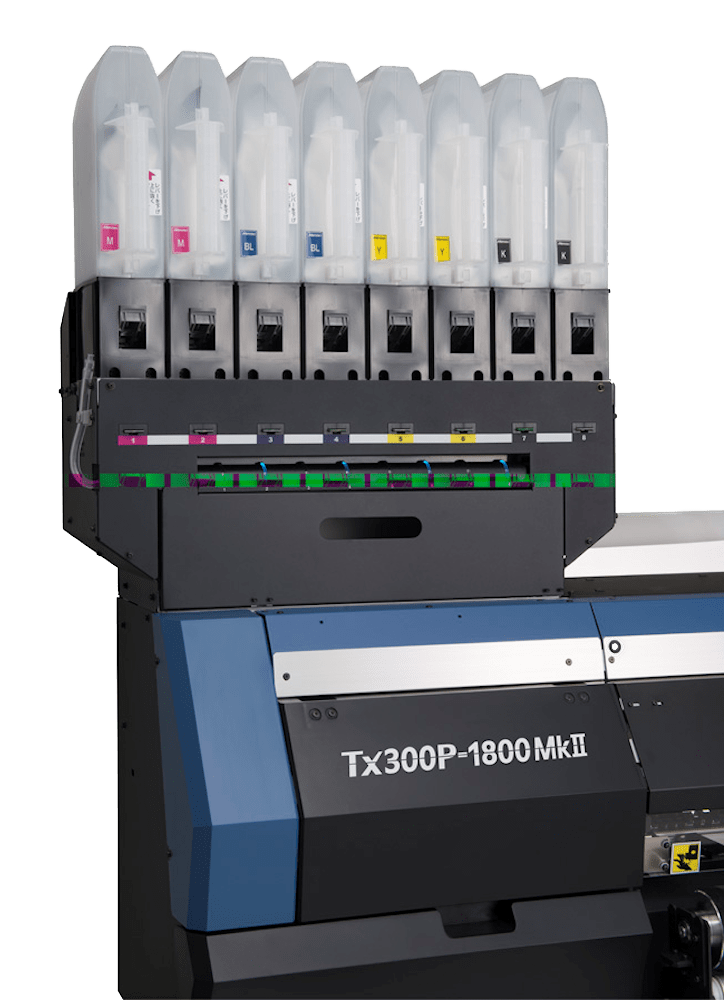

Versatile Ink Options:

One-Way Ink Set

This option allows you to load a single ink type for direct printing, ideal for a wide range of applications like apparel, home fabrics, and soft signage. Choose from five ink types—sublimation, dispersant, pigment, reactive, and acid to suit your material and purpose.

Hybrid Ink Set

This option lets you load two types of inks simultaneously, allowing for seamless printing on both paper and textiles. It provides versatility for sports apparel, fashion, and soft signage applications, and can be customized to your media type by simply changing the platen.

Watch the TX300P-1800 MkII in Action

Model		TX300P-1800 MkII (Fabrics Media)	TX300P-1800 MkII (Transfer Paper)
Print head	Method	Drop-on-demand piezoelectric print heads
	Specification	4-Head Inline
	Drop size	From 6pl to 24pl
Printing mode (scan x feed)		540 x 360 dpi / 540 x 540 dpi / 540 x 720 dpi / 720 x 720 dpi / 720 x 1080 dpi / 720 x 1440 dpi
Usable inks		Sublimation dye ink: Sb420, Textile pigment ink: TP400, Disperse dye ink: Dd400, Acid-dye ink: Ac400, Reactive-dye ink: Rc400, Rc500, Sublimation dye Transfer ink: Sb411*
Usable media		Polyester, cotton, silk etc. (Except the expansion and contraction media)	Transfer paper
Max. printing width		1,920mm (75.6 in)	1,940mm (76.4 in)

*Sb411 can only be used in hybrid mode

Model			TX300P-1800 / TX300P-1800 MkII (Fabrics media)	TX300P-1800 MkII (transfer paper)
Roll Media size	Maximum		1,920mm (75.6 in)	1,950mm (76.8 in)
	Minimum		210mm (8.3 in)	210mm (8.3 in)
	Thickness		1.0mm or less (0.039 in or less)
	Printing surface		Regardless of faces in and out	Side facing outward
	Feed	Roll outside diameter	Φ 250mm or less (Φ 9.8 in or less)
		Roll weight	40kg or less (88.2 lb or less)
		Roll inside diameter	2 or 3 inches
	Take-up	Roll outside diameter	Φ 250mm or less (Φ 9.8 in or less) Media edge Guide: Φ200mm (Φ7.87 in) or less.
		Roll weight	40kg or less (88.2 lb or less)
		Roll inside diameter	2 or 3 inches
Distance accuracy	Absolute accuracy		Whichever the larger one of ±0.3mm or ±0.3% of the designated (whichever the larger one of ±0.01 in or ±0.3% of the designated)
Distance accuracy	Reproducibility		Whichever the larger one of ±0.2mm or ±0.1% of the designated (whichever the larger one of ±0.008 in or ±0.1% of the designated)
Perpendicularity			±0.5mm (±0.02 in)
Media skew			5mm or less / 10m (0.2 in or less / 32.8 ft)
Head height adjustment			2mm to 7mm, can be freely adjusted manually (0.08 in to 0.28 in, can be freely adjusted manually)
Waste ink tank			Bottle type: 2,000 cc (2 liters) x 2
Interface	Print data transmission function		USB 2.0, Ethernet 1000BASE-T
Noise	during standby		Standby: 58 dB or less; during printing: 65 db or less
Safety Standard			VCCI-Class A, FCC-Class A, UL 60950, CE Marking (EMC, Low Voltage Directive, Machinery Directive, RoHS Directive), CB Report, REACH, Energy Star, RCM, and EAC
Power			AC 100 -120 V/ 200 -240 V 12 A/8 A 50/60 Hz
Power consumption			1,440 W (AC 100 -120 V), 1,920 W (AC 200 -240 V)
