Mimaki CF22-1225 Wide Format Cutting Plotter

A Reliable Cutting Performance

Based on our proven CF2 platform, this flatbed large format cutter features a work area that can accommodate oversized media. It also allows a full 4-foot by 8-foot maximum cut size, so you can easily move materials directly from a standard flatbed printer. The CF22-1225 works equally well as a vinyl cutter plotter as it does for materials such as corrugated board, vinyl chloride (for clear package printing), corrugated plastic, reflecting sheets, and industrial sheet rubber.

Key Features:

• 4’ x 8’ cutting area with reciprocating, tangential and eccentric cutting functions; creasing function
• Cut a variety of materials up to 20 mm thick
• Multiple cutting head and tool holder configurations

Perfect companion to the JFX Series UV-LED flatbed printers

FineCut9 software included

Our Core Technologies:

• Continuous Mark Detect
• Half Cut

Applications:

• Sign & Display
• POP
• POS Display

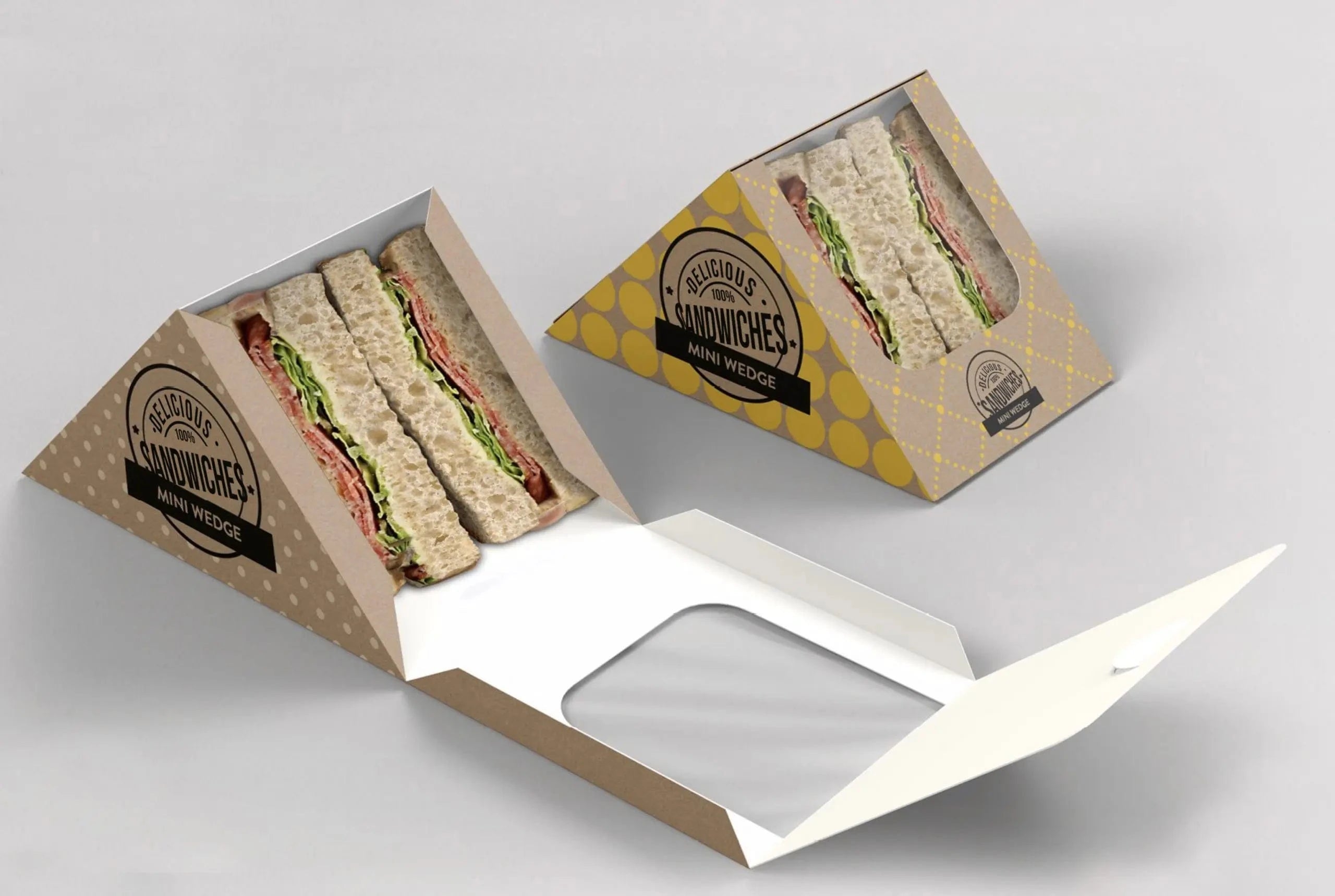

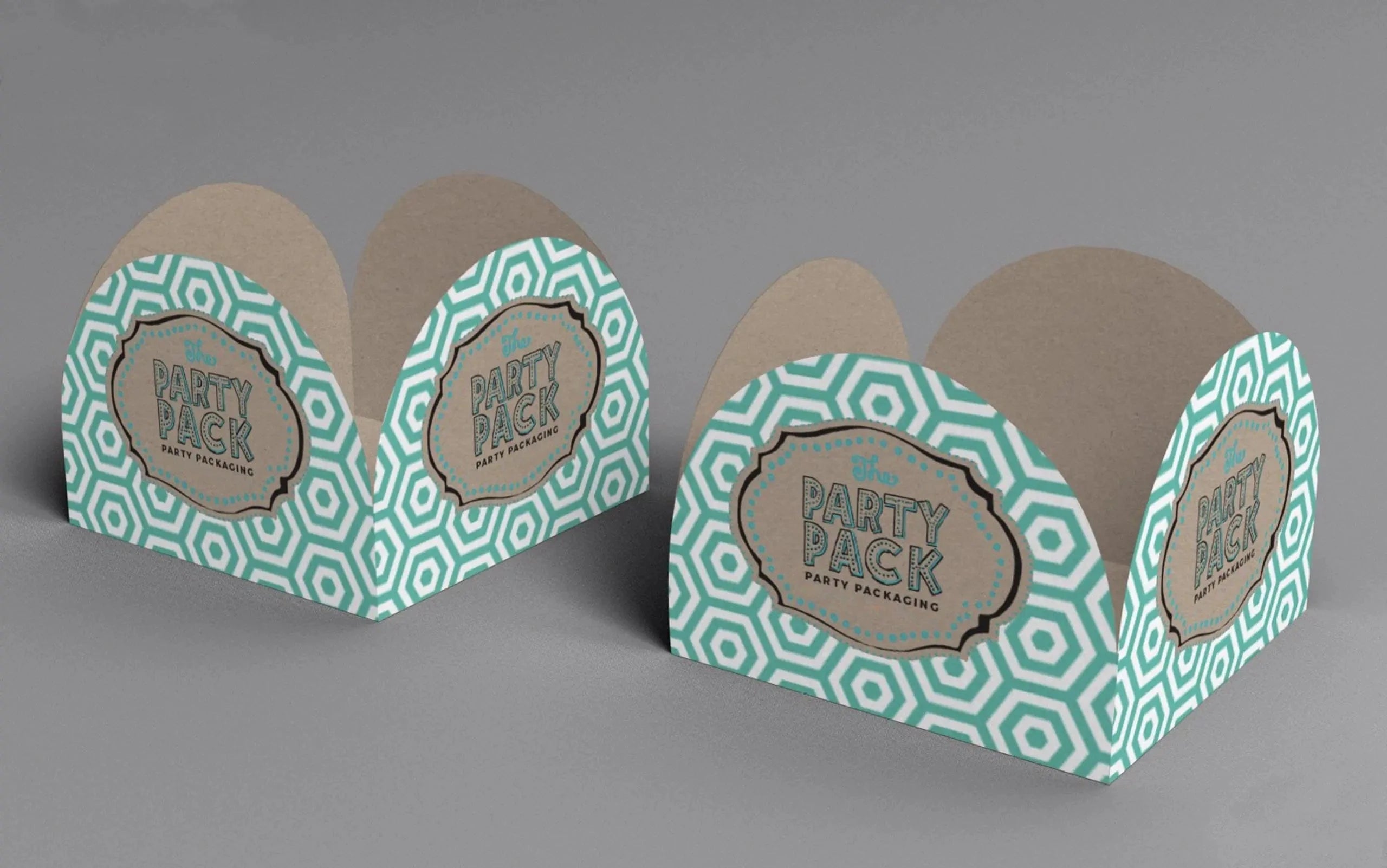

• Package
• Industrial Cut

Specifications:

• Effective Plotting Area: 98.4″ x 48.0″ (2500 x 1220 mm)
• Maximum Media Width: 480.3″ (1220 mm)
• Maximum Media Thickness: T / TD: 1″ / RT / RC: .8″ (T / TD: 25 mm / RT / RC: 20 mm)
• Maximum Cut Speed: 21.7″ (55 cm)
• Maximum Cut Pressure (Metric grams): Tangential: 1500g | High-pressure Tangential: 5000g | Line marking gauge roller: 5000g
• Cutter Types: Pen/swivel, Tangential, High-pressure Tangential, Reciprocating
• Interface: USB2.0, RS-232C, Ethernet
• Power Supply: Single-phase (AC 100–120V / AC 220–240V±10%) 50/60Hz±1Hz
• Power Consumption: 300 w
• Operational Environment: Operational Temperature 40° – 104° F, Operational Humidity: 35–75 % RH (Non condensing)
• Dimensions (W × D × H): 124.4″ x 76″ x 47.2″ (316 x 193 x 119.9 cm)
• Weight: 507.1 lbs. (230 kg)
• Certifications: VCCI-class A, FCC-class A, UL60950-1, CB Report (EN60950), CE Marking (Machinery), RoHS, REACH
