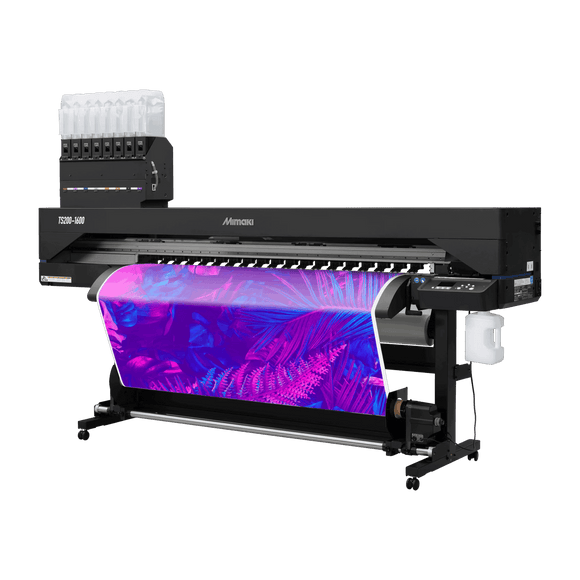

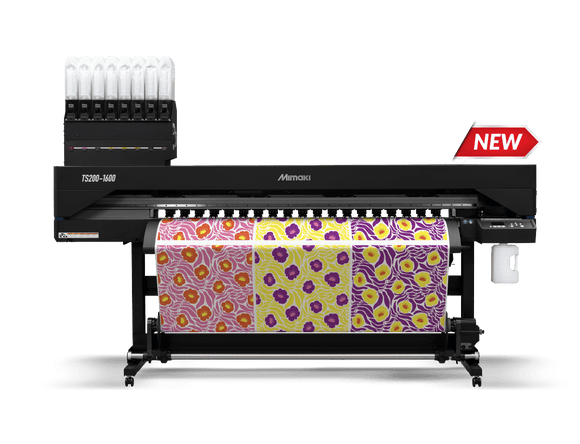

Mimaki TS200-1600 64" Dye Sublimation Transfer Printer

64-inch sublimation production: Prints up to 63.3 inches wide for apparel, textiles, sportswear, soft signage, and interior fabric applications.
Flexible 4-color or 8-color setup: Choose standard Bl, M, Y, K production or expand with violet, orange, fluorescent pink, and fluorescent yellow for added vibrancy.
Fast production speeds: Reaches up to 753.5 sq ft/hr in 4-color mode while maintaining strong saturation and detail.
Smarter workflow tools: Includes Mimaki Remote Access, PICT cloud insights, in-RIP ink saving, automatic nozzle replacement, and sensor-based media setup.

$10,994.00 Save $-10,994

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Overview Details Supplies Specs Instructions

The Mimaki TS200-1600 is a 64-inch dye sublimation transfer printer built for apparel, textiles, sportswear, soft signage, and interior fabric applications. Designed around Mimaki’s 330-series print engine, the TS200-1600 combines vivid color output, production-ready speed, and easy daily operation for shops looking to grow their sublimation workflow.

With support for both a 4-color dual-reservoir setup and an expanded 8-color configuration, the TS200-1600 gives print providers the flexibility to produce everyday sublimation work or push into brighter, more expressive color output using violet, orange, fluorescent pink, and fluorescent yellow inks. The 8-color setup offers a larger color gamut for applications where vibrancy, detail, and visual impact matter most.

The TS200-1600 reaches print speeds up to 753.5 sq ft/hr in 4-color mode while maintaining strong color density and fine image detail. Features like Mimaki Remote Access, PICT cloud-based device insights, automatic nozzle replacement, sensor-based media setup, and in-RIP ink saving tools help reduce downtime and simplify production management.

For growing apparel decorators, textile shops, teamwear producers, and soft signage businesses, the Mimaki TS200-1600 offers a practical path into professional wide-format sublimation production with the color, speed, and workflow tools needed for daily use.

Introducing the Mimaki TS200-1600

The Mimaki TS200-1600 is a 64-inch dye sublimation transfer printer built for high-quality textile, apparel, sportswear, and soft signage production. With speeds up to 753.5 sq ft/hr, 4-color or 8-color ink flexibility, remote access tools, and Mimaki’s 330-series imaging technology, it gives growing shops a powerful and approachable wide-format sublimation solution.

Ink is not included with the printer. The TS200-1600 is designed for Mimaki Sb411 2L sublimation ink packs. The included Eco Pack components refer to the ink bag housing/containers that stay with the machine, while the ink bags are sold separately.

Download Brochure

Why Choose The Mimaki TS200-1600

Why Choose the TS200-1600

Next-Level Sublimation Without Overcomplicating Production

The Mimaki TS200-1600 gives growing print shops a balanced mix of speed, color, usability, and production support. It is built for shops that need professional sublimation output without stepping into an overly complicated workflow.

Expanded color potential: 8-color configuration includes violet, orange, fluorescent pink, and fluorescent yellow.
Production speed: Prints up to 753.5 sq ft/hr in 4-color mode.
High-density output: Designed for vivid color, fine detail, and solid coverage.
Remote visibility: Mimaki Remote Access and PICT help monitor status, metrics, and ink use.
Lower running cost tools: In-RIP ink saving features can reduce ink usage depending on selected level.

Sublimation Applications

Built for Apparel, Textiles, Sportswear & Soft Signage

The Mimaki TS200-1600 is designed for production-focused sublimation transfer printing across a wide range of polyester-based products, fabrics, and decorated goods.

Sportswear & Team Apparel

Produce jerseys, performance wear, uniforms, and team store apparel with vivid sublimation color.

Fashion & Apparel

Create custom shirts, polyester garments, socks, accessories, and fabric-based merchandise.

Soft Signage

Print flags, banners, tapestries, fabric graphics, and display materials for retail or events.

Interior Fabrics

Support interior décor applications like curtains, roll screens, cushions, and textile panels.

Promotional Products

Use sublimation transfers for mugs, coasters, handkerchiefs, totes, pet goods, and gift items.

High-Impact Color Work

The 8-color ink option adds violet, orange, fluorescent pink, and fluorescent yellow for more visual punch.

Production Shops

Remote access, cloud insights, and maintenance-friendly features help simplify daily operation.

Growing Sublimation Businesses

A practical wide-format platform for shops expanding from smaller sublimation setups into roll production.

Sublimate Anything

Print Applications

Apparel and Fashion: Sports jerseys, leggings, swimwear, and high-fashion textiles.
Home Decor: Curtains, cushions, blankets, and fabric wall art.
Soft Signage: Banners, flags, backdrops, and trade show displays.
Sports Gear: Custom-printed gear bags, yoga mats, and accessories.
Photo Printing: High-quality photo panels and personalized photo gifts.
Promotional Items: Mugs, coasters, keychains, and mousepads.
Interior Design: Upholstery fabrics, wall coverings, and furniture fabrics.
Automotive Upholstery: Seat covers and interior detailing.
Corporate and Team Branding: Branded apparel and accessories.

GPI Support: Printer Expertise You Can Trust

When you source your printer through Garment Printer Ink, you get access to our expert dedicated support team, providing installation, training, and troubleshooting to ensure your equipment performs at its best. We're here to help every step of the way! With our comprehensive support, you can maximize your printer's potential and minimize downtime.

Mimaki TS200-1600 Specs

Technical Specifications

Mimaki TS200-1600 Specifications

Review the key production, media, ink, power, and operating specifications for the Mimaki TS200-1600 dye sublimation transfer printer.

Printhead	Single, on-demand, piezo print head
Print Resolution	Y: 300, 600, 900 dpi \| X: 600 dpi
Print Speed	Up to 753.5 sq ft/hr in 4-color mode
Ink Type / Color	4-color: Bl, M, Y, K 8-color: Bl, M, Y, K, Vi, Or, Fy, Fp
Maximum Print Width	63.3 in. / 1610 mm
Maximum Media Width	63.7 in. / 1620 mm
Maximum Media Thickness	0.039 in. / 1.0 mm
Roll Weight	55.1 lb. / 25.0 kg standard 99.2 lb. / 45.0 kg with foot leveling kit, Opt-J0502
Ink Package Size	2L ink pack
Interface	Ethernet 1000BASE-T recommended, USB2.0 Hi-Speed
Power Supply	AC100 to 120V / 200 to 240V ±10%, 3A, 50/60Hz ±1Hz
Power Consumption	Max. 250W or less
Operating Environment	Temperature: 68˚ to 86˚ F / 20˚ to 30˚ C Humidity: 35% to 65%
Dimensions	109 in. W x 29.4 in. D x 63.8 in. H / 2770 mm x 748 mm x 1623 mm
Weight	341.7 lb. / 155.0 kg uncrated
Certifications	VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking, CB, Energy Star, RCM, KC, UKCA

Know before you buy

Before You Buy

Plan Your Sublimation Setup Before the Printer Arrives

The Mimaki TS200-1600 is a 64-inch dye sublimation transfer printer built for textile, apparel, sportswear, soft signage, and interior fabric production. Before purchasing, make sure your shop is ready for the complete sublimation workflow, including transfer paper, sublimation ink, heat transfer equipment, workspace, power, ventilation, and production supplies.

What’s Included

Mimaki TS200-1600 64-inch sublimation transfer printer
Single on-demand piezo printhead system
Selectable software workflow with RasterLink7 or TxLink5 Lite depending on your production needs
Mimaki Remote Access support for operation and status checks over local Wi-Fi
PICT cloud-based device insights for monitoring printer status, metrics, and ink consumption
Automatic nozzle replacement and sensor-based media setup features

What’s Not Included

Heat press, calendar press, or roll-to-roll heat transfer system
Sublimation transfer paper
Mimaki Sb411 2L sublimation ink packs
Blank apparel, polyester fabric, rigid sublimation blanks, or finished goods
Computer, network setup, or shop workstation unless otherwise quoted
Electrical work, ventilation changes, or shop modifications
Delivery, installation, training, or setup services unless included in your GPI quote
Optional accessories such as the foot leveling kit for heavier roll support

Shop Requirements to Confirm

Allow enough floor space for a machine that measures approximately 109 in. W x 29.4 in. D x 63.8 in. H
Confirm a clean operating environment between 68°F and 86°F with 35% to 65% humidity
Confirm power availability for AC100 to 120V or AC200 to 240V, 3A, 50/60Hz
Plan for a stable Ethernet connection, which is recommended over USB for production use
Make sure your shop has room for media loading, take-up, printed transfer handling, and heat transfer equipment
Confirm your full workflow, including print, dry, press, finish, pack, and ship

Ink & Color Configuration

The TS200-1600 uses Mimaki Sb411 dye sublimation ink in 2L ink packs. It can be configured as a standard 4-color setup or an expanded 8-color setup for more vibrant output.

4-color setup: Blue, Magenta, Yellow, Black
8-color setup: Blue, Magenta, Yellow, Black, Violet, Orange, Fluorescent Pink, Fluorescent Yellow
The 8-color configuration is best for shops looking for brighter apparel, sportswear, fashion, and high-impact textile graphics
For best performance, Mimaki recommends using original Mimaki inks

Production Notes

Maximum print width is 63.3 inches with media support up to 63.7 inches wide
Print speeds can reach up to 753.5 sq ft/hr in 4-color mode depending on production settings
Actual throughput depends on RIP settings, file size, resolution, ink coverage, network speed, and shop workflow
In-RIP ink saving tools can help reduce ink usage depending on the selected print level
Automatic nozzle replacement helps keep production moving if nozzle issues occur

Best Fit Customers

Apparel decorators expanding into roll-fed sublimation production
Sportswear and team uniform producers
Soft signage and fabric graphics shops
Interior textile and décor print providers
Print shops that need a 64-inch sublimation printer with strong color, speed, and production monitoring tools

Download the Brochure & Spec Sheet

Review the official product literature before purchasing. The brochure provides an overview of the TS200-1600’s production features, software options, color capabilities, and workflow tools. The spec sheet includes machine dimensions, ink configuration, power requirements, operating environment, and warranty details.

View Brochure View Spec Sheet

Need help planning the full setup? Contact GPI Supplies before ordering if you need help confirming the right ink configuration, compatible transfer paper, heat press or calendar requirements, installation options, shop space, or production workflow for your business.
