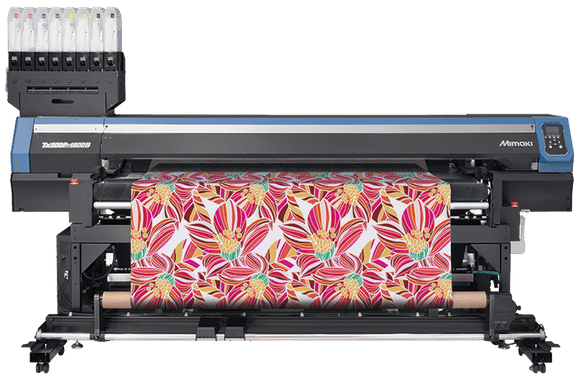

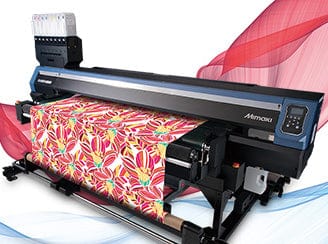

Mimaki Tx300P-1800B Sublimation Printer

In Stock and Ready to Ship!

  • Sticky Belt Technology: Stable feeding for knits and delicate fabrics.
  • High Head Gap Setting: Direct printing on various textiles.
  • Five Ink Types: Meet diverse application needs.
  • Dual Ink Delivery System: Enhanced flexibility with two ink types.
  • Stable Feeding: Consistent performance with stretchy fabrics.
  • Includes TxLink3 and RasterLink6 Software: Seamless printing experience.

$83,953.00

Earn [points_amount] when you buy this item.

Introducing the TX300P-1800B: Precision in Textile Printing

Embark on a new era of textile printing precision with the TX300P-1800B. This state-of-the-art printer is engineered to deliver flawless results, ensuring every print is a masterpiece. Here's why it's a game-changer:

  • Sticky Belt Technology: The sticky belt ensures stable feeding of knits and delicate fabrics, guaranteeing exceptional print quality.

  • High Head Gap Setting: Print directly onto thick, thin, woven, or raised fiber textiles with ease, thanks to the high head gap setting, offering unparalleled versatility.

  • Five Ink Types: With textile pigment, dye-sublimation, disperse, reactive, and acid inks available, meet a diverse range of application needs with vibrant and long-lasting results.

  • Dual Ink Delivery System: Load both dye-sublimation and textile pigment ink for enhanced flexibility and creative possibilities.

  • Stable Feeding: The sticky belt drive ensures stable feeding of stretchy and thin fabrics, ensuring consistent and reliable printing performance.

  • Includes TxLink3 and RasterLink6 Software: With TxLink3 textile RIP software and RasterLink6 included, enjoy a seamless printing experience from start to finish.

Printhead

Four in-line on-demand piezo heads

Print Resolutions

360 dpi, 540 dpi, 720 dpi, 1,080 dpi, 1,440 dpi

Print speed (4 color mode)

Tx300P-1800B: up to 581.251 SqFt/Hr (54 SqM/Hr)

Maximum Print Area­

Tx300P-1800B: 74″ (1880 mm)

Maximum media width⁡

Tx300P-1800B: 74.8″ (1900 mm)

Maximum media thickness⁣

up to 0.04″ (1 mm)

Maximum media weight

88.2 lbs. (40.0 kg)

Ink Type

U.S. & Canada- Sb420, Ac400, Rc400, Rc500, TP400, DD400 | Mexico, Central & South America- Sb420, Ac400, Rc400, Rc500, TP400, DD400

Interface

Ethernet 1000BASE-T, USB2.0 Hi-speed

Power Supply 

Tx300P-1800B: Single-phase AC100-120V/AC200-240V +/- 10% 50/60Hz +/-1Hz

Power Consumption

AC100V: 1.44kW or less x2 | AC200V: 1.92kW or less x2

Operational Environment

Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

Tx300P-1800B: 125.3″ x 75.2″ x 72.5″ (318.3 x 191 x 184.2 cm)

Weight

Tx300P-1800B: 1382.3 lbs. (627 kg)

Certifications

Tx300P-1800B: “VCCI class A, FCC class A, ETL UL 60950-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, and RCM”



Instructions for the Mimaki Tx300P-1800B Sublimation Printer

No additional instructions found for this product.
