Automatic Powdering
Apply hot-melt powder more consistently while reducing the hands-on work required for each printed transfer.

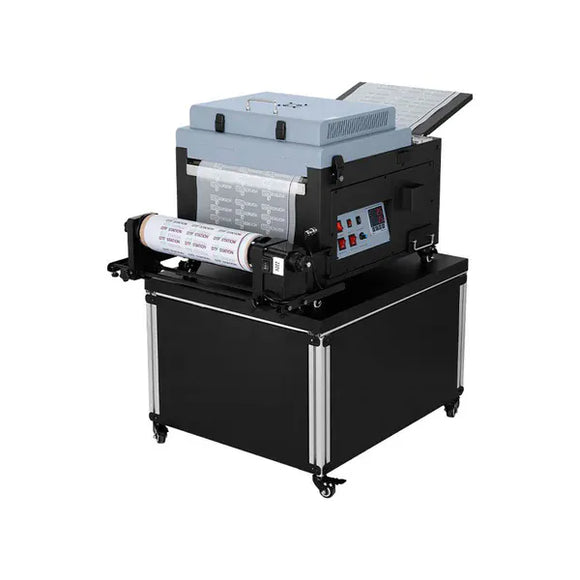

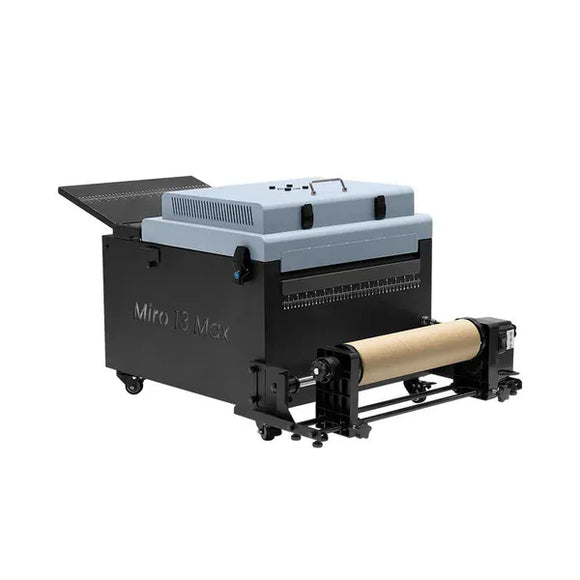

Automate DTF powdering, curing, film collection, and fume filtration with the compact Miro 13 Max. Designed for A3 and A4 DTF production, it supports films up to 13.78 inches wide and operates on 110V power for easier integration into small and growing print shops.
Automate Your A3 DTF Finishing Workflow
Powder, cure, collect, and filter in one compact system built for growing DTF production.
Move Beyond Manual Powdering and Curing
Manual powder application and curing can limit production as order volume grows. The Miro 13 Max brings powdering, curing, air purification, and film take-up together in one compact system designed for A3 and A4 DTF workflows.
Printed film feeds into the machine, receives hot-melt powder, passes through the controlled heating area, and is collected by the powered take-up system. The result is a more organized workflow with less manual handling between production steps.
Controlled Curing
Bottom and curved heating platens support even heat exposure and smooth film movement through the machine.

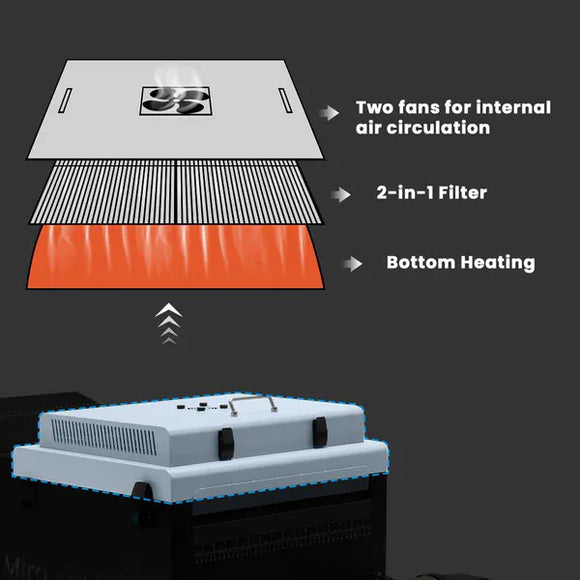

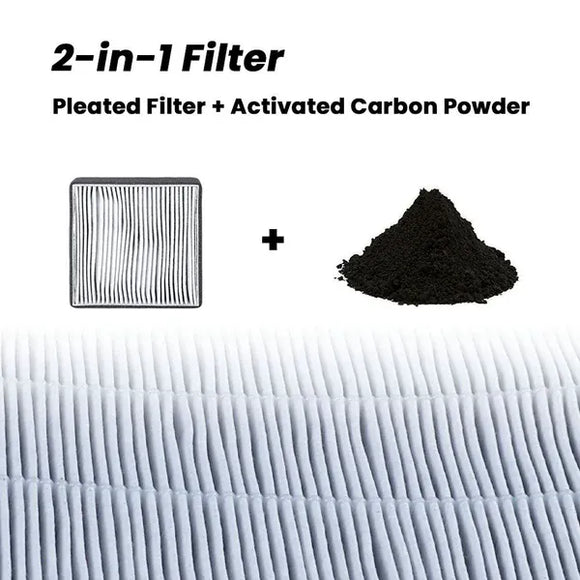

Built-In Air Purification
The integrated purification system helps manage fumes generated during the DTF curing process.

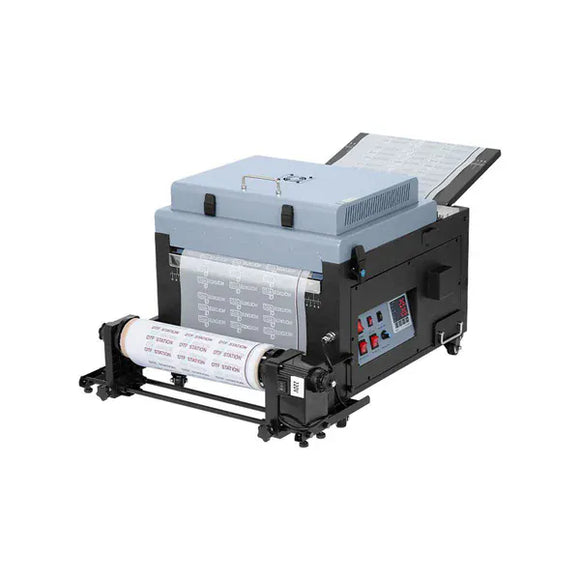

Powered Film Take-Up
Collect cured transfer film onto a roll for cleaner handling and a more organized roll-to-roll workflow.
Designed for A3 and A4 DTF Production
The Miro 13 Max supports DTF film up to 13.78 inches wide, making it a practical fit for apparel decorators, transfer producers, small businesses, and growing print shops operating compatible A3 or A4 printers.
Its compact design provides the benefits of an automated shaker and dryer without requiring the floor space or electrical service associated with many larger production systems.
| Production Need | How the Miro 13 Max Helps |
|---|---|
| Reduce manual handling | Combines powdering, curing, purification, and film collection into one workflow. |
| Improve repeatability | Adjustable controls allow operators to establish consistent production settings for their materials. |
| Support roll production | The powered take-up system collects cured film for cleaner and more organized output. |
| Fit a smaller workspace | Provides an automated A3 finishing workflow in a machine measuring approximately 24 inches wide. |
| Use standard U.S. voltage | The U.S. model operates at 110V, 1170W, and 10.6A. |

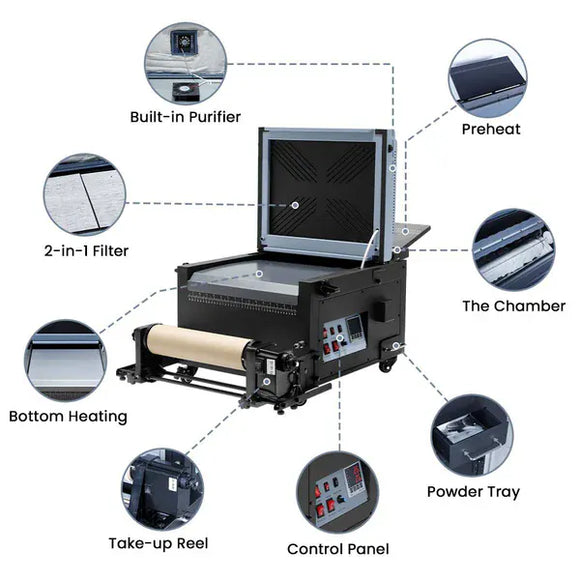

Built for Smooth Film Feeding and Consistent Curing

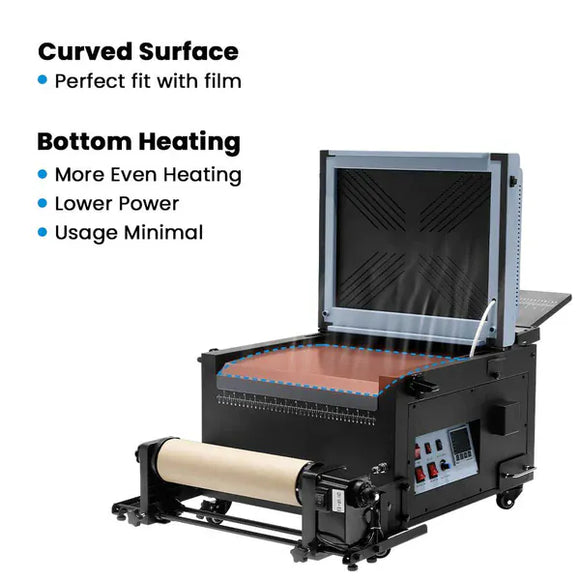

The Miro 13 Max uses bottom and curved heating platens to support smooth film travel and controlled heat exposure across the printed transfer.

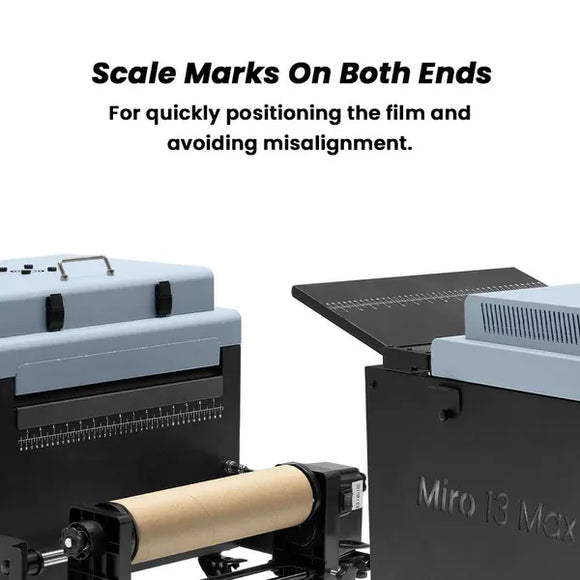

Alignment markings provide a visual reference when loading film, helping operators keep the media positioned correctly as it enters the powdering and curing workflow.
- Bottom heating platen: Supplies heat beneath the transfer film during curing.
- Curved heating platen: Helps guide the film smoothly through the heating area.
- Adjustable heating controls: Allow preheating and main-heating settings to be adapted to the film, ink, powder, speed, and shop environment.
- Media alignment guides: Help operators load and feed film more accurately.
- Adjustable shaker operation: Helps refine powder distribution for the selected production materials.
Production note:
Temperature, powder, and feed settings should be tested with the actual printer, film, ink, and hot-melt powder being used. Factory settings are starting points and may require adjustment.

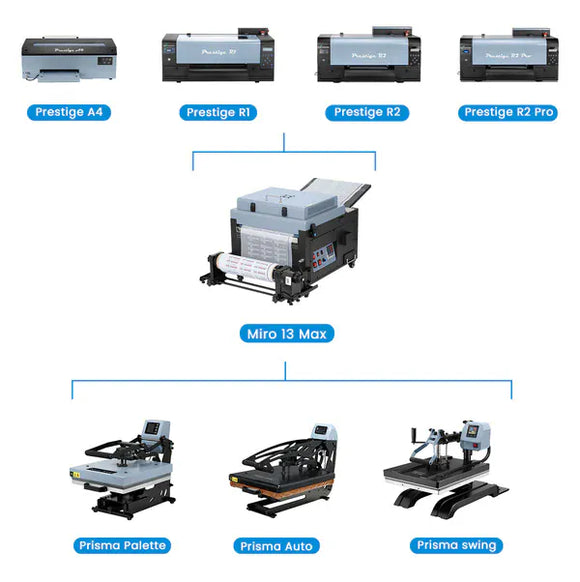

Compatible DTF Printers
The Miro 13 Max is designed for compatible DTF printers using film up to 13.78 inches wide, including:
- DTF Station Prestige A4
- DTF Station Prestige R1
- DTF Station Prestige R2
- DTF Station Prestige R2 Pro
- Other compatible A3 and A4 DTF printers within the supported film width
Before ordering, confirm the printer's media width, film exit height, film path, available workspace, and production configuration. Matching the media width alone does not guarantee that every printer can be physically aligned without additional tables or workspace adjustments.

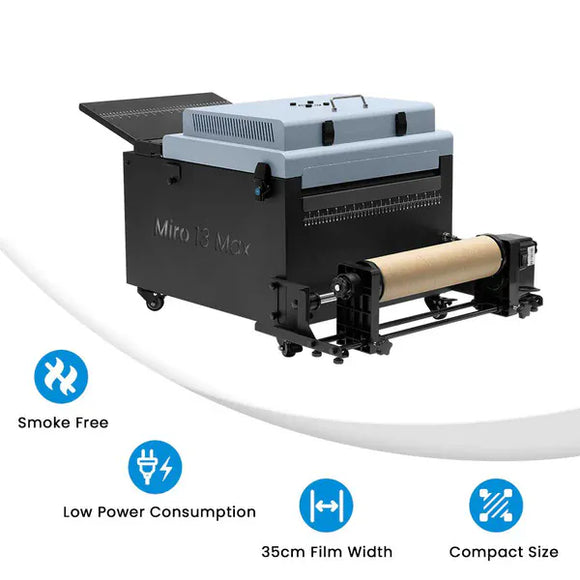

Compact Size, Standard 110V Operation
The Miro 13 Max is designed to integrate into a small or growing production environment more easily than a larger industrial powder shaker and dryer.
| Maximum film width | 13.78 inches / 35 cm |
|---|---|
| Power requirements | 110V / 1170W / 10.6A |

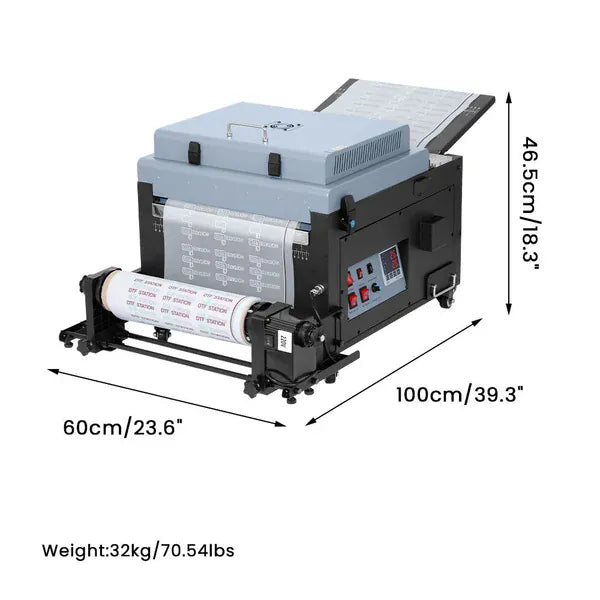

| Approximate dimensions | 24"W x 40"D x 19"H |
| Approximate product weight | 70 lb |
| Primary functions | Powdering, curing, air purification, and film take-up |
Electrical planning:
Confirm that the intended outlet and circuit can safely support the machine's electrical load. Avoid operating other high-draw equipment on the same circuit. Consult a qualified electrician when there is uncertainty about site readiness.
Operation, Maintenance, and Support Resources
Proper setup and routine maintenance are important for reliable powder movement, effective purification, smooth film handling, and consistent curing results.
The operation manual includes safety guidance, control-panel instructions, film loading, take-up installation, temperature settings, routine maintenance, and troubleshooting information.
Recommended Routine Maintenance
- Inspect powder levels regularly during production.
- Replenish powder as needed to maintain continuous operation.
- Inspect and replace purification filters according to the maintenance schedule.
- Keep the powdering, heating, and film-path areas clean.
- Check the take-up brackets, rods, and motor before production.
- Follow all procedures provided in the operation manual.
The operation manual recommends checking and adding powder approximately every hour during use and replacing the purification filter approximately once per month. Maintenance frequency may vary based on production volume and operating conditions.
One-Year Limited Parts Warranty
The Miro 13 Max includes a one-year limited parts warranty for eligible non-consumable components under the current warranty terms.
Coverage activates automatically when the equipment is physically shipped. Product registration is strongly recommended to support ownership verification, technical support, product updates, and future warranty claims.
Warranty eligibility is subject to proper installation, approved consumables, required maintenance, suitable electrical service, and the complete terms of the warranty agreement.
Read the complete powder shaker and dryer warranty policy before operating or servicing the equipment.
Important DTF Powder and Curing Safety
Always follow appropriate DTF production safety procedures.
- Do not inhale or ingest DTF hot-melt powder or curing fumes.
- Wear suitable gloves, protective clothing, eye protection, and respiratory protection when handling powder.
- Operate the machine in an appropriate production environment with adequate ventilation.
- Keep children and untrained personnel away from operating equipment.
- Do not leave the machine unattended while connected and operating.
- Do not operate equipment with a damaged cord or electrical component.
- Read the complete operation manual before installation or use.
Frequently Asked Questions
What does the Miro 13 Max do?
The Miro 13 Max applies hot-melt powder, cures printed DTF film, helps manage curing fumes, and collects the finished film using a powered take-up system.
What is the maximum supported film width?
The machine supports DTF film up to 13.78 inches, or 35 centimeters, wide.
Does the Miro 13 Max require 220V power?
No. The U.S. model operates on 110V power and is rated at 1170W and 10.6A. The intended outlet and circuit should still be verified before installation.
Does the machine include built-in air purification?
Yes. The Miro 13 Max includes an integrated purification system that helps manage fumes produced during curing. Appropriate workspace ventilation and personal protective equipment are still recommended.
Does it collect the cured transfer film?
Yes. The powered take-up system collects the cured film onto a reel for a cleaner and more organized roll-to-roll workflow.
Which DTF printers are compatible?
The Miro 13 Max is compatible with the Prestige A4, R1, R2, R2 Pro, and other suitable DTF printers using film up to 13.78 inches wide. Confirm the complete physical setup before purchasing.
How often should the purification filter be replaced?
The operation manual recommends replacement approximately once per month. High-volume production or demanding operating conditions may require more frequent inspection or replacement.
Is training required to activate the warranty?
On-site training is not required to activate the general warranty for an individual Miro 13 Max purchase. Product registration is strongly recommended, and complete warranty terms apply.
Build a Faster, More Consistent A3 DTF Workflow
The Miro 13 Max gives growing DTF shops a practical way to move from manual powdering and curing to a more automated production process.
With A3 media support, integrated purification, adjustable heating, alignment guides, powered film take-up, and standard 110V operation, it brings the essential finishing steps together in one compact machine.
Add the Miro 13 Max to your production setup and spend less time manually handling each transfer.
