Automatic Conveyor Feeder for xTool P2 / P2S
The Automatic Conveyor Feeder transforms the xTool P2 into a long-format, production-ready laser system. By automating material feeding and engraving path alignment, it allows you to engrave and cut extra-long materials with consistent accuracy—without manual repositioning.
Up to 118” Processing Length Engrave long materials in one continuous workflow.
Automatic Feeding Eliminates manual repositioning and alignment drift.
Batch-Ready Ideal for repeat production and long-run jobs.
Requires Riser Base for Operation
The Automatic Conveyor Feeder must be used together with the xTool P2 Riser Base. The riser base provides the necessary clearance and enclosure support for safe and accurate long-material processing.
Important: The conveyor feeder cannot be used independently. A compatible riser base is required for installation and operation.
Supersized Processing Area for Long Creations
With conveyor rails configured, the maximum processing area expands up to 118” × 19.6”, making it possible to engrave signage, panels, and elongated designs that exceed the standard bed size.

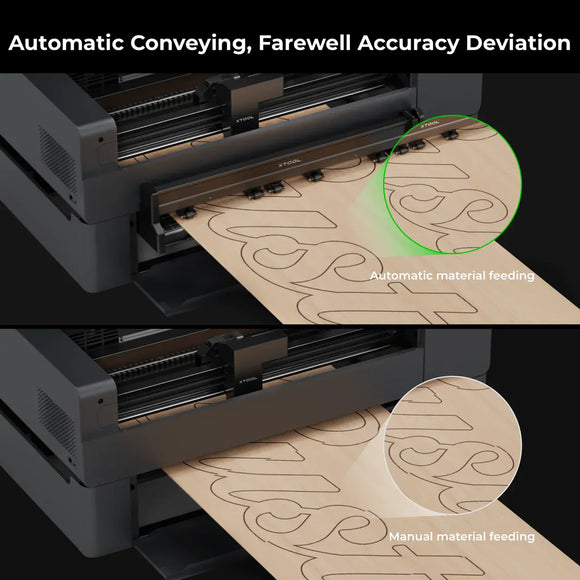

Automatic Conveying for Consistent Accuracy
Automatic engraving path planning and synchronized material movement help maintain alignment throughout the job. This reduces cumulative positioning errors commonly introduced by manual feeding.
Note: During processing, there may be a deviation of less than 2mm per 1000mm of conveying.
Expanded Material Compatibility
The conveyor feeder supports both rigid boards and flexible materials, expanding beyond standard plywood and acrylic to include felt, cork, EVA, and similar substrates.
Soft materials may require PET tape backing for optimal conveying stability.

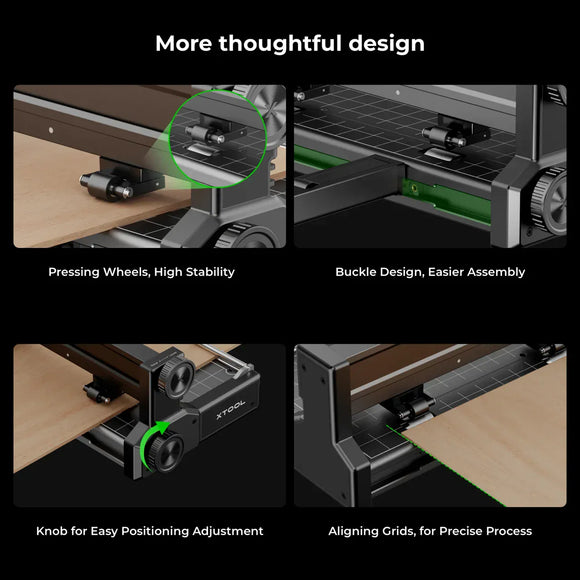

Designed for Stability and Ease of Use

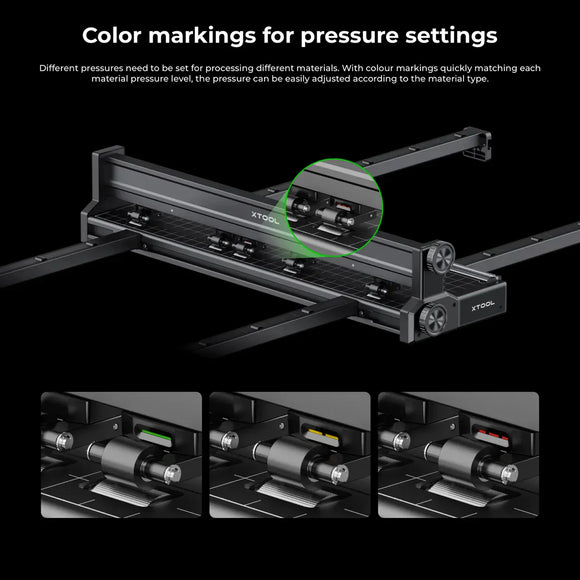

Anti-slip pressing wheels, buckle-style rail assembly, and color-coded pressure markings allow quick adjustment for different materials. A lower adjustment knob enables precise material positioning before engraving begins.
Technical Specifications
| Compatible Machine | xTool P2 / P2S |
|---|---|
| Maximum Processing Area | 118” × 19.6” (3000 × 500mm) |
| Maximum Material Width | 24.5” (624mm) |
| Minimum Material Width | 2.5” (65mm) |
| Maximum Material Thickness | 0.55” (14mm) |
| Maximum Speed | 160mm/s |
| Product Weight | 8.045kg |

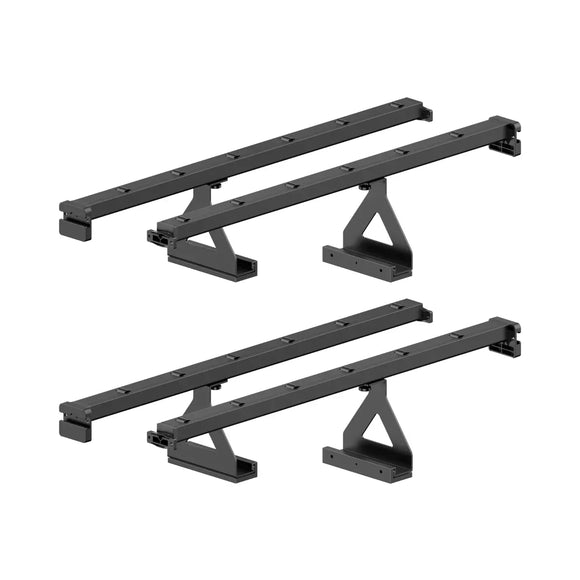

Conveyor Rail Length Options
| Rail Configuration | Supported Hard Material Length | Supported Processing Length |
|---|---|---|

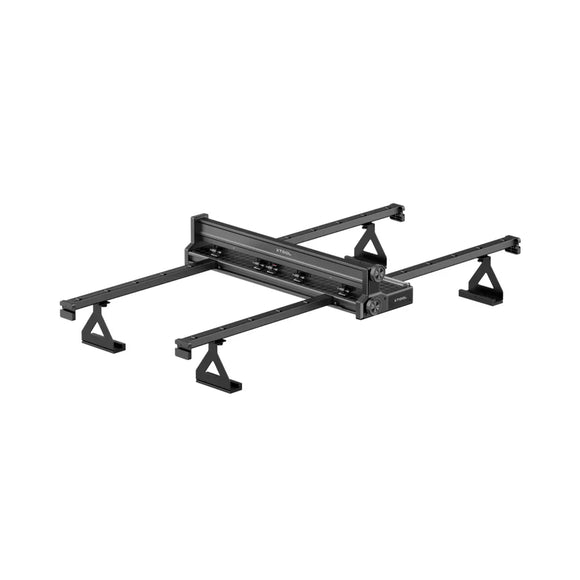

| Basic (2 pairs) | 39” (1m) | 34” (0.85m) |
| Basic + 1 Add-On Kit | 64.5” (1.64m) | 58.6” (1.49m) |

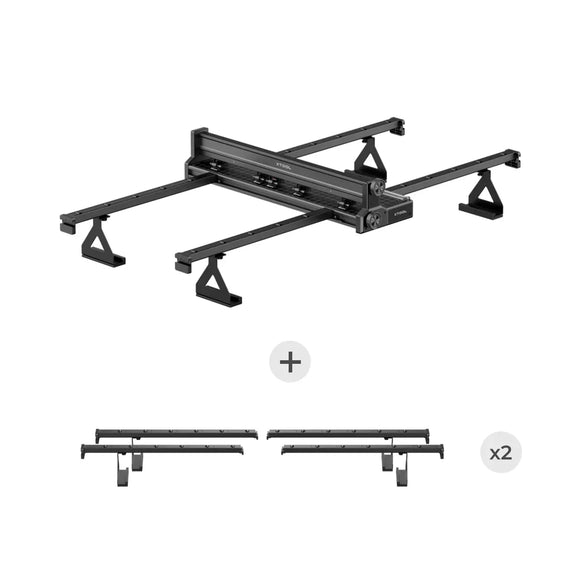

| Basic + 2 Add-On Kits | 90” (2.3m) | 84.6” (2.15m) |
| Basic + 3 Add-On Kits | 118” (3m) | 112.2” (2.85m) |
