xTool P3 Replacement Laser Window

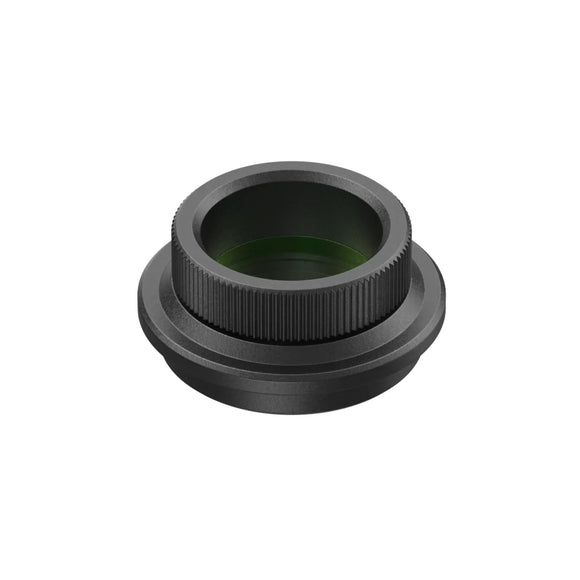

Laser Window for xTool P3

The laser window (also referred to as the window lens) in the xTool P3 is a critical optical component that helps protect the internal optics and ensures optimal laser transmission. Proper maintenance of the window lens is essential for consistent performance and to prevent power loss due to contamination or oxidation.

Maintenance and Cleaning

• Frequency:

  • Check and clean the window lens daily.
  • For high-power or continuous use, clean every 4 hours to maintain optimal performance.

• Tools Required:

  • Optical lens cleaner (e.g., high-concentration alcohol, isopropyl alcohol)
  • Microfiber or optical lens cleaning cloth
  • Air blower
  • Rubber gloves
  • Phillips screwdriver

• Cautions:

  • Alcohols are flammable—keep away from heat and open flames.
  • Store cleaning agents safely and out of reach of children.
  • Place the lens on a clean cloth during maintenance to avoid scratches.
  • If the window lens is severely oxidized or damaged, replace it.
  • Always check the optical path after cleaning.

Cleaning Procedure

1. Power off the xTool P3 and unplug it.
2. Remove the necessary covers to access the window lens.
3. Use an air blower to remove loose dust.
4. Dampen a microfiber cloth with optical lens cleaner.
5. Gently wipe the window lens to remove contaminants.
6. Allow the lens to dry completely before reassembly.
7. Reinstall the lens and covers.
8. Check the optical path for proper alignment.

For a detailed visual guide, refer to the official cleaning tutorial:
How to Clean Focus Lens, Window Lens, and Laser Mirror of xTool P3

When to Replace

• If the window lens is severely oxidized or damaged, it must be replaced to restore laser performance.

Additional Resources

• For troubleshooting issues related to no laser output, including window lens inspection, see:
  Troubleshoot No Laser Output for xTool P3

Reference:

• How to Clean Focus Lens, Window Lens, and Laser Mirror of xTool P3
