xTool P3 Mobile Work Stand for xTool P3 Laser Cutter

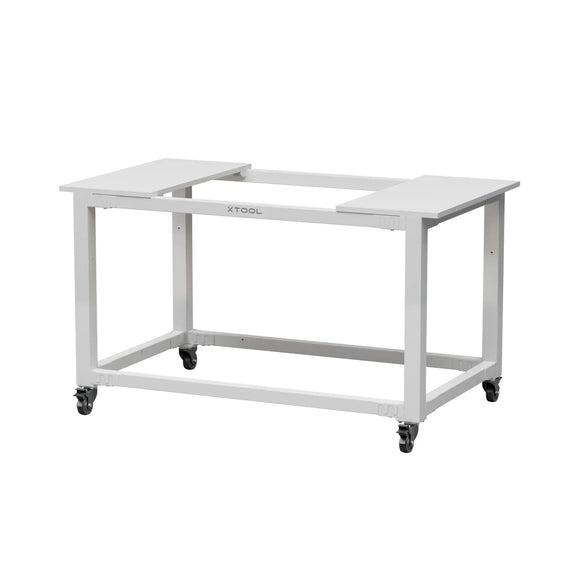

The xTool P3 Mobile Work Stand is a dedicated support platform specifically designed for the xTool P3 laser machine. It provides a stable, mobile, and ergonomic workspace tailored to the dimensions and operational needs of the xTool P3. The stand is constructed with hand-welded beams, powder-coated for durability, and features a hollow middle section to facilitate heat dissipation and ease of transport.

Key Features

• Custom Fit for xTool P3: The stand is sized to perfectly accommodate the xTool P3, ensuring optimal stability and safety during operation. Other machines can be placed on it, but the fit may not be exact.

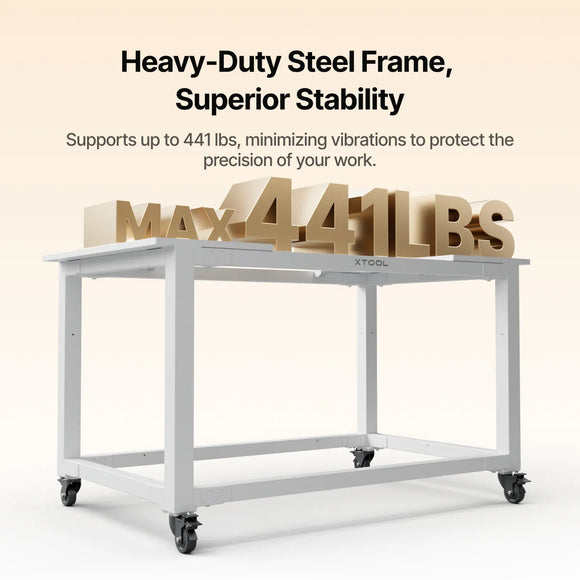

• High Load Capacity: The stand supports up to 200 kg, making it suitable for heavy equipment and materials.

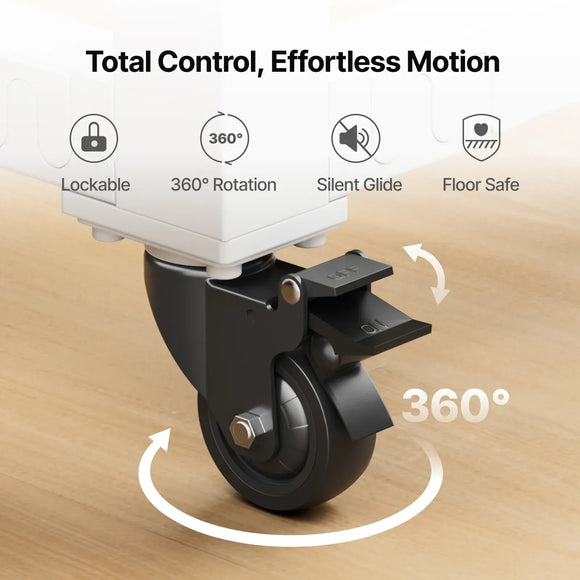

• Lockable Caster Wheels: All four caster wheels are equipped with a locking function to prevent unwanted movement during use.
• Hollow Middle Design: The open center aids in heat dissipation from the P3’s water cooling unit and baseplate, and also makes the stand easier to move.
• Durable Construction: All beams are hand-welded, sanded, and powder-coated. Minor cosmetic imperfections at weld seams are normal and do not affect performance.

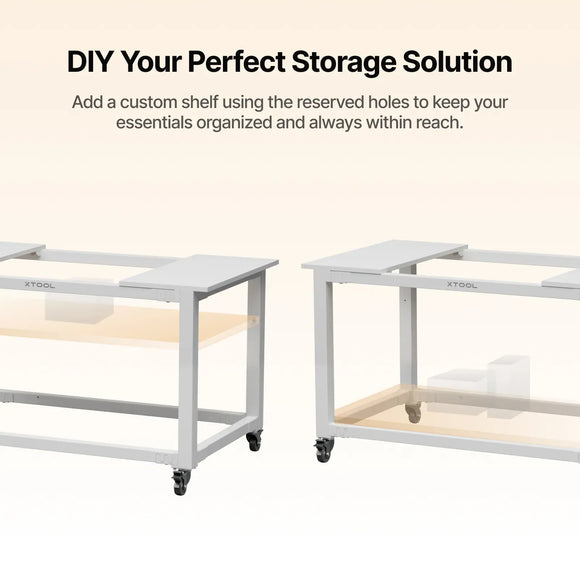

• Flexible Storage: Optional boards can be installed on the middle or bottom layers for storing processing materials. Recommended board sizes are provided for custom installation.
• Assembly Tools Included: The package contains all necessary parts and tools, including screws, brackets, a Phillips screwdriver, and a hex key.
• Safety Precautions: The stand should not be moved on slopes or uneven surfaces, and must be kept in a dry environment to prevent rust.

Specifications

• Tabletop Dimensions: 1250 mm × 700 mm × 715 mm
• Middle Space Dimensions: 610 mm × 700 mm
• Recommended Board Sizes for Storage:
  • Middle Layer: 590 mm × 1140 mm × 12 mm or 690 mm × 1040 mm × 12 mm
  • Bottom Layer: 590 mm × 1140 mm × 12 mm or 690 mm × 1040 mm × 12 mm

Applications

• Laser Processing: Provides a stable and mobile base for the xTool P3, supporting all types of laser engraving and cutting operations.
• Material Storage: The optional shelves allow for convenient storage of processing materials, tools, or accessories.

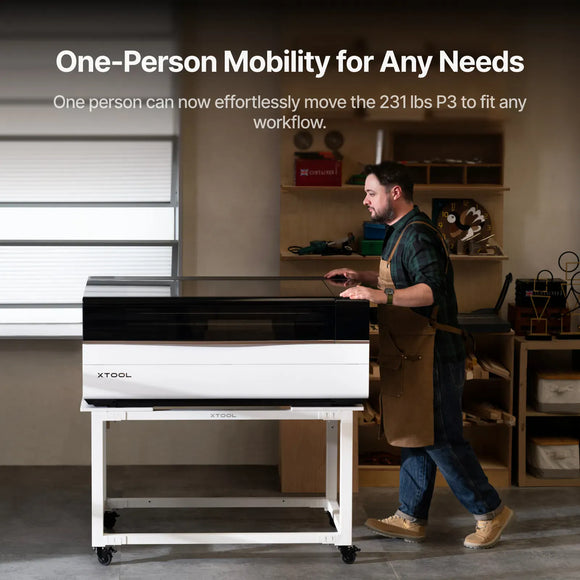

• Workshop Mobility: The stand’s wheels and robust construction make it easy to move the xTool P3 around a workshop or studio, and then lock it securely in place for use.
• Heat Management: The hollow design ensures that heat generated during laser operation is dissipated efficiently, protecting both the machine and the work environment.

Assembly Overview

1. Unbox and Check Parts: Ensure all components are present. Contact support if anything is missing or damaged.
2. Assemble Frame: Position columns and attach beams (A, B, C) as illustrated in the user guide.
3. Secure Beams: Use the provided screws and tools to fasten all beams.
4. Install Brackets and Boards: Add board brackets and optional boards for storage.
5. Attach Caster Wheels: Secure the wheels and rotate the stand upright.
6. Lock Wheels: Step on all four brake pedals to lock the stand in place before use.
7. Place xTool P3: Carefully position the machine on the stand.

For detailed assembly instructions and images, refer to the xTool P3 Mobile Work Stand User Guide.

Additional Information

• Cosmetic Defects: Minor scuffs or pits at weld seams are normal due to hand welding and do not affect function or stability.
• Tight Slots: If plug-in slots are too tight, gently tap them with a rubber mallet.
• Safety: Do not use or store the stand in humid environments, and avoid moving it on uneven surfaces.

Resources

• xTool P3 Mobile Work Stand User Guide (with images and multi-language PDFs)
• FAQs on xTool P3 Mobile Work Stand
