Riser Base for xTool P2 (P Series)
The xTool P2 Riser Base increases usable engraving height and expands your P2’s capability for thicker objects, rotary engraving, and larger-material workflows. It’s designed to raise the machine while keeping the workspace enclosed to help reduce light and smoke leakage during standard operation.
More Engraving Height Support thicker objects and taller setups.
Rotary Clearance Enables practical rotary engraving sizes.
Enclosed Design Built to help minimize light/smoke leakage in normal use.
Quick Install Preview
The riser base is designed for a clean fit under the xTool P2. Hover (desktop) or tap (mobile) to play the short installation preview.
Hover or tap to play
Significant Upgrade on Engraving Thickness
If you’ve hit the xTool P2 height limit for thicker items, the riser base expands your usable workpiece height—ideal for taller materials, fixtures, and rotary setups.
Max workpiece height:
With tray: 8.1" (208mm)
Without tray: 8.4" (215mm)
With tray: 8.1" (208mm)
Without tray: 8.4" (215mm)

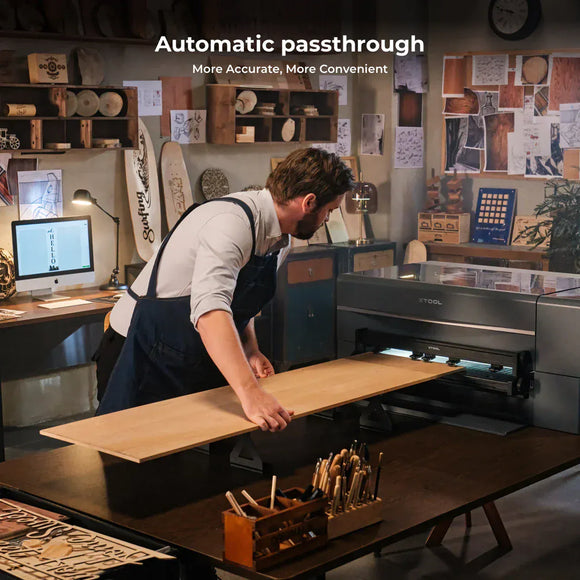

Passthrough Capability for Longer Materials
The riser base is designed to support passthrough-style workflows for extra-large materials when used with compatible feeding setups. This helps with precision alignment for longer panels and extended designs.
Note: Passthrough capability depends on your machine configuration and supported accessories. Follow recommended setup guidance for safe operation.

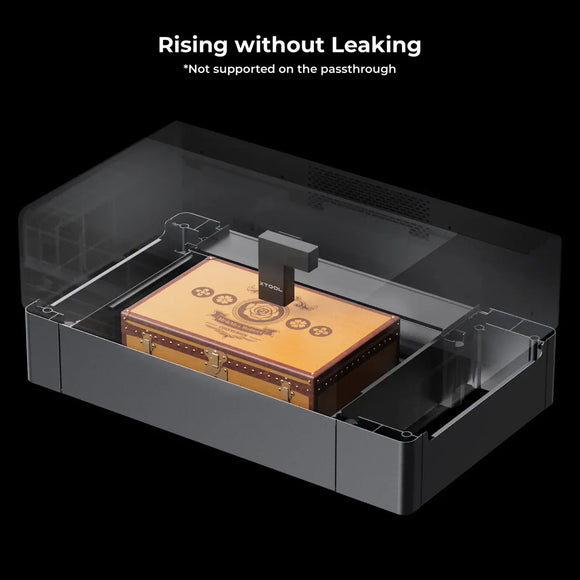

Raising Without Leaking
While raising the machine for higher object engraving and cutting, the riser base is designed to help keep the workspace enclosed—reducing light and smoke leakage during standard enclosed operation.

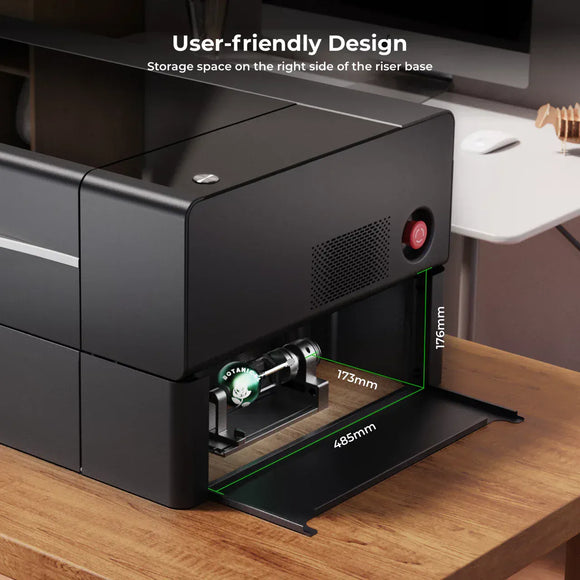

User-Friendly Design with Storage Space
The riser base includes side storage space so you can keep removed screws, slats, or rotary accessories organized and ready for quick changes between flat cutting and rotary engraving workflows.
Technical Specifications
| Product | xTool P2 Riser Base |
|---|---|
| Applicable To | xTool P2 |
| Package Size | 32.3" × 13.5" × 10.6" (820mm × 345mm × 270mm) |
| Product Size | 39.3" × 23.2" × 6.8" (1000mm × 590mm × 175mm) |
| Product Weight | 11 kg |
| Working Space | 25.2" × 13" (640 × 330mm) |
| Processing Area | 23.6" × 12.1" (500 × 250mm) |
| Max Workpiece Height | With tray: 8.1" (208mm) Without tray: 8.4" (215mm) |
| Max Passthrough Width | 25.2" (640mm) |
| Max Passthrough Height | 4.5" (115mm) |
| Rotary Engraving Diameter | Roller: 0.1"–7.1" (3–180mm) Chuck: 0–3.9" (0–100mm) |
