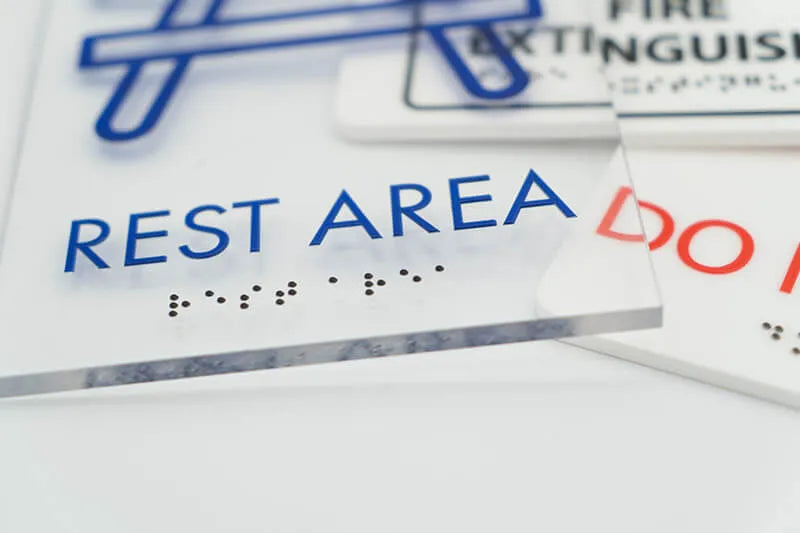

How Roland DG UV Flatbed Printers Make Accessible Braille Signage Possible

Did you know that Roland DG’s UV flatbed printers can print fully compliant Braille? This innovative capability allows sign makers to convert text into a tactile format readable by touch, making wayfinding and informational signage more accessible for people who are blind or visually impaired.

In this article, we break down how UV-printed Braille works and outline basic workflow.

Why Braille Signage Matters

In public spaces across the U.S., Braille signage is required for identifying permanent rooms and spaces—such as restrooms, elevators, exits, and room numbers—and is also widely used for directional and informational signs.

Creating Braille that is both durable and ADA-compliant typically requires specialized equipment. Roland DG’s UV flatbed technology makes this easier and more efficient than ever.

Types of Braille Signage

Braille isn’t one-size-fits-all. There are multiple grades used depending on the application:

• Grade 1 – Uncontracted Braille
  A letter-for-letter translation commonly used for standard signage.

• Grade 2 – Contracted Braille
  Uses contractions and shortened words, requiring translation software.

• Grade 3 – Advanced Braille
  Includes abbreviations and shortcuts for faster reading, typically used for personal writing rather than signage.

Local and state regulations may vary, so it’s essential to verify the requirements for Braille size, spacing, and layout when producing signage.

What Makes Braille Production Different?

To be considered compliant and readable, Braille dots must be raised between 0.025–0.038 inches (approximately 1/32”) and must feature a smooth, domed top.

While some printers can create raised textures, only Roland DG’s UV flatbed devices can shape the rounded dots required for true Braille, thanks to their precise layering and gloss ink capabilities.

Roland DG Devices That Can Produce Braille

Roland DG offers several UV flatbed solutions capable of producing ADA-compliant Braille:

• VersaSTUDIO BD Series – Desktop UV flatbeds equipped with gloss ink

• VersaOBJECT MO Series – Benchtop UV flatbed printers

• VersaOBJECT CO-i Series – Wide-format UV flatbeds for larger applications

For best results, Roland recommends VBOND high-build ink, which offers excellent adhesion on flat substrates, achieves regulation Braille height in only 7–8 passes, and is Calif Prop 65 certified.

The UV-Printed Braille Workflow

Roland DGA provides detailed guides and video tutorials, but the basic workflow is straightforward:

1. Prepare your artwork in Adobe Illustrator

2. Set your printer’s media height to ensure accurate dot formation

3. Load your file into VersaWorks

4. Configure print settings for thickness and gloss layers

5. Print using Grouped Jobs to build the Braille dots to regulation height

This process allows sign makers to create consistent, durable, and compliant Braille signage on materials like acrylic, metal, plastics, and more.

Learn More About Braille Printing With Roland DG

If you’re interested in expanding into tactile or ADA-compliant signage, Roland DGA offers extensive training and video guides through Roland TV.

Looking for a Roland dealer or want help choosing the right UV printer for Braille? Our team at GPI Supplies is here to help you find the perfect solution.
