DTG Kiosk Banding problems
customer
REASONS AND SOLUTIONS: 1. Vertical gaps is either a dirty encoder strip or a damaged encoder strip **Clean or replace encoder strip. Prevention: Follow suggested maintenance routine. 2. Horizontal gaps is a misaligned encoder wheel sensor **Call support for help to determine if it can be repaired or if it needs replacing. Reasons for Banding on the DTG REASONS AND SOLUTIONS: 1. Print head is not primed **Run several head cleanings using the Ink button on the control panel. 2. Print head jets are clogged **Flush the inks with distilled water thoroughly. Flush the lines with cleaning solution to remove most of the residue. Run head cleanings from the control panel with cleaning solution in the print head just like ink. Let cleaning solution soak in the print head for a few hours and run a few more head cleanings with the Ink button on the control panel. Flush cleaning solution and refill the system with ink. Print a nozzle check or a test image to see if the jets are unclogged. **Replace print head. Prevention: Run head cleanings on days that the printer is not printing. For periods longer then a week, flush ink out of system using distilled water. Run cleaning solution through the system and leave the cleaning solution in the system until you need to print again. 3. Damper is clogged **Replace damper Prevention: Run head cleanings on days that the printer is not printing. For periods longer then a week, flush ink out of system using distilled water. Run cleaning solution through the system and leave the cleaning solution in the system until you need to print again. 4. Damper has a hole **Replace damper 5. Capping station needs cleaning **Use the syringe to apply window cleaner on the capping pad. Push the Ink Fill button to draw the window cleaner through the Waste Ink system. **Clean the rubber rim around the capping pad to remove any strands of dry ink that could interfere with the capping station forming a seal with the print head. Prevention: Follow suggested maintenance routine. 6. Blocked breather holes on ink bottle caps **Make sure the small holes on the caps are not blocked or clogged. Clear anything that is blocking the hole. Make sure no debris falls into the ink. Prevention: Follow suggested maintenance routine. 7. Printer needs a head alignment **Run a head alignment from the maintenance section of the Epson Stylus Photo 2200 driver. Head alignment can not be run with white ink in the system. It must have seven colors.
AnaJet Saving as RGB vs CMYK
customer
Against LOGIC - lol - Designs need to be saved in RGB from whatever graphics program you are using. The EK Print Studio will convert the designs to CMYK properly. For some reason the Anajet won't print properly with a CMYK design. Here are some examples of what a design...
Cleaning Encoder Strip on Anajet Sprint
customer
Cleaning the AnaJet encoder strip The Encoder Strip is located above the rounded chrome-colored Carriage Bar. The Encoder Strip is read by an optical sensor at the back of the Printhead Carriage. This is how the printer detects the printhead’s position. If ink or other debris sticks to the...
AnaJet Sprint Ink Charge Utility
customer
Anajet Sprint Utility ink Charge The Ink Charge is the fastest way to get ink into and out of your printer. It is a tool that should be used when filling the printer with ink, or flushing out the ink lines with Locate the AnaJet SPRINT Utility located on your...
Flushing the ink on the Anajet Sprint
customer
Using the Pump to Flush the Ink System on a Epson R1900 Garment Printer like the Anajet Sprint, FP125 or MelcoJet Flushing ink out the printer is something that should be done approximately once per month as routinemaintenance. This is the same procedure to follow when you will be...
Releasing the Anajet Print Head Carriage
customer
Press the POWER button from controlpanel to power down the print engine. Press DOWN ARROW & ENTER simultaneously to release Print Carriage, slide the Print Carriage to the left. Press DOWN ARROW & ENTER simultaneously again to raise the wiper blade to...
Cleaning the Encoder Strip on a Fast T-Jet Garment Printer
Dean Armando
Cleaning the Encoder Strip on a Fast T-Jet Garment Printer Learn how to clean the encoder strip on the Fast TJet Garment Printer. If you need to buy an Encoder Strip you can look at our selection of garment printer encoder strips.

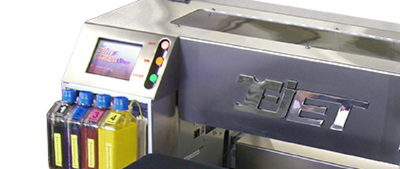

Replacing the Print Head on a T-Jet Blazer
customer
Learn how to Replace the Print Head on a T-Jet Blazer. Buy Ink for you Fast T-Jet Blazer.
DTG VIPER Replacing the Dampers on Epson 4880 Garment Printer
customer
Replacing the Dampers on Epson 4880 Garment Printer, like the DTG Viper, Neofles, Melco G2, Freejet and many others. This Video will help you do this repair yourself and save you money.....and best of all, get you printing again.
Replacing the Ink Tubes on your Anajet Sprint
customer
To replace Ink Tubes, follow these steps. If you are replacing Ink Tubes 1-4 you will need to remove the Ink Bay. If you are replacing Ink Tubes 5-8 only, you can skip the Ink Bay removal. 1. Power down the printer. 2. Remove all ink cartridges from the Ink...
Anajet Damper Replacement Epson R1900
customer
Epson R1900 Garment Printer Damper Replacement for Anajet Sprint, DTG HM1 and more To minimize pressure surges in the Print Head when the Print Head Carriage moves from side to side, a device called a Damper is utilized. The Damper also filters the ink before it enters the Print Head....
Replacing the Wiper Blade on Anajet Epson R1900
customer
Maintenance of the Anajet Wiper Blade is essential for your printer to run properly. The function of the Wiper Blade is to clean the Print Head Nozzle Plate. A Nozzle Plate that is dirty or has not been cleaned properly will lead to clogged nozzles and a damaged Print...
Cleaning Maintenance Station and Print Head on Anajet
customer
Cleaning Maintenance Station and Print Head on an Epson R1900 Garment Printer like the Anajet Sprint Clean Highlighted Areas Avoid touching the print head nozzle plate and Clean only edges of print head 1 -...
Basic Anajet Sprint Maintenance
customer
The Environment for the Printer. Room Temperature Must keep printer above 61°F (16˚C) to 90°F (40˚C) Humidity Critical to the printer’s Operation Must keep above 45% RH MINIMUM! The Higher the humidity, the better. •Control environment using a non- condensing, non-misting humidifier Heat press Must be placed...
Replacing the Print Head on Brother GT 541
customer
Replacing the Print Head on the Brother GT541 Garment Printer 6-1-2. Replacing the Print Heads The Print Head can be replaced for every color. The following procedure is for replacing the Black Print Head. The procedure is the same for other colors. (1) Make sure GT-541 is not in middle...
Print Head Nozzle Check on Brother GT541
customer
Learn how to clean the Print Head with Nozzle Checks on the Brother GT-541 Garment Printer (1) Check the printed pattern to identify which Print Head has the problem. If there is stripes (arrow 1) or line breaks (arrow 2), the Print Head of the color (in...
